Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2RV-1-S-AP DC11RELAY GEN PURPOSE SPDT 50MA 12V |
3,080 |
|
Datasheet | G2RV | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 27.2 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | General Purpose | - | - |
|
G2RV-1-S-AP DC21RELAY GEN PURPOSE SPDT 50MA 24V |
1,453 |
|
Datasheet | G2RV | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 13.3 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | General Purpose | - | - |
|
G2RV-1-S-AP DC48RELAY GEN PURPOSE SPDT 50MA 48V |
1,023 |
|
Datasheet | G2RV | Bulk | Obsolete | Socketable | 48VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 5.2 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | General Purpose | - | - |
|

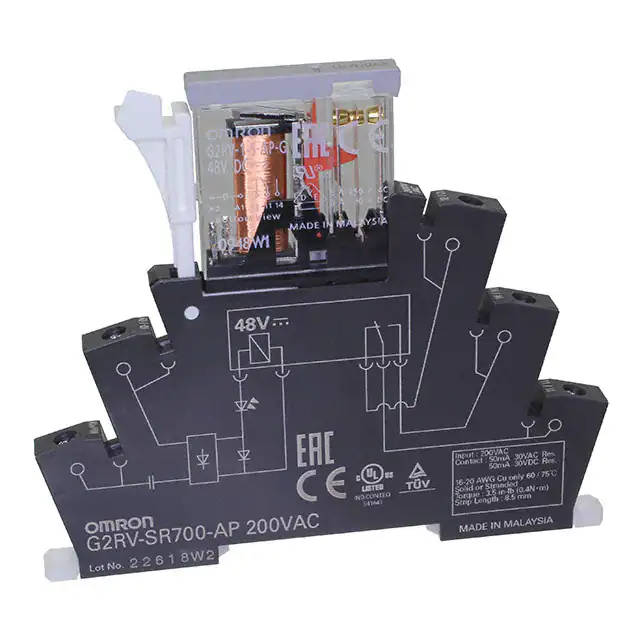

G2RV-SR700-AP AC200RELAY GEN PURP SPDT 50MA 200V |
2,561 |
|
Datasheet | G2RV-SR | Bulk | Obsolete | DIN Rail | 200VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 4.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 160 VAC | 20 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

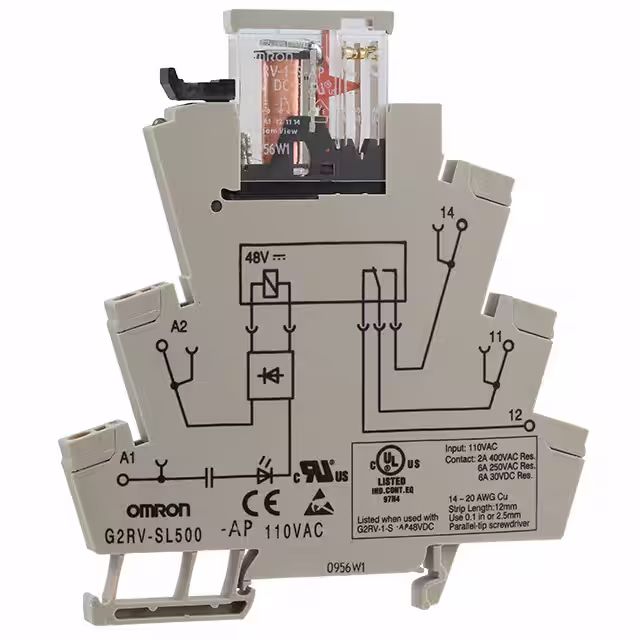

G2RV-SL500-AP AC110RELAY GEN PURP SPDT 50MA 110V |
3,174 |
|
Datasheet | G2RV | Bulk | Obsolete | DIN Rail | 110VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 7.1 mA | Non Latching | Socket Included | Spring Terminal | - | - | 88 VAC | 11 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | General Purpose | - | - |
|
|
G2RV-SL500-AP AC230RELAY GEN PURP SPDT 50MA 230V |
2,257 |
|
Datasheet | G2RV | Bulk | Obsolete | DIN Rail | 230VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 7.3 mA | Non Latching | Socket Included | Spring Terminal | - | - | 184 VAC | 23 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | General Purpose | - | - |
|
|
G2RV-ST500-AP AC/DC24RELAY GEN PURPOSE SPDT 50MA 24V |
2,803 |
|
Datasheet | G2RV-ST | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 14.9 mA | Non Latching | Socket Included | Spring Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
G2RV-SR500-AP AC/DC24RELAY GEN PURPOSE SPDT 50MA 24V |
1,843 |
|
Datasheet | G2RV-SR | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 12.6 mA | Non Latching | Socket Included | Spring Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G2RV-ST500-AP DC24RELAY GEN PURPOSE SPDT 50MA 24V |
4,082 |
|
Datasheet | G2RV-ST | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 13.5 mA | Non Latching | Socket Included | Spring Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
G2RV-ST500-AP DC12RELAY GEN PURPOSE SPDT 50MA 12V |
1,048 |
|
Datasheet | G2RV-ST | Box | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 27.9 mA | Non Latching | Socket Included | Spring Terminal | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
