Selector Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Number of Positions | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Mounting Type | Termination Style | Panel Cutout Dimensions | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3069711SWITCH SELECT 3POS SPDT 20A 300V |
3,670 |
|
Datasheet | - | Bulk | Obsolete | Standard | SPDT | 3 | On-Off-On | 20A (AC) | 300 V | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 15.00mm Dia | - | Marking: 1-0-2 | -35°C ~ 55°C |
|
3069712SWITCH SELECT 3POS SPDT 20A 300V |
2,583 |
|
Datasheet | - | Bulk | Obsolete | Standard | SPDT | 3 | On-Off-On | 20A (AC) | 300 V | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 15.00mm Dia | - | Marking: 1-0-2 | -35°C ~ 55°C |
|
|
3069715SWITCH SELECT 2POS SPDT 20A 300V |
4,907 |
|
Datasheet | - | Bulk | Obsolete | Standard | SPDT | 2 | On-On | 20A (AC) | 300 V | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 15.00mm Dia | - | Marking: 1-0-2 | -35°C ~ 55°C |
|
|
3069717SWITCH SELECT 3POS SPDT 20A 300V |
3,786 |
|
Datasheet | - | Bulk | Obsolete | Standard | SPDT | 3 | Off-On-On | 20A (AC) | 300 V | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 15.00mm Dia | - | Marking: 0-1-2 | -35°C ~ 55°C |
|
3069716SWITCH SELECT 4POS SP3T 20A 300V |
3,209 |
|
Datasheet | - | Bulk | Obsolete | Standard | SP3T | 4 | Off-On-On-On | 20A (AC) | 300 V | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 15.00mm Dia | - | Marking: 0-1-2-3 | -35°C ~ 55°C |
|

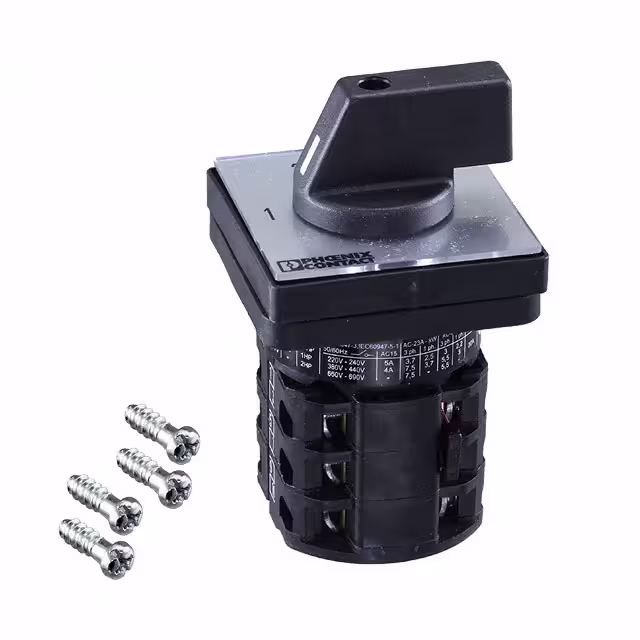

3069718SWITCH SELECT 3POS SP3T 20A 300V |
3,686 |
|
Datasheet | - | Bulk | Obsolete | Standard | SP3T | 3 | On-On-On | 20A (AC) | 300 V | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 15.00mm Dia | - | Marking: 1-2-3 | -35°C ~ 55°C |
|
3069721SWITCH SELECT 4POS SP4T 20A 300V |
3,804 |
|
Datasheet | - | Bulk | Obsolete | Standard | SP4T | 4 | On-On-On-On | 20A (AC) | 300 V | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 15.00mm Dia | - | Marking: 1-2-3-4 | -35°C ~ 55°C |
|
|
3069725SWITCH SELECT 2POS SPDT 20A 300V |
2,963 |
|
Datasheet | - | Bulk | Obsolete | Standard | SPDT | 2 | On-On | 20A (AC) | 300 V | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 15.00mm Dia | - | Marking: 1-2 | -35°C ~ 55°C |
