Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

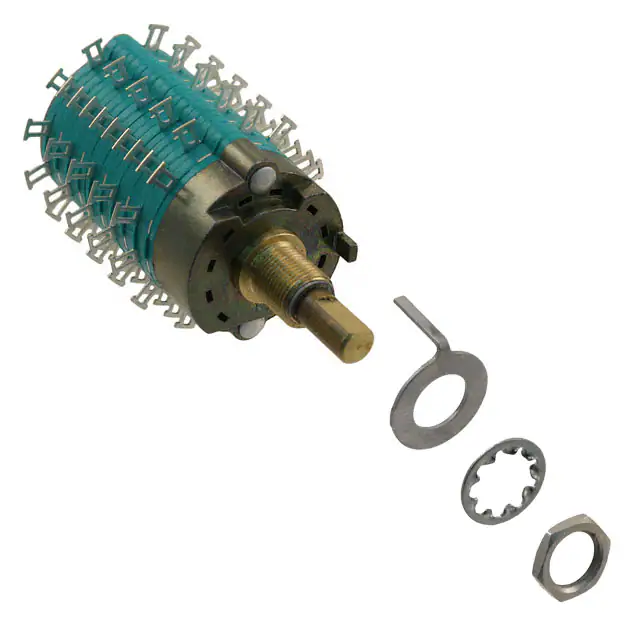

C4D1504N-ASWITCH ROTARY 2-4POS 300MA 125V |
2,505 |
|
Datasheet | C4 | Bulk | Active | 2 ~ 4 | Adjustable | 5 | 3 | 3P4T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 48.97mm |
|
D2D0312NSWITCH ROTARY 2-12POS 250MA 115V |
3,647 |
|
Datasheet | D2 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 24.69mm |
|
D2D0606NSWITCH ROTARY 2-6POS 250MA 115V |
4,542 |
|
Datasheet | D2 | Bulk | Active | 2 ~ 6 | Adjustable | 3 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 24.69mm |
|

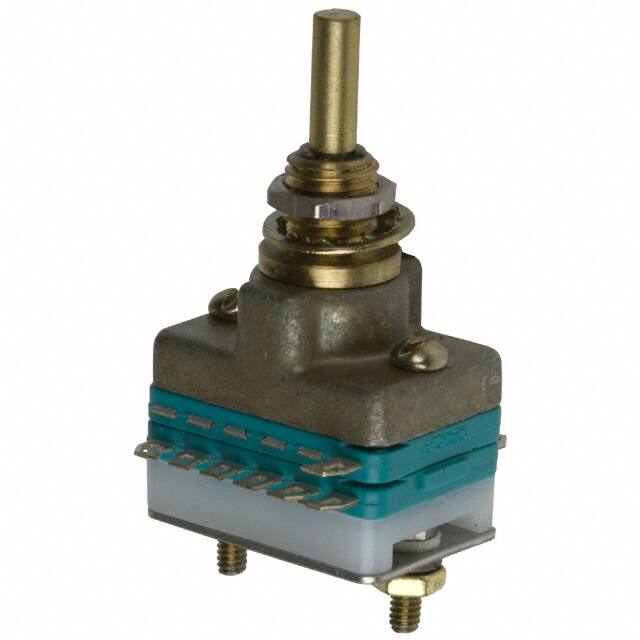

C1D0206N-ASWITCH ROTARY 2-6POS 100MA 125V |
4,424 |
|
Datasheet | C1 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.60mm |
|
C7D0323SSWITCH ROTARY 23POS 500MA 125V |
2,646 |
|
Datasheet | C7 | Bulk | Active | 23 | Fixed | 3 | 1 | SP23T | Shorting (MBB) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 44.38mm |
|
|
C6P0112N-RASWITCH ROTARY 2-12POS 1A 125V |
2,161 |
|
Datasheet | C6 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
|
|
C6P0112N-ASWITCH ROTARY 2-12POS 1A 125V |
4,886 |
|
Datasheet | C6 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.07mm |
|
|
C5P0112N-RASWITCH ROTARY 2-12POS 1A 125V |
4,720 |
|
Datasheet | C5 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Sealed | 14.10mm |
|
|
C6P0206N-ASWITCH ROTARY 2-6POS 1A 125V |
4,391 |
|
Datasheet | C6 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.07mm |
|
|
C6P0206N-RASWITCH ROTARY 2-6POS 1A 125V |
3,924 |
|
Datasheet | C6 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
