Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D6D0206SSWITCH ROTARY 2-6POS 500MA 115V |
1,556 |
|
Datasheet | D6 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.76mm |
|
|
D6D0305NSWITCH ROTARY 2-5POS 500MA 115V |
2,722 |
|
Datasheet | D6 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 3 | 3P5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.76mm |
|
|
C2P0308N-ASWITCH ROTARY 2-8POS 100MA 125V |
2,109 |
|
Datasheet | C2 | Bulk | Active | 2 ~ 8 | Adjustable | 3 | 1 | SP8T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 37.62mm |
|
|
C1D0412S-VASWITCH ROTARY 2-12POS 100MA 125V |
1,876 |
|
Datasheet | C1 | Bulk | Active | 2 ~ 12 | Adjustable | 4 | 1 | SP12T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 35.84mm |
|
|
D6D0503NSWITCH ROTARY 2-3POS 500MA 115V |
2,856 |
|
Datasheet | D6 | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 5 | 5P3T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.76mm |
|
|
C2P0604S-ASWITCH ROTARY 2-4POS 100MA 125V |
3,941 |
|
Datasheet | C2 | Bulk | Active | 2 ~ 4 | Adjustable | 3 | 2 | DP4T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 37.62mm |
|
|
D4C0112SSWITCH ROTARY 2-12POS 500MA 115V |
2,780 |
|
Datasheet | D4 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.76mm |
|

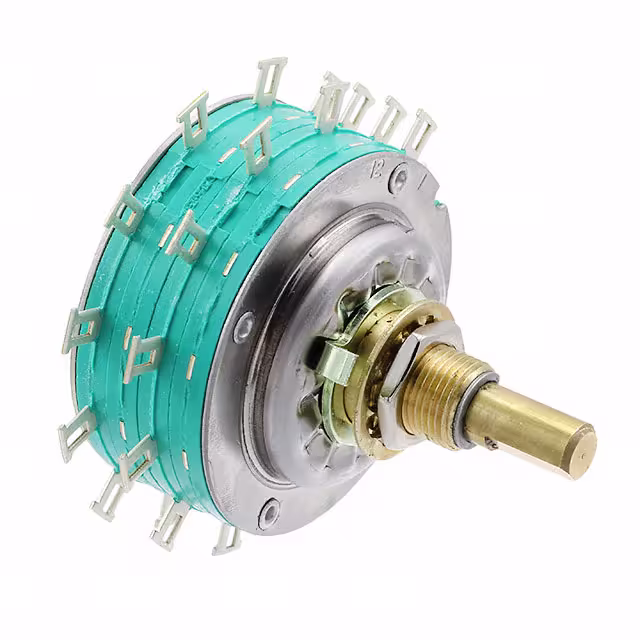

C7D0212S-30SWITCH ROTARY 12POS 500MA 125V |
4,530 |
|
Datasheet | C7 | Bulk | Active | 12 | Fixed | 2 | 1 | SP12T | Shorting (MBB) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 32.49mm |
|
|
C7D0212S-30CSWITCH ROTARY 12POS 500MA 125V |
3,868 |
|
Datasheet | C7 | Bulk | Active | 12 | Continuous | 2 | 1 | SP12T | Shorting (MBB) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 32.49mm |
|
|
D7G0303NSWITCH ROTARY 2-3POS 1A 115V |
4,753 |
|
Datasheet | D7 | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 3 | 3P3T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 16.76mm |
