Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A10615RSZQSWITCH ROTARY 6POS 2.5A 125V |
3,579 |
|
Datasheet | A | Tray | Active | 6 | Fixed | 1 | 1 | SP6T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|

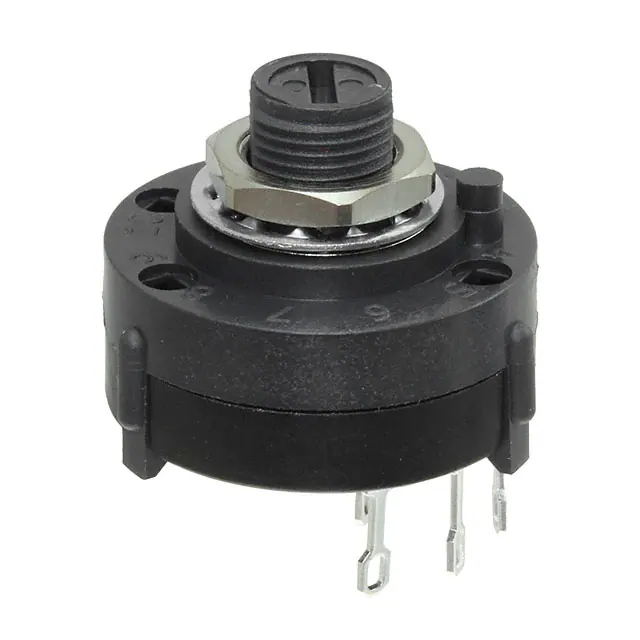

A103S1RNZQSWITCH ROTARY 3POS 2.5A 125V |
1,362 |
|
Datasheet | A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A12415RNZQSWITCH ROTARY 4POS 2.5A 125V |
2,902 |
|
Datasheet | A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A10403RNCBKSWITCH ROTARY 4POS 0.4VA 20V |
3,073 |
|
Datasheet | A | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A12503RNCBKSWITCH ROTARY 8POS 0.4VA 20V |
2,283 |
|
Datasheet | A | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 45° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A106S1MNZGKSWITCH ROTARY 6POS 2.5A 125V |
1,194 |
|
Datasheet | A | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|

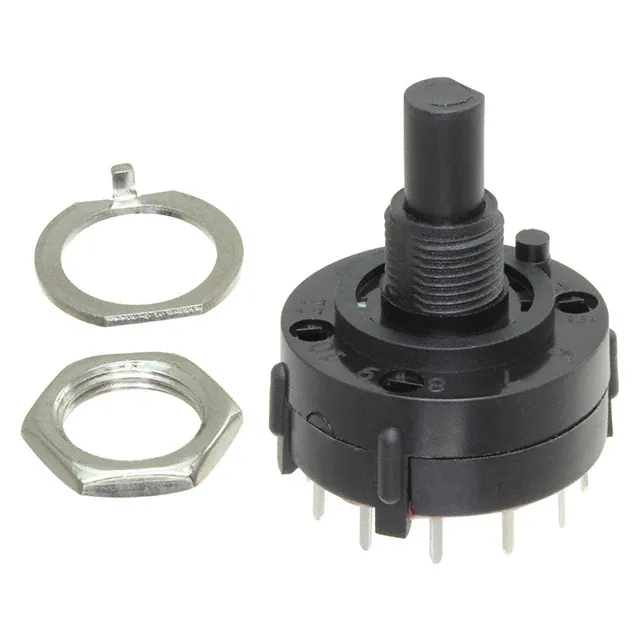

A11203RNCQESWITCH ROTARY 12POS 2.5A 125V |
3,769 |
|
Datasheet | A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
A20303RNCGSWITCH ROTARY 3POS 2.5A 125V |
2,122 |
|
Datasheet | A | Tray | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A402S1RNCBESWITCH ROTARY 2POS 0.4VA 20V |
2,029 |
|
Datasheet | A | Tray | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|

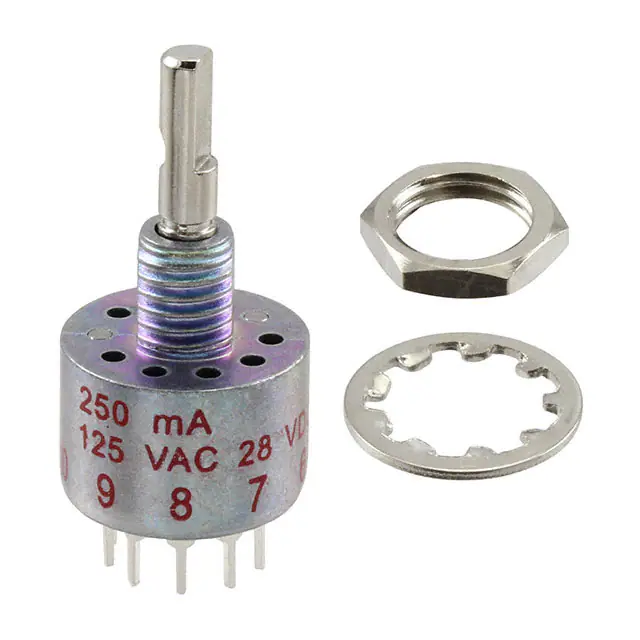

MA04L1NCQDSWITCH ROTARY 4POS 250MA 125V |
2,780 |
|
Datasheet | M | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
