Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RM107772BCBSWITCH ROTARY 7POS 500MA 24V |
613 |
|
Datasheet | RM | Tray | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Flatted (4.2mm Dia), Slotted | 7.70mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
KC26A30.001NLSSWITCH ROTARY 6POS 350MA 125V |
293 |
|
Datasheet | KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
RM106772BCBSWITCH ROTARY 6POS 500MA 24V |
1,369 |
|
Datasheet | RM | Tray | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Flatted (4.2mm Dia), Slotted | 7.70mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
RM105772BCBSWITCH ROTARY 5POS 500MA 24V |
3,349 |
|
Datasheet | RM | Tray | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Flatted (4.2mm Dia), Slotted | 7.70mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
RM104002BCBSWITCH ROTARY 4POS 500MA 24V |
1,622 |
|
Datasheet | RM | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Screwdriver Slot | Flush | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
RM107002BCBSWITCH ROTARY 7POS 500MA 24V |
1,047 |
|
Datasheet | RM | Tray | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Screwdriver Slot | Flush | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
RM100002BCBSWITCH ROTARY 8POS 500MA 24V |
513 |
|
Datasheet | RM | Tray | Active | 8 | Continuous | 1 | 1 | SP8T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Screwdriver Slot | Flush | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
R10307RR02QSWITCH ROTARY 3POS 5A 125V |
2,305 |
|
Datasheet | R | Bag | Active | 3 | Fixed | 1 | 1 | SP3T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Panel Mount, Through Hole | PC Pin | - | 10.29mm |
|
KC43A30.001NLSSWITCH ROTARY 3POS 350MA 125V |
774 |
|
Datasheet | KC | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
KC52A30.001NLSSWITCH ROTARY 12POS 350MA 125V |
631 |
|
Datasheet | KC | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
H20307RR05QSWITCH ROTARY 3POS 12A 125V |
1,448 |
|
Datasheet | H | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T, Adjacent Contact | Non-Shorting (BBM) | 12A (AC), 1A (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 7.29mm | 45° | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | - | 15.25mm |
|
KC25A9.501NLSSWITCH ROTARY 5POS 350MA 125V |
124 |
|
Datasheet | KC | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
R20507RR03QSWITCH ROTARY 5POS 5A 125V |
7,451 |
|
Datasheet | R | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Panel Mount | Solder Lug | - | 14.61mm |
|
A12405RNCQSWITCH ROTARY 4POS 2.5A 125V |
126 |
|
Datasheet | A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 90° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
KC52A30.001NPSSWITCH ROTARY 12POS 350MA 125V |
1,098 |
|
Datasheet | KC | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

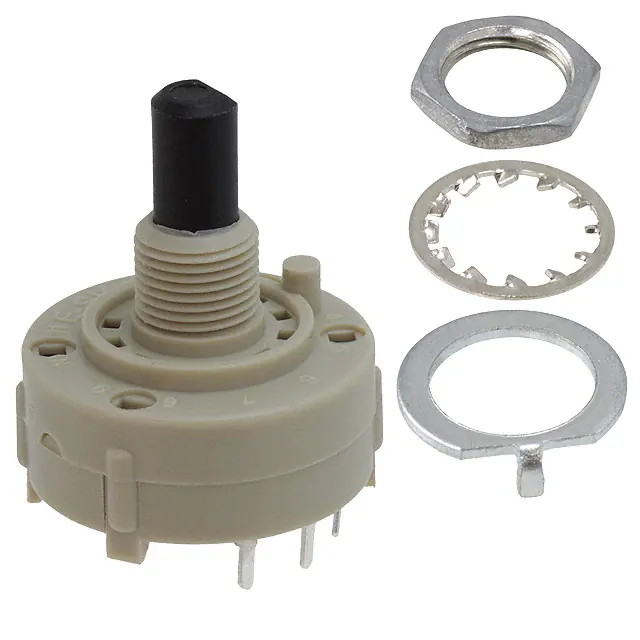

KC14A10.001NPSSWITCH ROTARY 4POS 350MA 125V |
1,245 |
|
Datasheet | KC | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 10.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

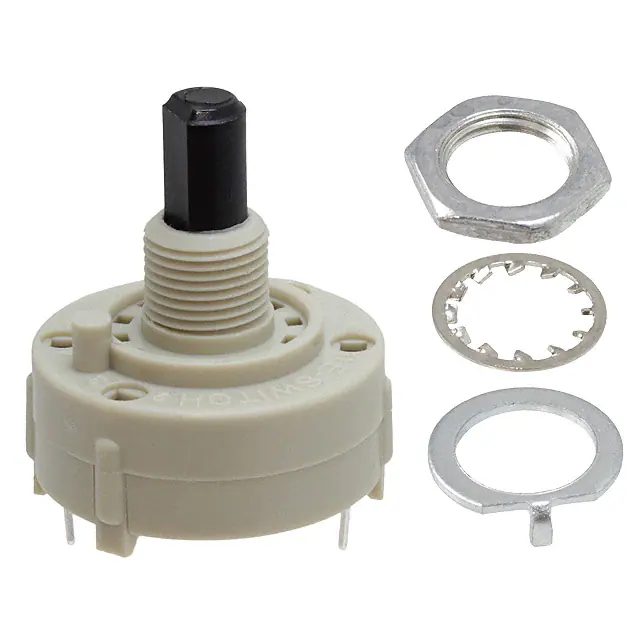

KC18A9.501NPSSWITCH ROTARY 8POS 350MA 125V |
394 |
|
Datasheet | KC | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
A10305RNZQSWITCH ROTARY 3POS 2.5A 125V |
1,522 |
|
Datasheet | A | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A11405RNZQSWITCH ROTARY 2POS 2.5A 125V |
2,078 |
|
Datasheet | A | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
KC24B30.001SLSSWITCH ROTARY 4POS 350MA 125V |
1,057 |
|
Datasheet | KC | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Shorting (MBB) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
