Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RV4LAYSA105APOT 1M OHM 2W CARBON LINEAR |
1,191 |
|
Datasheet | RV4 | Bulk | Active | 1M | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
RV6LAYSA104APOT 100K OHM 1/2W CARBON LINEAR |
4,199 |
|
Datasheet | RV6 | Bulk | Active | 100k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
CMU1021EPOT 1K OHM 2W CARBON LINEAR |
3,317 |
|
Datasheet | CMU | Bulk | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Round | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
534B1503JCPOT 50K OHM 2W WIREWOUND LINEAR |
2,699 |
|
Datasheet | 534 | Bulk | Active | 50k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3547S-1AA-102APOT 1K OHM 1W WIREWOUND LINEAR |
2,207 |
|
Datasheet | 3547 | Tray | Active | 1k | ±3% | 1W | None | 3.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3548S-1AA-103APOT 10K OHM 1.5W WIREWOUND LIN |
4,756 |
|
Datasheet | 3548 | Tray | Active | 10k | ±3% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
533B1202JCPOT 2K OHM 1W WIREWOUND LINEAR |
1,954 |
|
Datasheet | 533 | Bulk | Active | 2k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
533B1102JCPOT 1K OHM 1W WIREWOUND LINEAR |
2,103 |
|
Datasheet | 533 | Bulk | Active | 1k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
533B1502JCPOT 5K OHM 1W WIREWOUND LINEAR |
2,599 |
|
Datasheet | 533 | Bulk | Active | 5k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
KA1041S28-DPOT 100K OHM 2W CARBON LOG |
3,386 |
|
Datasheet | K | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
535B1103JCPOT 10K OHM 1.5W WIREWOUND LIN |
2,452 |
|
Datasheet | 535 | Bulk | Active | 10k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
KA2541S28POT 250K OHM 2W CARBON LOG |
3,074 |
|
Datasheet | K | Bulk | Active | 250k | ±10% | 2W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
534B1502JC8872POT 5K OHM 2W WIREWOUND LINEAR |
1,093 |
|
Datasheet | 534 | Box | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
|
534B1103JC8872POT 10K OHM 2W WIREWOUND LINEAR |
4,085 |
|
Datasheet | 534 | Box | Active | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|

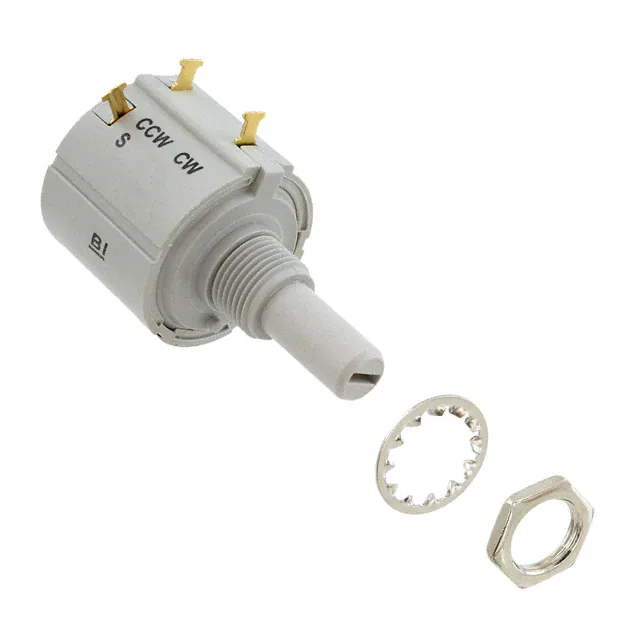

7276R10KL.25POT 10K OHM 2W WIREWOUND LINEAR |
3,603 |
|
Datasheet | 7276 | Bulk | Active | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.811" (20.60mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
3540S-1-203LPOT 20K OHM 2W WIREWOUND LINEAR |
2,232 |
|
Datasheet | 3540 | Tray | Active | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
534B1101JLPOT 100 OHM 2W WIREWOUND LINEAR |
3,932 |
|
Datasheet | 534 | Box | Active | 100 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3540S-1-101LPOT 100 OHM 2W WIREWOUND LINEAR |
4,492 |
|
Datasheet | 3540 | Bulk | Active | 100 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
157B102MXPOT 1K OHM 1W PLASTIC LINEAR |
1,779 |
|
Datasheet | 157 | Bulk | Active | 1k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
7276R5KL.25POT 5K OHM 2W WIREWOUND LINEAR |
3,959 |
|
Datasheet | 7276 | Bulk | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.811" (20.60mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
