Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R1610N-QB1-B105POT 1M OHM 1/8W CARBON LINEAR |
1,606 |
|
Datasheet | - | Bulk | Active | 1M | ±30% | 0.125W, 1/8W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Carbon | Solder Lug | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
R1610N-QB1-A105POT 1M OHM 0.06W CARBON LOG |
1,108 |
|
Datasheet | - | Bulk | Active | 1M | ±30% | 0.06W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
R1610N-3B1-B103POT 10K OHM 1/8W CARBON LINEAR |
1,025 |
|
Datasheet | - | Bulk | Active | 10k | ±20% | 0.125W, 1/8W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
EVU-E3AF25B14POT 10K OHM 1/20W LINEAR |
13,983 |
|
Datasheet | EVU | Bulk | Obsolete | 10k | ±20% | 0.05W, 1/20W | Detent | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | - | PC Pins, Board Locks | Flatted | 0.717" (18.20mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
R1610G-RB1-A104POT 100K OHM 0.06W CARBON LOG |
1,529 |
|
Datasheet | - | Bulk | Active | 100k | ±20% | 0.06W | None | 1.0 | - | Logarithmic | 2 | User Defined | - | 300° | Carbon | Solder Lug | Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
R1610G-RB1-A203POT 20K OHM 0.06W CARBON LOG |
511 |
|
Datasheet | - | Bulk | Active | 20k | ±20% | 0.06W | None | 1.0 | - | Logarithmic | 2 | User Defined | - | 300° | Carbon | Solder Lug | Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
R1610S-2B1-A502POT 5K OHM 0.06W CARBON LOG |
1,985 |
|
Datasheet | - | Bulk | Active | 5k | ±20% | 0.06W | Rotary, SPST | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
R1610S-2B1-A103POT 10K OHM 0.06W CARBON LOG |
1,722 |
|
Datasheet | - | Bulk | Active | 10k | ±20% | 0.06W | Rotary, SPST | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
R1610S-2B1-A104POT 100K OHM 0.06W CARBON LOG |
119 |
|
Datasheet | - | Bulk | Active | 100k | ±20% | 0.06W | Rotary, SPST | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
1624191-8POT 100K OHM 1/5W CARBON LINEAR |
4,653 |
|
Datasheet | 51, Citec | Bulk | Obsolete | 100k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Carbon | PC Pins, Board Locks | - | - | - | - | Through Hole |
|
|
5150500311POT CARBON FILM 0.2W |
3,955 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

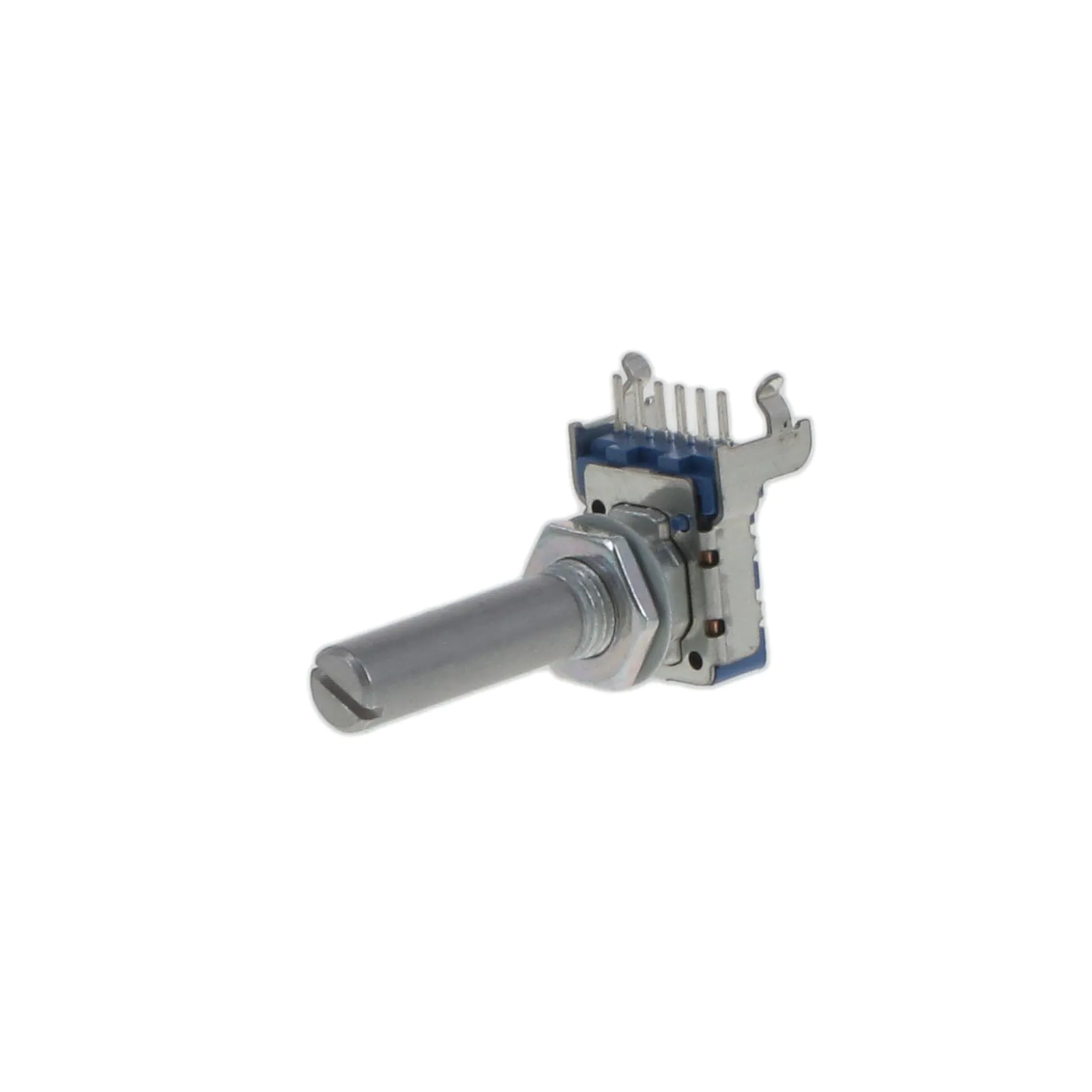

PRS12R-2125S-103B1POT 10K OHM 1/20W LINEAR |
4,844 |
|
Datasheet | PRS12R | Tray | Active | 10k | ±20% | 0.05W, 1/20W | Detent | 1.0 | - | Linear | 2 | Side Adjustment | - | 300° | - | PC Pins | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Through Hole |
|
EVJ-CC6F02368POT 50K OHM 1/20W LOGARITHMIC |
600 |
|
Datasheet | EVJ | Bulk | Obsolete | 50k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 300° | - | PC Pins, Board Locks | Flatted | 0.689" (17.50mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
RD925G-QA1-B204POT 200K OHM 1/20W CARBON LINEAR |
863 |
|
Datasheet | - | Bulk | Active | 200k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
FS16KN-1179A-DUPOT 10K OHM 1/10W LINEAR |
150 |
|
- |
F16K | Bulk | Active | 10k | ±10% | 0.1W, 1/10W | - | 1.0 | - | Linear | 1 | Top Adjustment | - | 300° | - | PC Pins | Knurled and Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
FS16KN-1180A-DUPOT 10K OHM 1/5W LINEAR |
150 |
|
- |
F16K | Bulk | Active | 10k | ±10% | 0.2W, 1/5W | - | 1.0 | - | Linear | 1 | Top Adjustment | - | 300° | - | PC Pins | Knurled and Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
CP16DH10IP6474BFPOT 470K OHM 1/10W CARBON LOG |
1,261 |
|
Datasheet | CP16, Citec | Bulk | Active | 470k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
575SX1A48F102SSPOT 1K OHM 1/2W PLASTIC LINEAR |
471 |
|
Datasheet | 575 | Bulk | Obsolete | 1k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Conductive Plastic | Solder Hook | Flatted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
17PESA474MC19NPOT 470K OHM 1/4W CARBON LINEAR |
2,774 |
|
Datasheet | 17P, Citec | Bulk | Obsolete | 470k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | 5% | 300° | Carbon | Solder Lug | Flatted | 0.748" (19.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
RD925S-QA1-A203POT 20K OHM 1/40W CARBON LOG |
738 |
|
Datasheet | - | Bulk | Active | 20k | ±20% | 0.025W, 1/40W | Rotary, SPST | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
