Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
81R1A-R22-A15LPOT 10K OHM 2W CERMET LINEAR |
2,242 |
|
Datasheet | 81 | Tray | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
95R2A-R22-A15/A15LPOT 10K OHM 1W CERMET LINEAR |
1,981 |
|
Datasheet | 95 | Tray | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
95A2A-B28-B10/B10LPOT 1K OHM 1/2W PLASTIC LINEAR |
1,826 |
|
Datasheet | 95 | Tray | Active | 1k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 2 | User Defined | ±1000ppm/°C | 300° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

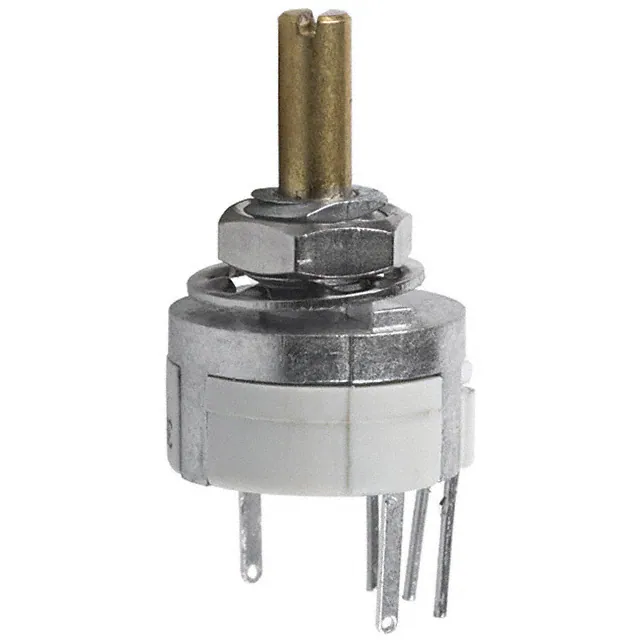

39SB-1RD-104POT 100K OHM 1/8W PLASTIC LOG |
4,270 |
|
Datasheet | 39 | Tray | Active | 100k | ±20% | 0.125W, 1/8W | Rotary, SPST | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 270° | Conductive Plastic | PC Pins | Flatted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-28 | Panel Mount |
|
|
95A2A-G28-A13/A13LPOT 5K OHM 1W CERMET LINEAR |
3,347 |
|
- |
95 | Tray | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
39LB-1PD-103POT 10K OHM 1/4W |
4,840 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
6630S0A-C28-R103POT 10K OHM 1W PLASTIC LINEAR |
4,143 |
|
- |
6630 | Bulk | Obsolete | 10k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Lug | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
6630S1D-C28-R502POT 5K OHM 1W PLASTIC LINEAR |
2,403 |
|
- |
6630 | Tray | Obsolete | 5k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 340° | Conductive Plastic | Solder Lug | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
39SA-1RB-203POT 20K OHM 1/4W PLASTIC LINEAR |
4,895 |
|
Datasheet | 39 | Tray | Active | 20k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | - | 270° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-28 | Panel Mount |
|
|
39SA-1RB-503POT 50K OHM 1/4W PLASTIC LINEAR |
4,265 |
|
Datasheet | 39 | Tray | Active | 50k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | - | 270° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-28 | Panel Mount |
