Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
91A2A-B24-D20/D20LPOT 100K OHM 1/4W PLASTIC LOG |
2,372 |
|
Datasheet | 91 | Tray | Active | 100k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
91A2A-B28-D13/D13LPOT 5K OHM 1/4W PLASTIC LOG |
4,028 |
|
Datasheet | 91 | Tray | Active | 5k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
91A2A-B28-D20/D20LPOT 100K OHM 1/4W PLASTIC LOG |
4,027 |
|
Datasheet | 91 | Tray | Active | 100k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
91A2A-B28-D10/D10LPOT 1K OHM 1/4W PLASTIC LOG |
3,049 |
|
Datasheet | 91 | Tray | Active | 1k | ±20% | 0.25W, 1/4W | None | 1.0 | Long Life | Logarithmic | 2 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3310H-026-102LPOT 1K OHM 1/4W PLASTIC LINEAR |
3,205 |
|
Datasheet | Pro Audio 3310 | Tube | Active | 1k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.220" (5.59mm) | 0.125" (3.18mm) | - | Through Hole |
|
|
3310H-026-103LPOT 10K OHM 1/4W PLASTIC LINEAR |
3,595 |
|
Datasheet | Pro Audio 3310 | Tube | Active | 10k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | Sealed | Linear | 2 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.220" (5.59mm) | 0.125" (3.18mm) | - | Through Hole |
|

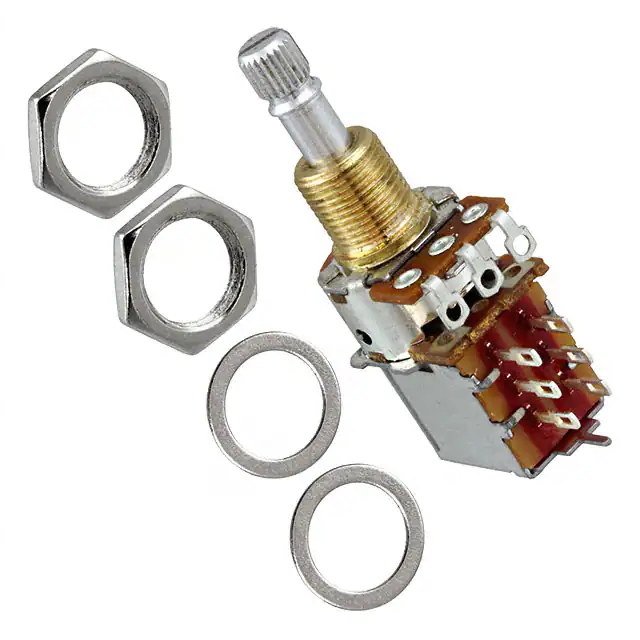

PDB185-GTR11-254A2POT 250K OHM 1/20W CARBON LOG |
4,883 |
|
Datasheet | Pro Audio PDB185-GTR | Tray | Active | 250k | ±20% | 0.05W, 1/20W | Push-Push, DPDT | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|

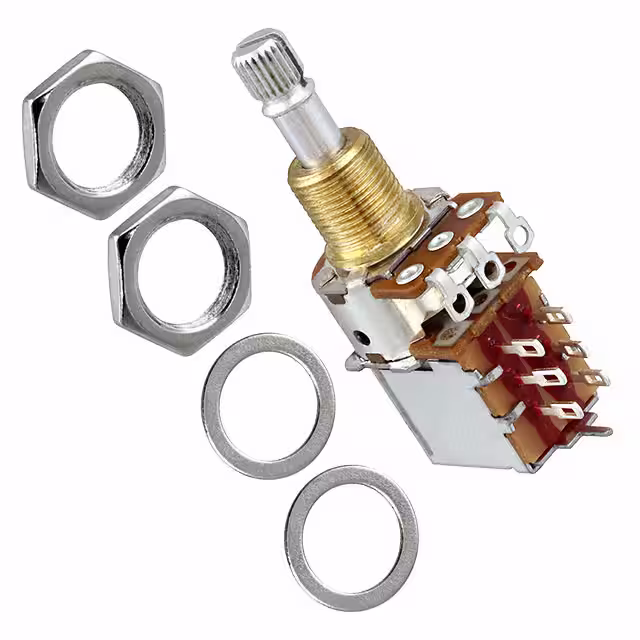

PDB185-GTR11-504A2POT 500K OHM 1/20W CARBON LOG |
3,820 |
|
Datasheet | Pro Audio PDB185-GTR | Tray | Active | 500k | ±20% | 0.05W, 1/20W | Push-Push, DPDT | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|

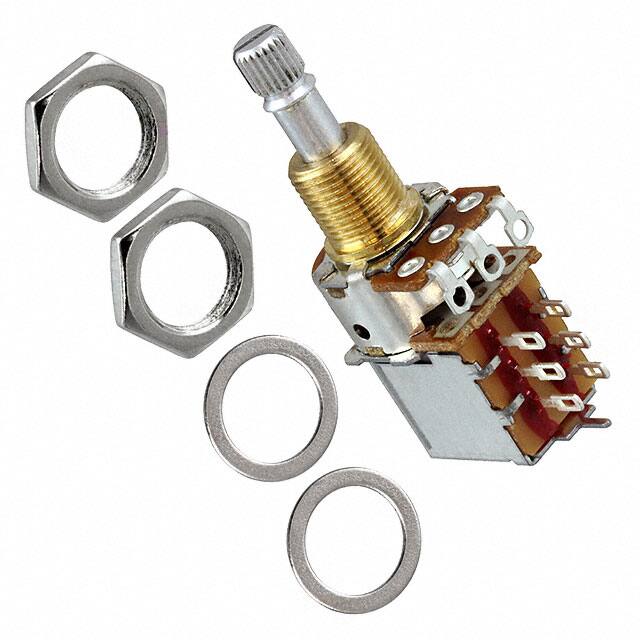

PDB185-GTR11-254C2POT 250K OHM 1/20W CARBON R-LOG |
3,450 |
|
Datasheet | Pro Audio PDB185-GTR | Tray | Active | 250k | ±20% | 0.05W, 1/20W | Push-Push, DPDT | 1.0 | - | Reverse Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|

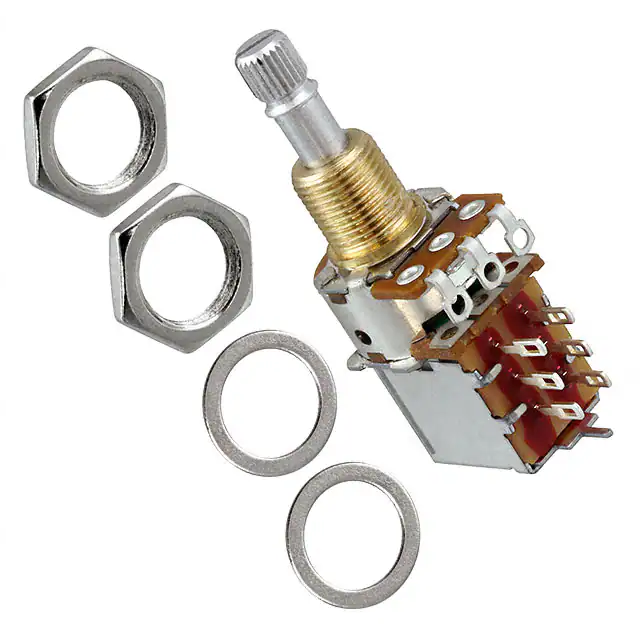

PDB185-GTR11-504C2POT 500K OHM 1/20W CARBON R-LOG |
4,793 |
|
Datasheet | Pro Audio PDB185-GTR | Tray | Active | 500k | ±20% | 0.05W, 1/20W | Push-Push, DPDT | 1.0 | - | Reverse Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
