Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

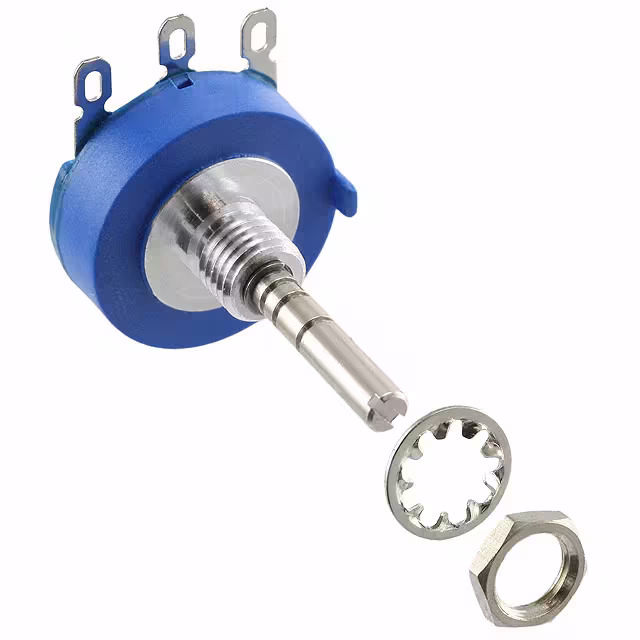

3852C-282-503ALPOT 50K OHM 2W CERMET LINEAR |
1,690 |
|
Datasheet | 3852 | Tray | Active | 50k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3852A-286-102ALPOT 1K OHM 2W CERMET LINEAR |
1,296 |
|
Datasheet | 3852 | Tray | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 280° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3852C-202-103ALPOT 10K OHM 2W CERMET LINEAR |
4,409 |
|
Datasheet | 3852 | Tray | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3851A-202-104BLPOT 100K OHM 1W PLASTIC LINEAR |
1,159 |
|
Datasheet | 3851 | Tray | Active | 100k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±1000ppm/°C | 280° | Conductive Plastic | Solder Lug | Slotted | 0.625" (15.88mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3852A-202-502ALPOT 5K OHM 2W CERMET LINEAR |
3,567 |
|
Datasheet | 3852 | Tray | Active | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.625" (15.88mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3851C-282-252BLPOT 2.5K OHM 1W PLASTIC LINEAR |
1,360 |
|
Datasheet | 3851 | Tray | Active | 2.5k | ±20% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 280° | Conductive Plastic | PC Pins | Slotted | 0.375" (9.53mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3852A-166-503ALPOT 50K OHM 2W CERMET LINEAR |
3,099 |
|
Datasheet | 3852 | Tray | Active | 50k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 280° | Cermet | PC Pins | Slotted | 0.500" (12.70mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3852C-286-103ALPOT 10K OHM 2W CERMET LINEAR |
2,416 |
|
Datasheet | 3852 | Tray | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 280° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3852A-166-104ALPOT 100K OHM 2W CERMET LINEAR |
1,784 |
|
Datasheet | 3852 | Tray | Active | 100k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 280° | Cermet | PC Pins | Slotted | 0.500" (12.70mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
96A1A-B28-A10LPOT 1K OHM 2W CERMET LINEAR |
4,670 |
|
Datasheet | 96 | Tray | Active | 1k | ±10% | 2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
