Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCW1D-R24-BAB105LPOT 1M OHM 3/4W PLASTIC LINEAR |
3,066 |
|
Datasheet | PC-Slimline | Tray | Active | 1M | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.945" (24.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
PCW1J-C24-BAB102LPOT 1K OHM 3/4W PLASTIC LINEAR |
1,989 |
|
Datasheet | PC-Slimline | Tray | Active | 1k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
|
PCW1J-C24-BAB503LPOT 50K OHM 3/4W PLASTIC LINEAR |
3,747 |
|
Datasheet | PC-Slimline | Tray | Active | 50k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
|
PCW1J-C28-BAB104LPOT 100K OHM 3/4W PLASTIC LINEAR |
3,767 |
|
Datasheet | PC-Slimline | Tray | Active | 100k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
|
PCW1J-C28-KAB103LPOT 10K OHM 3/4W PLASTIC LINEAR |
2,593 |
|
Datasheet | PC-Slimline | Tray | Active | 10k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
|
PCW1J-C28-KAB104LPOT 100K OHM 3/4W PLASTIC LINEAR |
4,668 |
|
Datasheet | PC-Slimline | Tray | Active | 100k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
|
PCW1J-R19-BAB103LPOT 10K OHM 3/4W PLASTIC LINEAR |
2,561 |
|
Datasheet | PC-Slimline | Tray | Active | 10k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|

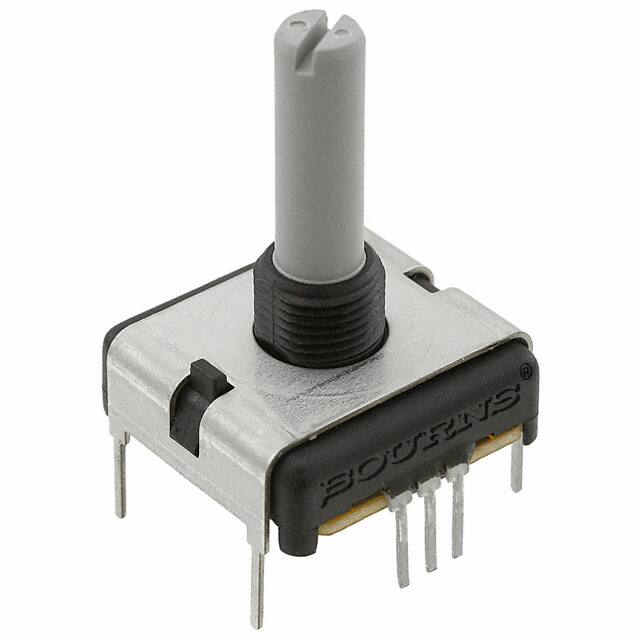

PCW1J-R24-BAB104LPOT 100K OHM 3/4W PLASTIC LINEAR |
1,802 |
|
Datasheet | PC-Slimline | Tray | Active | 100k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.945" (24.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
PCW1J-R24-BAB502LPOT 5K OHM 3/4W PLASTIC LINEAR |
4,326 |
|
Datasheet | PC-Slimline | Tray | Active | 5k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.945" (24.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
PCW1J-R24-EAB502LPOT 5K OHM 3/4W PLASTIC LINEAR |
3,223 |
|
Datasheet | PC-Slimline | Tray | Active | 5k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.945" (24.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
