Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RV4NAYSD105APOT 1M OHM 2W CARBON LINEAR |
185 |
|
Datasheet | RV4 | Bulk | Active | 1M | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
533B1103JCPOT 10K OHM 1W WIREWOUND LINEAR |
127 |
|
Datasheet | 533 | Bulk | Active | 10k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

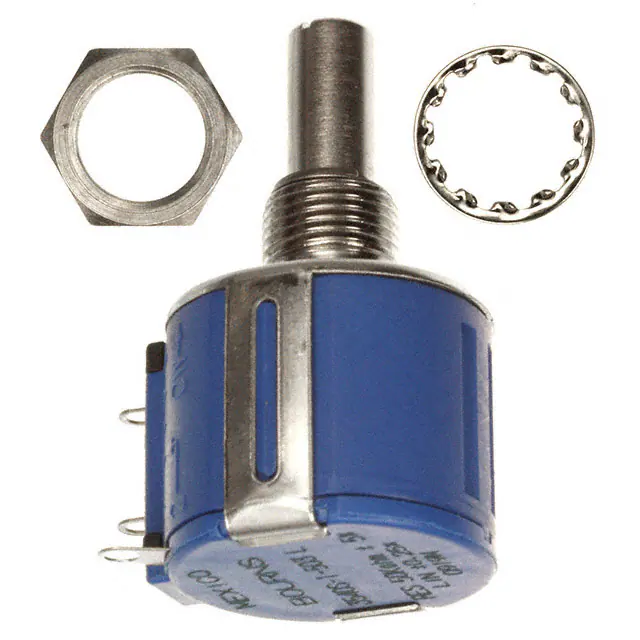

3540S-1-502LPOT 5K OHM 2W WIREWOUND LINEAR |
983 |
|
Datasheet | 3540 | Tray | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3540S-1-103LPOT 10K OHM 2W WIREWOUND LINEAR |
122 |
|
Datasheet | 3540 | Tray | Active | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
8146R10KL.25POT 10K OHM 2W HYBRID LINEAR |
165 |
|
Datasheet | 8140 | Bulk | Active | 10k | ±10% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Hybrid | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

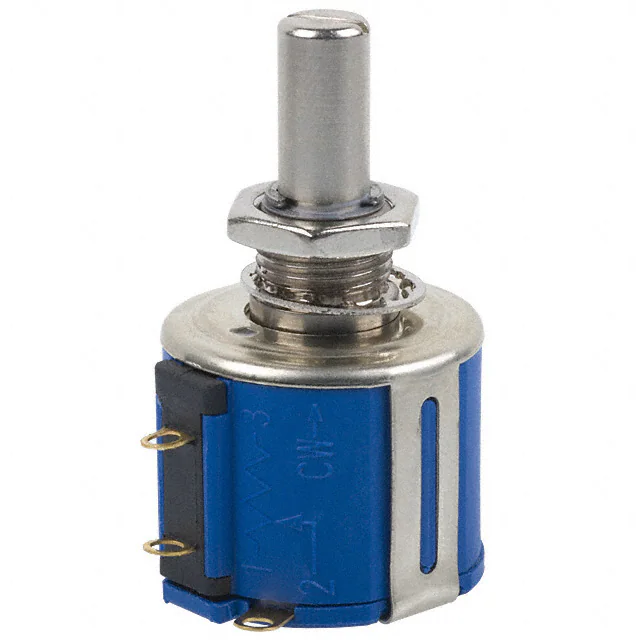

3540S-1-503LPOT 50K OHM 2W WIREWOUND LINEAR |
177 |
|
Datasheet | 3540 | Tray | Active | 50k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
MC1003-000-103POT 10K OHM 0.19W PLASTIC LINEAR |
470 |
|
Datasheet | MC1003 | Bulk | Active | 10k | ±20% | 0.19W | None | 3.0 | Long Life | Linear | 1 | User Defined | ±400ppm/°C | 1080° | Conductive Plastic | Solder Lug | Slotted | 0.650" (16.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
157S102MXPOT 1K OHM 1W PLASTIC LINEAR |
193 |
|
Datasheet | 157 | Bulk | Active | 1k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
LCP8T-10-10KLINEAR POT 10K OHM 0.2W PLASTIC |
118 |
|
Datasheet | LCP8P | Bulk | Active | 10k | ±15% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±400ppm/°C | - | Conductive Plastic | Wire Leads | Round | 0.393" (9.98mm) | 0.079" (2.01mm) | - | Chassis Mount |
|

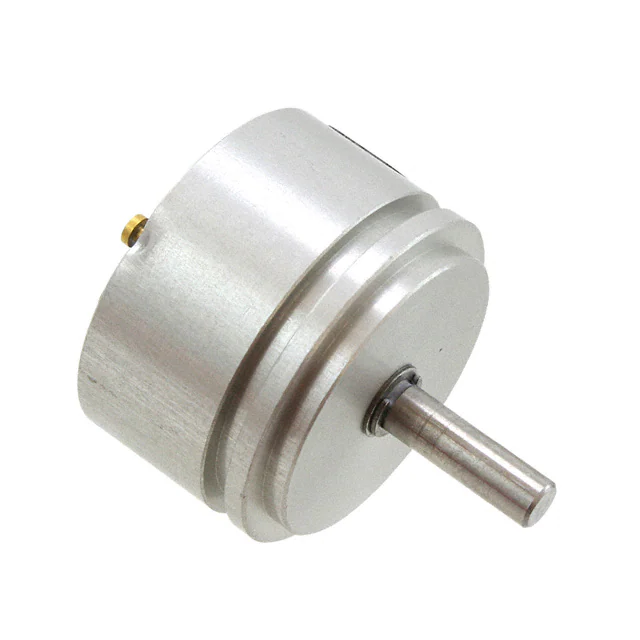

6537S-1-502POT 5K OHM 1W PLASTIC LINEAR |
2,656 |
|
Datasheet | 6537 | Bulk | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|

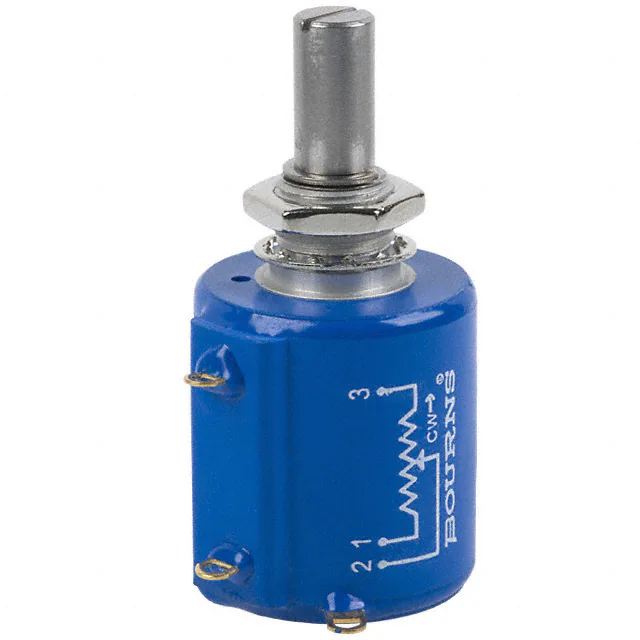

3500S-2-502LPOT 5K OHM 2W WIREWOUND LINEAR |
3,994 |
|
Datasheet | 3500 | Bulk | Active | 5k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
P13SMNFGS103MAPOT 10K OHM 1.5W CERMET LINEAR |
200 |
|
Datasheet | P13SM | Bulk | Active | 10k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

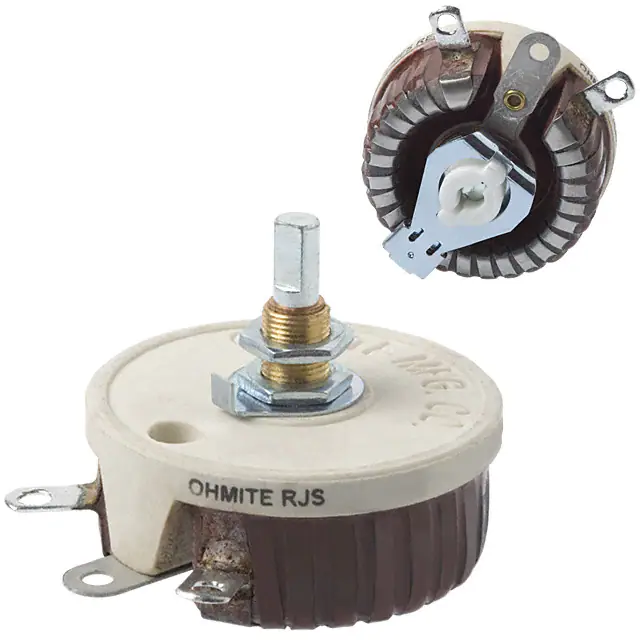

RJS50REPOT 50 OHM 50W WIREWOUND LINEAR |
3,202 |
|
Datasheet | J | Bulk | Active | 50 | ±10% | 50W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

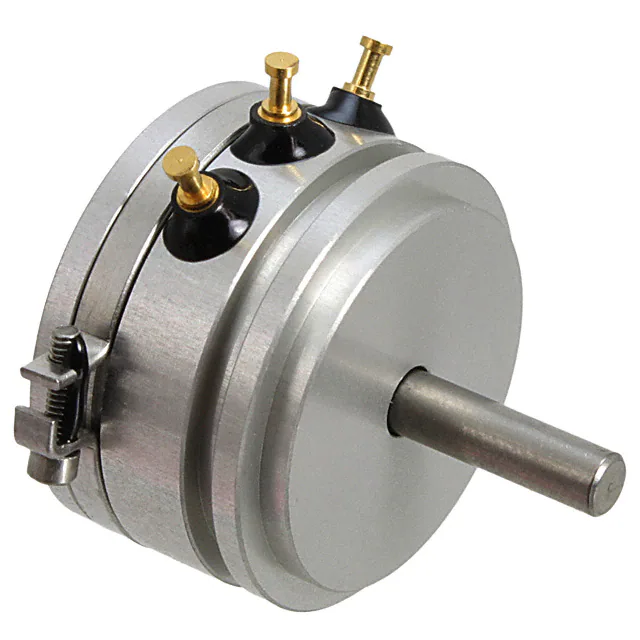

6534S-1-502POT 5K OHM 1W PLASTIC LINEAR |
105 |
|
Datasheet | 6534 | Bulk | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
3400S-1-501LPOT 500 OHM 5W WIREWOUND LINEAR |
4,103 |
|
Datasheet | 3400 | Bulk | Active | 500 | ±3% | 5W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

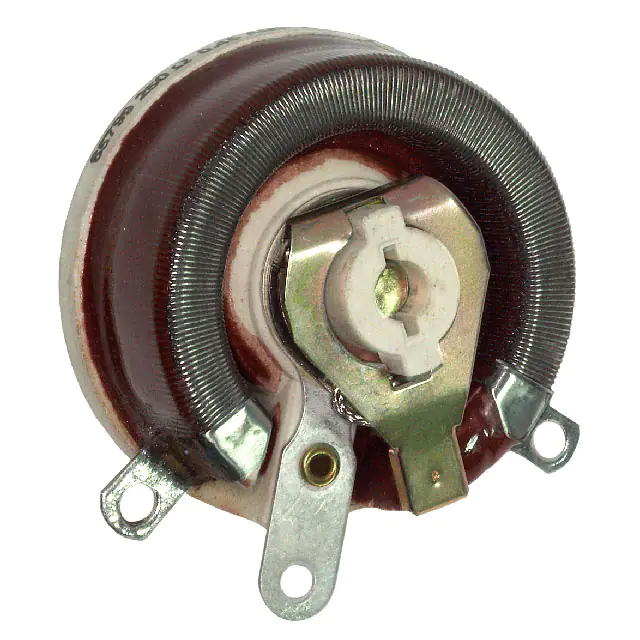

RKS10REPOT 10 OHM 100W WIREWOUND LINEAR |
126 |
|
Datasheet | K | Bulk | Active | 10 | ±10% | 100W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3610S-1-502POT 5K OHM 1.5W WIREWOUND LINEAR |
3,329 |
|
Datasheet | Knobpot® 3610 | Bulk | Active | 5k | ±5% | 1.5W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Hook | Knob | 0.740" (18.80mm) | 0.875" (22.23mm) | - | Panel Mount |
|

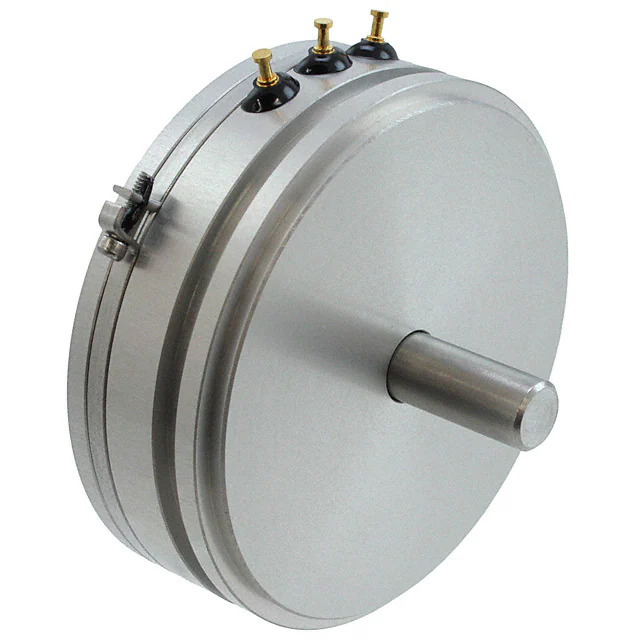

6574S-1-502POT 5K OHM 2W PLASTIC LINEAR |
4,943 |
|
Datasheet | 6574 | Bulk | Active | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.625" (15.88mm) | 0.2497" (6.34mm) | - | Servo Mount |
|

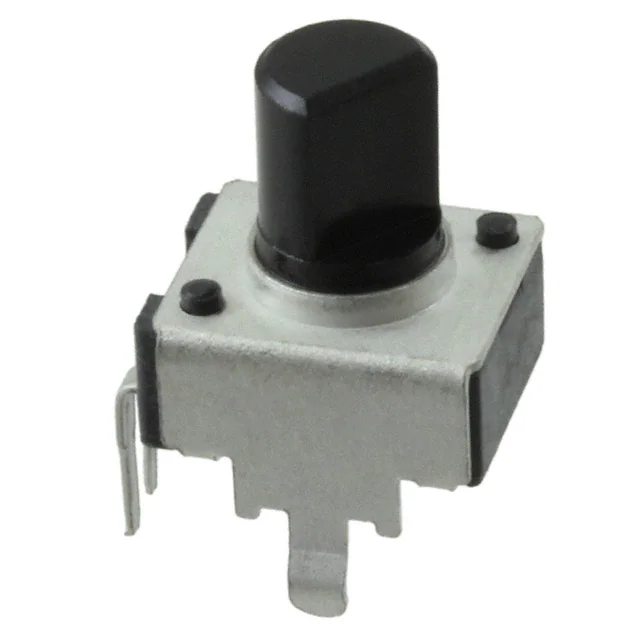

PTV09A-4015F-B104POT 100K OHM 1/20W CARBON LINEAR |
8,234 |
|
Datasheet | Pro Audio PTV09 | Tray | Active | 100k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
P160KNP-0QC20B100KPOT 100K OHM 1/5W PLASTIC LINEAR |
2,094 |
|
Datasheet | P160 | Tray | Active | 100k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Knurled and Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
