Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUS50REPOT 50 OHM 1000W WIREWOUND LIN |
2,749 |
|
Datasheet | U | Bulk | Active | 50 | ±10% | 1000W | None | 1.0 | - | Linear | 1 | User Defined | - | 335° | Wirewound | Solder Lug | Flatted | 2.000" (50.80mm) | 0.375" (9.53mm) | - | Panel Mount |
|
SA-7359APOT 10K OHM 5W WIREWOUND LINEAR |
1,454 |
|
- |
A | Bulk | Active | 10k | ±3% | 5W | None | 10.0 | - | Linear | 1 | User Defined | 130ppm/°C | 3600° | Wirewound | Solder Lug | Flatted | 0.811" (20.60mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
KKU1041S28POT 100K OHM 2W CARBON LINEAR |
2,027 |
|
Datasheet | KK | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Linear | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
P091SEC25AR50KPOT 50K OHM 1/40W PLASTIC LOG |
4,771 |
|
Datasheet | P09x | Tray | Active | 50k | ±20% | 0.025W, 1/40W | Rotary, SPST | 1.0 | - | Logarithmic | 1 | Side Adjustment | - | 300° | Conductive Plastic | PC Pins, Board Locks | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
6630S0A-B28-R103POT 10K OHM 1W PLASTIC LINEAR |
4,774 |
|
- |
6630 | Bulk | Obsolete | 10k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
6630S1A-B28-R102POT 1K OHM 1W PLASTIC LINEAR |
4,558 |
|
- |
6630 | Bulk | Obsolete | 1k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 340° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
6630S1A-B28-R103POT 10K OHM 1W PLASTIC LINEAR |
3,469 |
|
- |
6630 | Bulk | Obsolete | 10k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 340° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
6630S1A-C28-A103POT 10K OHM 1W PLASTIC LINEAR |
2,672 |
|
- |
6630 | Bulk | Obsolete | 10k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 340° | Conductive Plastic | Solder Lug | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

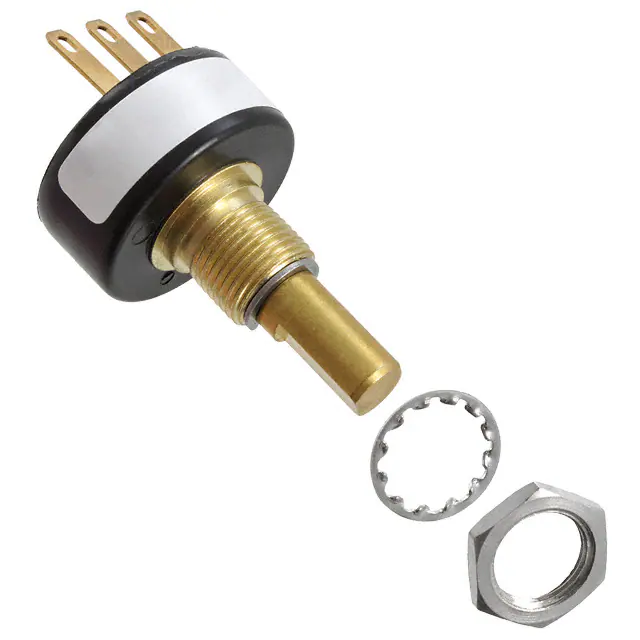

6630S1A-C28-R502POT 5K OHM 1W PLASTIC LINEAR |
1,952 |
|
- |
6630 | Bulk | Obsolete | 5k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 340° | Conductive Plastic | Solder Lug | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
96A1D-G24-B20LPOT 100K OHM 1W PLASTIC LINEAR |
4,743 |
|
Datasheet | 96 | Tray | Active | 100k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
96A1D-G28-A15LPOT 10K OHM 2W CERMET LINEAR |
4,862 |
|
Datasheet | 96 | Tray | Active | 10k | ±10% | 2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
PDA241-HRT02-105B0POT 1M OHM 1/2W CARBON LINEAR |
1,081 |
|
Datasheet | Pro Audio PDA24 | Bulk | Obsolete | 1M | ±15% | 0.5W, 1/2W | None | 1.0 | Long Life | Linear | 1 | User Defined | - | 300° | Carbon | Solder Lug | Round | 0.748" (19.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
PDA241-HRT02-503B0POT 50K OHM 1/2W CARBON LINEAR |
1,818 |
|
Datasheet | Pro Audio PDA24 | Bulk | Obsolete | 50k | ±15% | 0.5W, 1/2W | None | 1.0 | Long Life | Linear | 1 | User Defined | - | 300° | Carbon | Solder Lug | Round | 0.748" (19.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

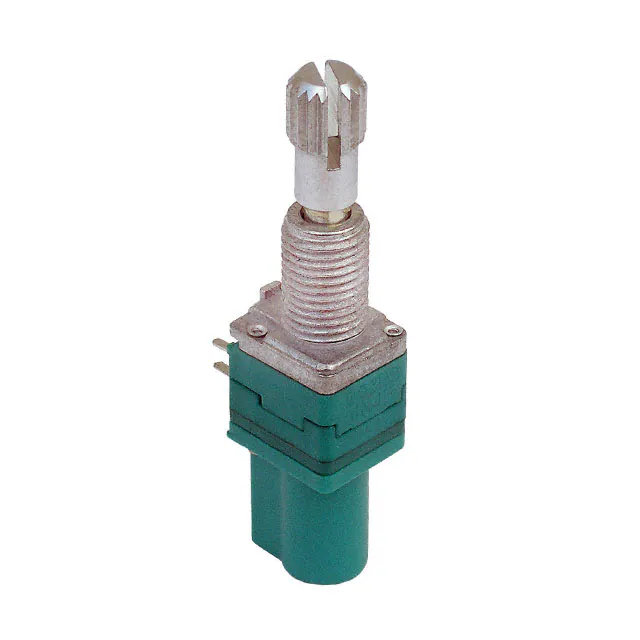

PTP901-030K-503A3POT 50K OHM 1/40W CARBON LOG |
4,846 |
|
Datasheet | Pro Audio PTP90 | Tray | Obsolete | 50k | ±20% | 0.025W, 1/40W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | - | 310° | Carbon | PC Pins, Board Locks | Knurled and Slotted | 1.181" (30.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
PTP902-030F-203A3POT 20K OHM 1/40W CARBON LOG |
1,780 |
|
Datasheet | Pro Audio PTP90 | Tray | Obsolete | 20k | ±20% | 0.025W, 1/40W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 310° | Carbon | PC Pins, Board Locks | Flatted | 1.181" (30.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
PTP902-030F-503A3POT 50K OHM 1/40W CARBON LOG |
1,361 |
|
Datasheet | Pro Audio PTP90 | Tray | Obsolete | 50k | ±20% | 0.025W, 1/40W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 310° | Carbon | PC Pins, Board Locks | Flatted | 1.181" (30.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
PTP902-030K-103B1POT 10K OHM 1/20W CARBON LINEAR |
4,465 |
|
Datasheet | Pro Audio PTP90 | Tray | Obsolete | 10k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 310° | Carbon | PC Pins, Board Locks | Knurled and Slotted | 1.181" (30.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
PTP902-030K-202B2POT 2K OHM 1/20W CARBON LINEAR |
1,242 |
|
Datasheet | Pro Audio PTP90 | Tray | Obsolete | 2k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 310° | Carbon | PC Pins, Board Locks | Knurled and Slotted | 1.181" (30.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
PTP902-030K-203B2POT 20K OHM 1/20W CARBON LINEAR |
3,815 |
|
Datasheet | Pro Audio PTP90 | Tray | Obsolete | 20k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 310° | Carbon | PC Pins, Board Locks | Knurled and Slotted | 1.181" (30.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
PTP902-030K-502B2POT 5K OHM 1/20W CARBON LINEAR |
2,350 |
|
Datasheet | Pro Audio PTP90 | Tray | Obsolete | 5k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 310° | Carbon | PC Pins, Board Locks | Knurled and Slotted | 1.181" (30.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
