Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
P11S3GOBJSY00T1328POT 1W CERMET LINEAR |
4,503 |
|
Datasheet | P11S | Bulk | Active | - | ±20% | 1W | None | 1.0 | - | Linear | 3 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | M8 x 0.75 | Panel Mount |
|

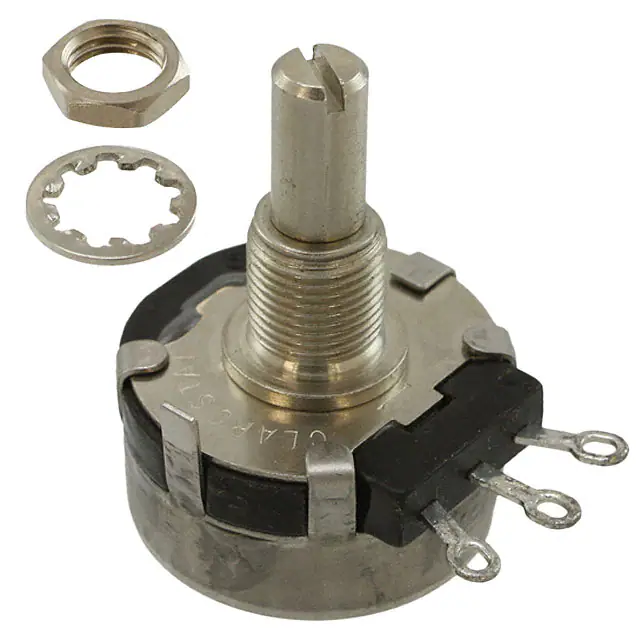

RV4SAYSD502APOT 5K OHM 2W PLASTIC LINEAR |
4,260 |
|
Datasheet | RV4 | Bulk | Obsolete | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
302S1102B01POT 1K OHM 4W WIREWOUND LINEAR |
2,793 |
|
Datasheet | 302 | Bulk | Active | 1k | ±3% | 4W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | Continuous | Wirewound | Solder Turret | Round | 0.625" (15.88mm) | 0.2497" (6.34mm) | - | Servo Mount |
|
3310H-004-502LPOT 5K OHM 1/4W PLASTIC LINEAR |
4,183 |
|
Datasheet | Pro Audio 3310 | Bulk | Obsolete | 5k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
SPRU1031S20POT 10K OHM 1/2W CARBON LINEAR |
3,540 |
|
Datasheet | SPR | Bulk | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 295° | Carbon | PC Pins | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
1-1624200-7POT 250 OHM 1W WIREWOUND LINEAR |
4,150 |
|
Datasheet | RW, Citec | Bulk | Active | 250 | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 295° | Wirewound | Solder Lug | Slotted | 0.748" (19.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
1-1624200-4POT 10K OHM 1W WIREWOUND LINEAR |
1,130 |
|
Datasheet | RW, Citec | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 295° | Wirewound | Solder Lug | Slotted | 0.630" (16.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
1-1624200-2POT 1K OHM 1W WIREWOUND LINEAR |
4,199 |
|
Datasheet | RW, Citec | Bulk | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 295° | Wirewound | Solder Lug | Slotted | 0.630" (16.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
1-1624200-1POT 1K OHM 1W WIREWOUND LINEAR |
4,606 |
|
Datasheet | RW, Citec | Bulk | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 295° | Wirewound | Solder Lug | Slotted | 0.748" (19.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
2-1624200-2POT 25K OHM 1W WIREWOUND LINEAR |
1,434 |
|
Datasheet | RW, Citec | Bulk | Active | 25k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 295° | Wirewound | Solder Lug | Slotted | 0.630" (16.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
1-1624200-9POT 2.5K OHM 1W WIREWOUND LINEAR |
4,351 |
|
Datasheet | RW, Citec | Bulk | Active | 2.5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 295° | Wirewound | Solder Lug | Slotted | 0.748" (19.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
1-1624200-8POT 250 OHM 1W WIREWOUND LINEAR |
4,453 |
|
Datasheet | RW, Citec | Bulk | Active | 250 | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 295° | Wirewound | Solder Lug | Slotted | 0.630" (16.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3-1624200-4POT 10K OHM 3W WIREWOUND LINEAR |
4,216 |
|
Datasheet | RW, Citec | Bulk | Active | 10k | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 285° | Wirewound | Solder Lug | Slotted | 1.496" (38.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3-1624200-5POT 2K OHM 3W WIREWOUND LINEAR |
2,719 |
|
Datasheet | RW, Citec | Bulk | Active | 2k | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 285° | Wirewound | Solder Lug | Slotted | 0.748" (19.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3-1624200-6POT 2K OHM 3W WIREWOUND LINEAR |
3,946 |
|
Datasheet | RW, Citec | Bulk | Active | 2k | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 285° | Wirewound | Solder Lug | Slotted | 1.496" (38.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3-1624200-7POT 250 OHM 3W WIREWOUND LINEAR |
2,577 |
|
Datasheet | RW, Citec | Bulk | Active | 250 | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 285° | Wirewound | Solder Lug | Slotted | 0.748" (19.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3-1624200-9POT 2.5K OHM 3W WIREWOUND LINEAR |
4,044 |
|
Datasheet | RW, Citec | Bulk | Active | 2.5k | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 285° | Wirewound | Solder Lug | Slotted | 1.496" (38.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
4-1624200-0POT 25K OHM 3W WIREWOUND LINEAR |
3,492 |
|
Datasheet | RW, Citec | Bulk | Active | 25k | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 285° | Wirewound | Solder Lug | Slotted | 0.748" (19.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
4-1624200-2POT 50 OHM 3W WIREWOUND LINEAR |
4,328 |
|
Datasheet | RW, Citec | Bulk | Active | 50 | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 285° | Wirewound | Solder Lug | Slotted | 0.748" (19.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
4-1624200-3POT 500 OHM 3W WIREWOUND LINEAR |
2,166 |
|
Datasheet | RW, Citec | Bulk | Active | 500 | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 285° | Wirewound | Solder Lug | Slotted | 0.748" (19.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
