Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P11A2Q0EBSX00R0236POT PLASTIC |
3,361 |
|
Datasheet | P11A | Box | Active | - | - | - | - | 1.0 | - | - | 2 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.492" (12.50mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
|
P11A2A0BGFY00102MWPOT 1K OHM 1/4W PLASTIC LOG |
3,625 |
|
Datasheet | P11A | Box | Active | 1k | ±20% | 0.25W, 1/4W | - | 1.0 | - | Logarithmic | 2 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Flatted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
P11A2A0BGFY00102MLPOT 1K OHM 1/4W PLASTIC LOG |
3,039 |
|
Datasheet | P11A | Box | Active | 1k | ±20% | 0.25W, 1/4W | - | 1.0 | - | Logarithmic | 2 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Flatted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
99A2A-A24-A15/R51LPOT 10K OHM 2W CERMET LINEAR |
3,321 |
|
Datasheet | 99 | Tray | Active | 10k | ±10% | 2W | Rotary, DPST | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
P11A2AABBSY00502KLPOT 5K OHM 1/4W PLASTIC LOG |
2,488 |
|
Datasheet | P11A | Box | Active | 5k | ±10% | 0.25W, 1/4W | - | 1.0 | - | Logarithmic | 2 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
P11S2V0FGSY00102KLPOT 1K OHM 1/2W CERMET LOG |
1,479 |
|
Datasheet | P11S | Box | Active | 1k | ±10% | 0.5W, 1/2W | - | 1.0 | - | Logarithmic | 2 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11S2VCFLSY00R0173POT CERMET |
2,930 |
|
Datasheet | P11S | Box | Active | - | - | - | - | 1.0 | - | - | 2 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
485030M9652POT 10K OHM 2W PLASTIC LINEAR |
1,213 |
|
Datasheet | 485 | Bulk | Obsolete | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 360° | Conductive Plastic | Solder Lug | Slotted | 2.000" (50.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
P9A2R000DISX1103MAPOT |
4,278 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

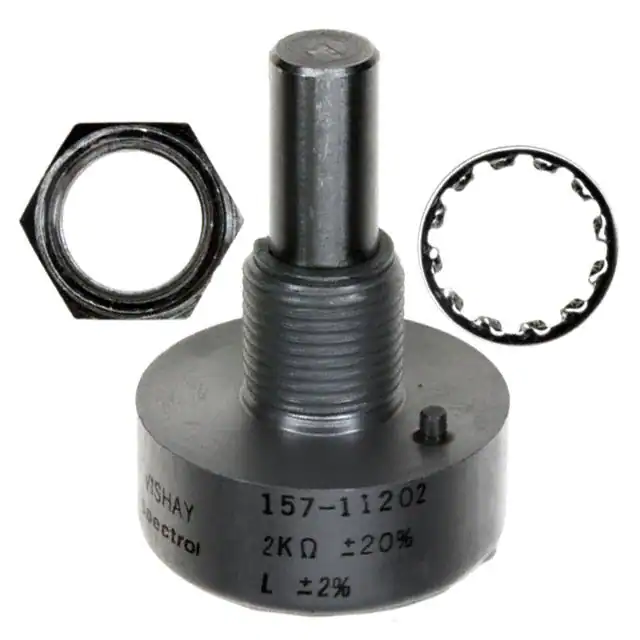

157B202MXPOT 2K OHM 1W PLASTIC LINEAR |
4,752 |
|
Datasheet | 157 | Bulk | Active | 2k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

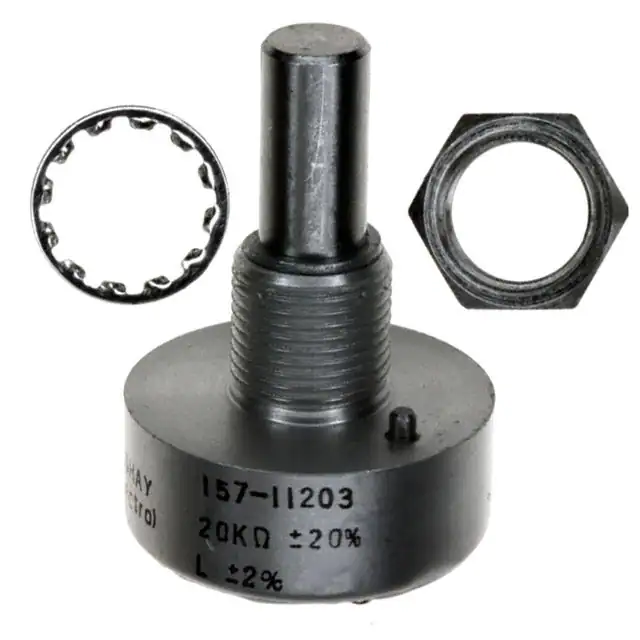

157B203MXPOT 20K OHM 1W PLASTIC LINEAR |
1,927 |
|
Datasheet | 157 | Bulk | Active | 20k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
157B503MXPOT 50K OHM 1W PLASTIC LINEAR |
2,376 |
|
Datasheet | 157 | Bulk | Active | 50k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
P11S2T0ABSY00R0178POT CERMET |
1,102 |
|
Datasheet | P11S | Box | Active | - | - | - | - | 1.0 | - | - | 2 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.492" (12.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11S2T0ABSY00R0096POT CERMET |
1,382 |
|
Datasheet | P11S | Box | Active | - | - | - | - | 1.0 | - | - | 2 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.492" (12.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11S2T0ABSY00R0064POT CERMET |
2,606 |
|
Datasheet | P11S | Box | Active | - | - | - | - | 1.0 | - | - | 2 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.492" (12.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P9A2X000DIRX1103MAPOT |
3,886 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
P9A2X000DFRX1502MAPOT |
2,609 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3549S-1AD-103BPOT 10K OHM 2W WIREWOUND LINEAR |
4,387 |
|
Datasheet | 3549 | Tray | Active | 10k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.811" (20.60mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
P11A2V0FGSX00R0215POT PLASTIC |
1,110 |
|
Datasheet | P11A | Box | Active | - | - | - | - | 1.0 | - | - | 2 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11S2F0GHFY00R0107POT CERMET |
3,390 |
|
Datasheet | P11S | Box | Active | - | - | - | - | 1.0 | - | - | 2 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Flatted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
