Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RV6NAYSD253APOT 25K OHM 1/2W CARBON LINEAR |
209 |
|
Datasheet | RV6 | Bulk | Active | 25k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
RV6NAYSD503APOT 50K OHM 1/2W CARBON LINEAR |
103 |
|
Datasheet | RV6 | Bulk | Active | 50k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
RV4NAYSD353APOT 35K OHM 2W CARBON LINEAR |
137 |
|
Datasheet | RV4 | Bulk | Active | 35k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
RV4NAYSD752APOT 7.5K OHM 2W CARBON LINEAR |
117 |
|
Datasheet | RV4 | Bulk | Active | 7.5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|

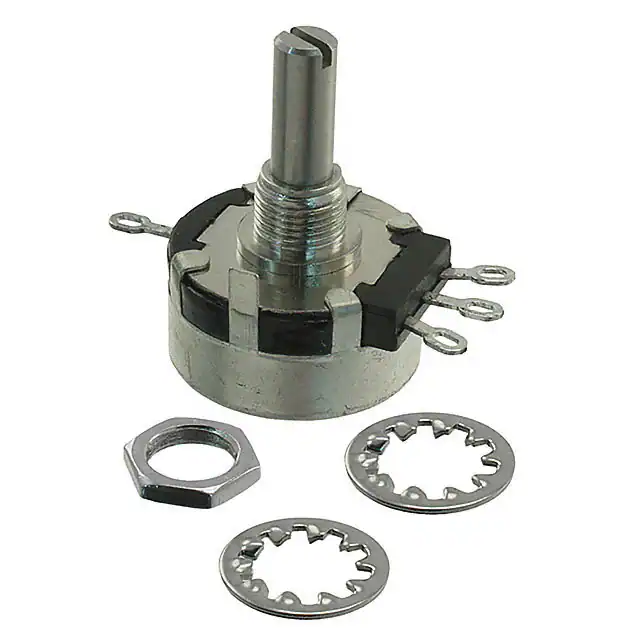

P271-DS21BR10KPOT 10K OHM 2W PLASTIC LINEAR |
847 |
|
Datasheet | P271 | Tray | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3590S-1-203LPOT 20K OHM 2W WIREWOUND LINEAR |
238 |
|
Datasheet | 3590 | Bulk | Active | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
3590S-2-203LPOT 20K OHM 2W WIREWOUND LINEAR |
156 |
|
Datasheet | 3590 | Bulk | Active | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3590S-2-202LPOT 2K OHM 2W WIREWOUND LINEAR |
462 |
|
Datasheet | 3590 | Bulk | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3590S-1-102LPOT 1K OHM 2W WIREWOUND LINEAR |
126 |
|
Datasheet | 3590 | Bulk | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
|
3590S-2-252LPOT 2.5K OHM 2W WIREWOUND LINEAR |
116 |
|
Datasheet | 3590 | Tray | Active | 2.5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3590P-1-103LPOT 10K OHM 2W WIREWOUND LINEAR |
207 |
|
Datasheet | 3590 | Bulk | Active | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | Side Adjustment | ±50ppm/°C | 3600° | Wirewound | PC Pins | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
RV4NAYSJ252APOT 2.5K OHM 2W CARBON LINEAR |
124 |
|
Datasheet | RV4 | Bulk | Active | 2.5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 2.000" (50.80mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
RV4LAYSA253APOT 25K OHM 2W CARBON LINEAR |
118 |
|
Datasheet | RV4 | Bulk | Active | 25k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
M-22E10 1KPOT 1K OHM 2W WIREWOUND LINEAR |
155 |
|
Datasheet | M-22 | Bulk | Active | 1k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
|
M-22E10 2KPOT 2K OHM 2W WIREWOUND LINEAR |
141 |
|
Datasheet | M-22 | Bulk | Active | 2k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
53RAD-R16-B15LPOT 10K OHM 1/2W PLASTIC LINEAR |
223 |
|
Datasheet | Pro Audio 53 | Bulk | Active | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±1000ppm/°C | 290° | Conductive Plastic | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
M-22E10-050 10KPOT 10K OHM 2W WIREWOUND LINEAR |
182 |
|
Datasheet | M-22 | Bulk | Active | 10k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
M-22E10-050 1KPOT 1K OHM 2W WIREWOUND LINEAR |
149 |
|
Datasheet | M-22 | Bulk | Active | 1k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
M-22E10 10KPOT 10K OHM 2W WIREWOUND LINEAR |
134 |
|
Datasheet | M-22 | Bulk | Active | 10k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
P16NP472MAB15POT 4.7K OHM 1W CERMET LINEAR |
284 |
|
Datasheet | P16 | Bulk | Active | 4.7k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
