Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT15WH06-104A2020-6NEPOT 100K OHM 1/4W CARBON LINEAR |
3,000 |
|
Datasheet | PT-15 | Bulk | Active | 100k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 265° | Carbon | PC Pins | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
PT15WH06-253A2020-6NEPOT 25K OHM 1/4W CARBON LINEAR |
1,594 |
|
Datasheet | PT-15 | Bulk | Active | 25k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 265° | Carbon | PC Pins | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
PC16SH-10CP11-205A3030-TAPOT 2M OHM 1/5W CARBON LINEAR |
3,548 |
|
Datasheet | PC-16 | Bulk | Active | 2M | ±30% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Carbon | Solder Lug | Knurled | 0.787" (20.00mm) | 0.246" (6.25mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-10IP06-201A2020-TAPOT 200 OHM 1/5W CARBON LINEAR |
2,466 |
|
Datasheet | PC-16 | Bulk | Active | 200 | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

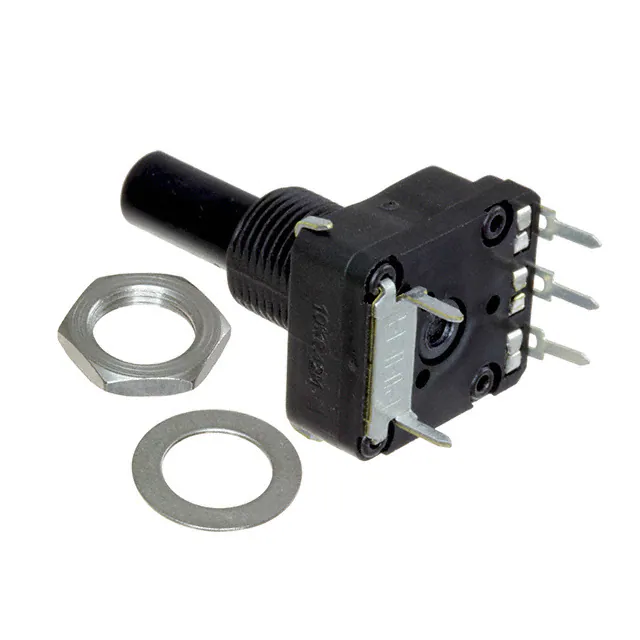

PC16SV-10IP12-103A2020-TAPOT 10K OHM 1/5W CARBON LINEAR |
4,046 |
|
Datasheet | PC-16 | Bulk | Active | 10k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Flatted | 0.846" (21.50mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PT6WV-471A2020POT 470 OHM 1/10W CARBON LINEAR |
779 |
|
Datasheet | PT-6 | Bulk | Active | 470 | ±20% | 0.1W, 1/10W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±300ppm/°C | 235° | Carbon | PC Pins | - | - | - | - | Through Hole |
|
PC16SH-10IP06-472A2020-TAPOT 4.7K OHM 1/5W CARBON LINEAR |
3,016 |
|
Datasheet | PC-16 | Bulk | Active | 4.7k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PC16SH-07IP21-475A2020-TAPOT 4.7M OHM 1/5W CARBON LINEAR |
3,253 |
|
Datasheet | PC-16 | Bulk | Active | 4.7M | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Flatted | 0.492" (12.50mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
PC16DH-07CP06-104A2020-TAPOT 100K OHM 1/5W CARBON LINEAR |
3,844 |
|
Datasheet | PC-16 | Bulk | Active | 100k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 2 | User Defined | ±300ppm/°C | 300° | Carbon | Solder Lug | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
PC16SH-07IP06-103A2020-TAPOT 10K OHM 1/5W CARBON LINEAR |
2,187 |
|
Datasheet | PC-16 | Bulk | Active | 10k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
