Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F78SC502POT 5K OHM 1W PLASTIC LINEAR |
3,950 |
|
Datasheet | MKV, F78S | Bulk | Active | 5k | ±10% | 1W | None | 1.0 | Low Torque | Linear | 1 | User Defined | - | 360° | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.125" (3.18mm) | - | Servo Mount |
|
|
SPSG121P103X-APOT 10K OHM 1W CERMET LINEAR |
4,977 |
|
- |
SP | Bulk | Obsolete | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 280° | Cermet | Solder Lug | Round | - | 0.125" (3.18mm) | - | Panel Mount |
|
|
JA1N056S202UAPOT 2K OHM 2.25W CARBON LINEAR |
1,371 |
|
Datasheet | J | Bulk | Obsolete | 2k | ±10% | 2.25W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
49M1KPOT 1K OHM 1.5W WIREWOUND LINEAR |
1,141 |
|
- |
49M | Bulk | Obsolete | 1k | ±5% | 1.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
62JA20KPOT 20K OHM 2W WIREWOUND LINEAR |
2,640 |
|
Datasheet | 62 | Bulk | Obsolete | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.937" (23.81mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|

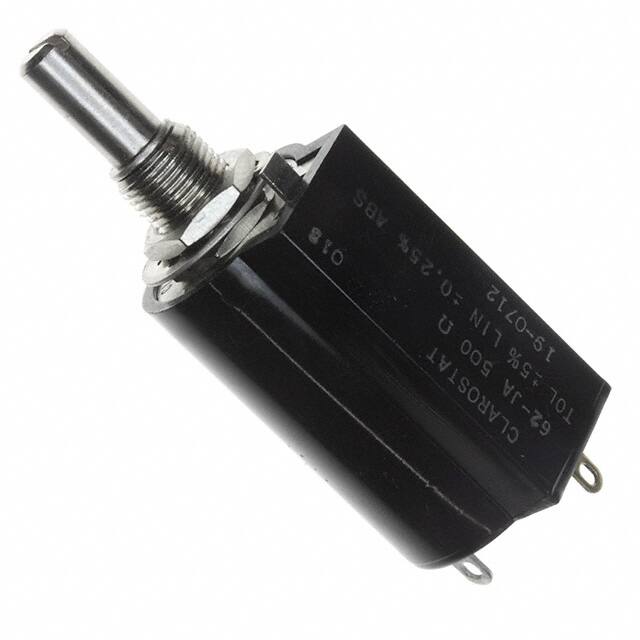

62JA500POT 500 OHM 2W WIREWOUND LINEAR |
4,235 |
|
Datasheet | 62 | Bulk | Obsolete | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.937" (23.81mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
62JA2500POT 2.5K OHM 2W WIREWOUND LINEAR |
1,731 |
|
Datasheet | 62 | Bulk | Obsolete | 2.5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.937" (23.81mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
49M9100POT 100 OHM 1.5W WIREWOUND LIN |
4,378 |
|
- |
49M | Bulk | Obsolete | 100 | ±5% | 1.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.438" (11.12mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
49M910KPOT 10K OHM 1.5W WIREWOUND LIN |
3,599 |
|
- |
49M | Bulk | Obsolete | 10k | ±5% | 1.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.438" (11.12mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
MC6CX1A502X001SPEED & POSITION-AEROSPACE ROTAR |
1,042 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
