Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

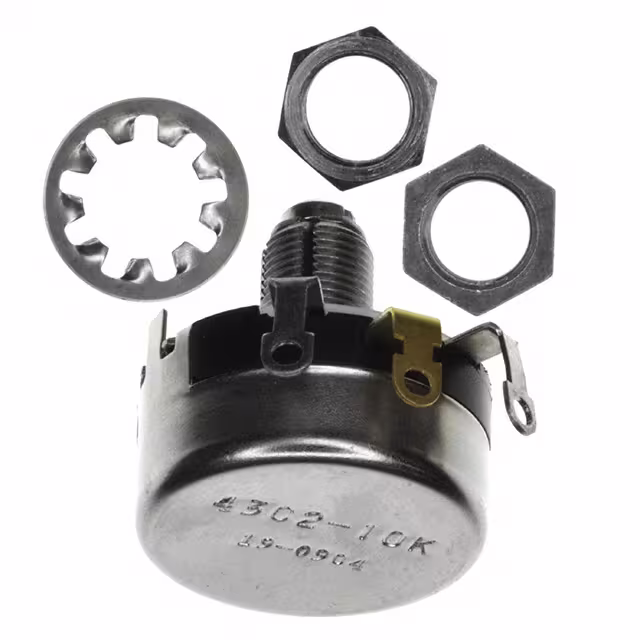

43C210KPOT 10K OHM 2W WIREWOUND LINEAR |
2,630 |
|
Datasheet | 43 | Bulk | Obsolete | 10k | ±5% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.625" (15.88mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
485000M8911POT 1M OHM 2W PLASTIC LINEAR |
2,585 |
|
Datasheet | 485 | Bulk | Obsolete | 1M | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
WA2G032S104UAPOT 100K OHM 1/4W PLASTIC LINEAR |
1,998 |
|
- |
W | Bulk | Obsolete | 100k | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Conductive Plastic | Solder Lug | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
WA2L040S202UCPOT 2K OHM 1/4W PLASTIC LINEAR |
4,403 |
|
- |
W | Bulk | Obsolete | 2k | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Conductive Plastic | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

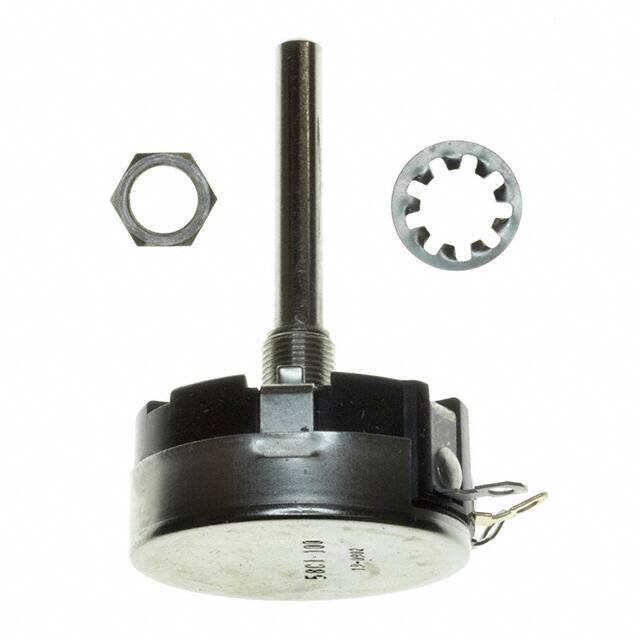

58C1100POT 100 OHM 4W WIREWOUND LINEAR |
4,900 |
|
Datasheet | 58 | Bulk | Obsolete | 100 | ±5% | 4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 2.000" (50.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

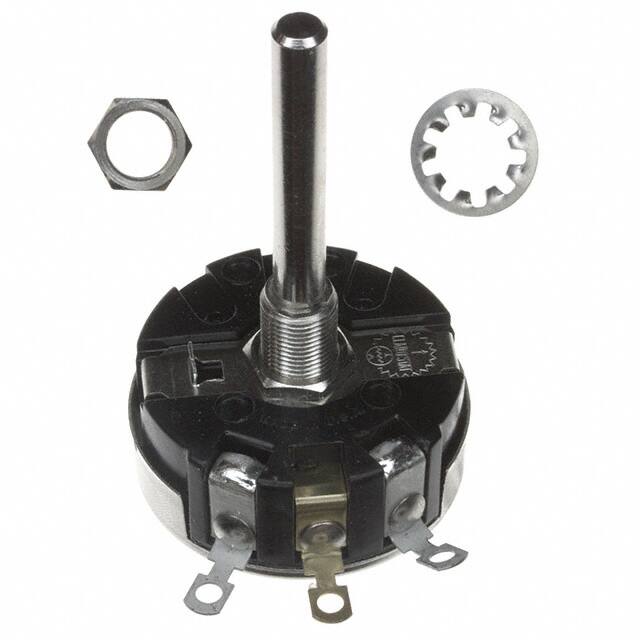

58C1500POT 500 OHM 4W WIREWOUND LINEAR |
2,436 |
|
Datasheet | 58 | Bulk | Obsolete | 500 | ±5% | 4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 2.000" (50.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
409N250POT 1W CERMET LINEAR |
4,492 |
|
- |
409 | Bulk | Obsolete | - | - | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | - | Cermet | PC Pins | Slotted | - | 0.250" (6.35mm) | 1/4-32 | Panel Mount |
|
381NS1000POT 1K OHM 1W PLASTIC LINEAR |
1,019 |
|
Datasheet | 381 | Bulk | Obsolete | 1k | ±10% | 1W | Rotary, SPST | 1.0 | Long Life | Linear | 1 | User Defined | - | 320° | Conductive Plastic | Solder Lug | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
381NS100KPOT 100K OHM 1W PLASTIC LINEAR |
1,643 |
|
Datasheet | 381 | Bulk | Obsolete | 100k | ±10% | 1W | Rotary, SPST | 1.0 | Long Life | Linear | 1 | User Defined | - | 320° | Conductive Plastic | Solder Lug | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
381NS10KPOT 10K OHM 1W PLASTIC LINEAR |
4,158 |
|
Datasheet | 381 | Bulk | Obsolete | 10k | ±10% | 1W | Rotary, SPST | 1.0 | Long Life | Linear | 1 | User Defined | - | 320° | Conductive Plastic | Solder Lug | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
