Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
300SP1J1IOM7QESWITCH ROCKER SPDT 5A 120V |
2,647 |
|
- |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300SP1J1REDM6QESWITCH ROCKER SPDT 5A 120V |
3,037 |
|
Datasheet | 300 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
400AWMSP1R1VS2QESWITCH ROCKER SPDT 3A 120V |
1,110 |
|
Datasheet | 400A | Tray | Active | Through Hole | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300SP4J1BLKM2RESWITCH ROCKER DPDT 0.4VA 20V |
1,818 |
|
Datasheet | 300 | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP1J3GRYVS5QESWITCH ROCKER DPDT 5A 120V |
4,762 |
|
Datasheet | 300 | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
400BWMSP4R2BLKSM6RESWITCH ROCKER DPDT 0.4VA 20V |
3,499 |
|
Datasheet | 400B | Bulk | Active | Surface Mount, Right Angle | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C | - |
|
|
400AWMDP3R1M2QESWITCH ROCKER DPDT 3A 120V |
2,623 |
|
Datasheet | 400A | Tray | Active | Through Hole | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300SP1J1BLKM7QE WITH I/OSWITCH ROCKER SPDT 5A 120V |
2,845 |
|
- |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP1J1IOVS2QESWITCH ROCKER DPDT 5A 120V |
1,252 |
|
Datasheet | 300 | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

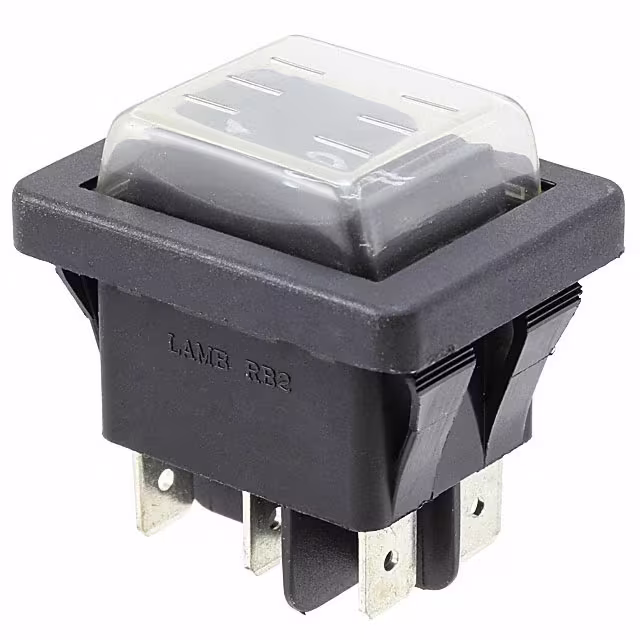

RB246E112S-ACCF02-1SWITCH ROCKER DPDT 16A 125V |
1,188 |
|
Datasheet | RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | Sealing Boot | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
