Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

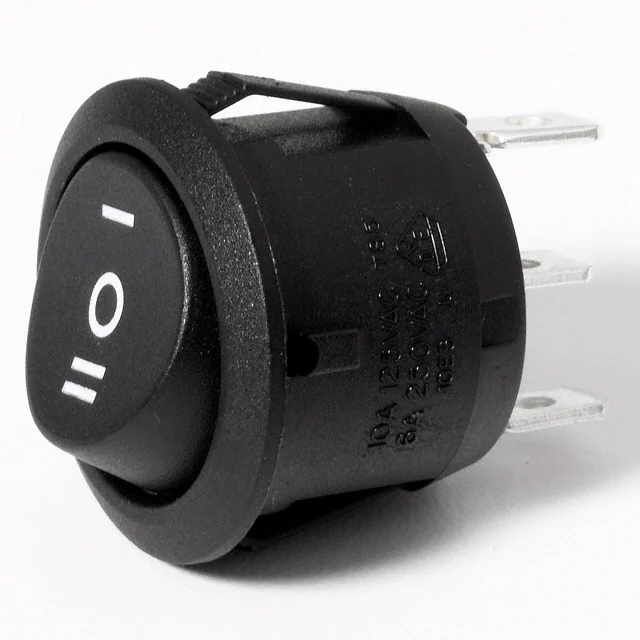

RR3112DBLKBLKNEFOSWITCH ROCKER SPDT 16A 125V |
3,492 |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
RR3112FBLKBLKNAF0SWITCH ROCKER SPST-NO 16A 125V |
1,327 |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
RR3112DBLKBLKNAF0SWITCH ROCKER SPDT 16A 125V |
3,159 |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Round | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
RR3112CBLKBLKNEF0SWITCH ROCKER SPDT 16A 125V |
2,814 |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
R4FBLKBLKEF0SWITCH ROCKER SPST-NO 20A 125V |
4,520 |
|
Datasheet | R4 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
R4HBLKBLKEF0SWITCH ROCKER SPST-NC 20A 125V |
2,826 |
|
Datasheet | R4 | Bulk | Active | Panel Mount, Snap-In | SPST-NC | On-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
RR3112XBLKBLKEF0SWITCH ROCKER 16A 125V |
3,570 |
|
- |
RR3112 | Bulk | Active | Panel Mount, Snap-In | - | - | 16A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
RB242C1100-246SWITCH ROCKER DPST 16A 125V |
4,373 |
|
Datasheet | RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Neon, Blue | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
|
R1973BWHTWHTFF0SWITCH ROCKER DPST 9A 125V |
4,652 |
|
Datasheet | R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
|
R1973ABLKREDEF0SWITCH ROCKER SPST 9A 125V |
3,798 |
|
Datasheet | R1973 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
