Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RRA12C1921SWITCH ROCKER DPST 15A 125V |
2,825 |
|
Datasheet | RRA, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Round | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
|
RR511D1123SWITCH ROCKER SPST 20A 125V |
2,862 |
|
Datasheet | RR5, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Round | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | cUL, UL |
|
|
RA45EC1821SWITCH ROCKER DPST-NO 16A 125V |
3,262 |
|
Datasheet | RA4, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Concave (Curved) | Green | O - | - | - | Solder Lug | - | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, UL |
|
|
RSC241C1021-147SWITCH ROCKER SPST 15A 125V |
2,726 |
|
Datasheet | RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | O - | Neon, Blue | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.20mm x 12.10mm | -20°C ~ 105°C | CSA, UL |
|
|
RR551D1121SWITCH ROCKER SPST 20A 125V |
2,842 |
|
Datasheet | RR5, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Round | Black | O - | - | - | Solder Lug | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | cUL, UL |
|
|
RR3112ABLKBRINEFOSWITCH ROCKER SPST 16A 125V |
1,033 |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | - | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|

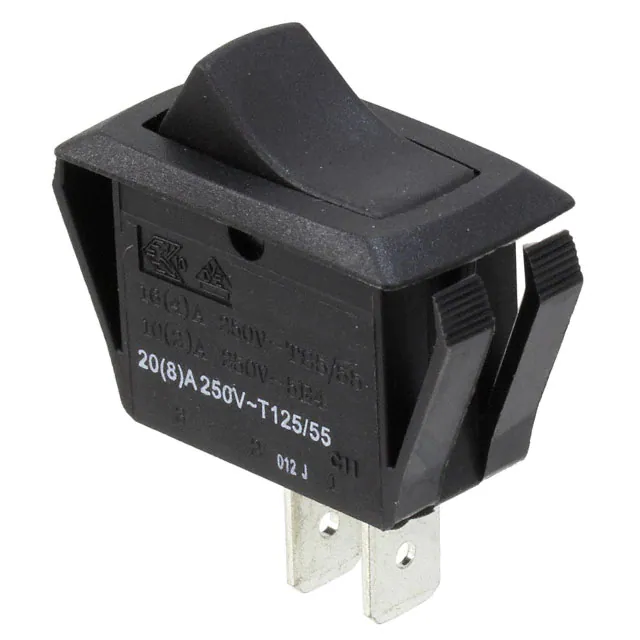

RSC441D1100SWITCH ROCKER SPST 20A 125V |
4,553 |
|
Datasheet | RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 12.10mm | -20°C ~ 105°C | CSA, UL |
|
|
RR551D1921SWITCH ROCKER SPST 20A 125V |
2,795 |
|
Datasheet | RR5, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Round | Red | O - | - | - | Solder Lug | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | cUL, UL |
|

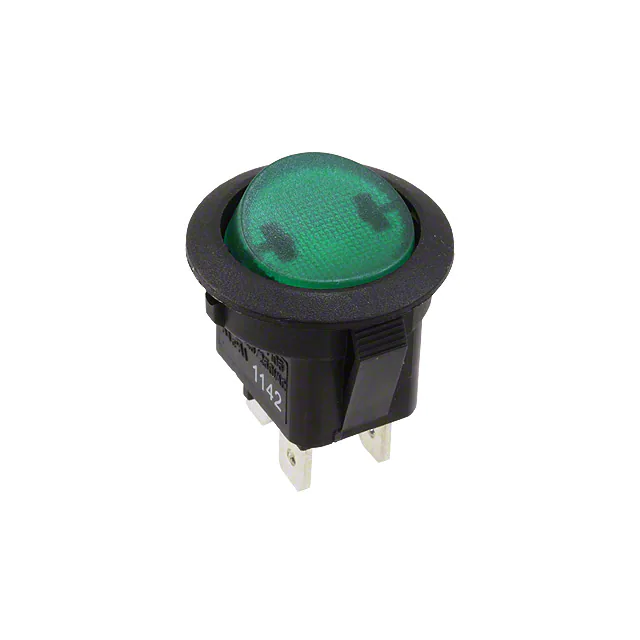

RR812C1000-136SWITCH ROCKER DPST 16A 125V |
4,102 |
|
Datasheet | RR8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
|
RSC241D1A83SWITCH ROCKER SPST 20A 125V |
3,126 |
|
Datasheet | RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 27.20mm x 12.10mm | -20°C ~ 105°C | CSA, UL |
