Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RR3112BBLKGRNGRNEF4SWITCH ROCKER SPST 16A 125V |
3,112 |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Green | No Marking | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
RR3112BBLKREDREDEF4SWITCH ROCKER SPST 16A 125V |
3,807 |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Red | No Marking | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
RR3112BBLKYELYELEF4SWITCH ROCKER SPST 16A 125V |
4,700 |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Yellow | No Marking | LED, Yellow | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
300AWDP3J1BLKM6RESWITCH ROCKER DPDT 0.4VA 20V |
3,081 |
|
Datasheet | 300A | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300AWSP3J6VS2QESWITCH ROCKER SPDT 5A 120V |
4,305 |
|
Datasheet | 300A | Bulk | Active | Through Hole | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP2R7BLKM1REBLKSWITCH ROCKER DPDT 0.4VA 20V |
3,684 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP3R7BLKM1REBLKSWITCH ROCKER DPDT 0.4VA 20V |
4,797 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP8R1BLKM1QESWITCH ROCKER DP3T 5A 120V |
3,934 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Flange | DP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|

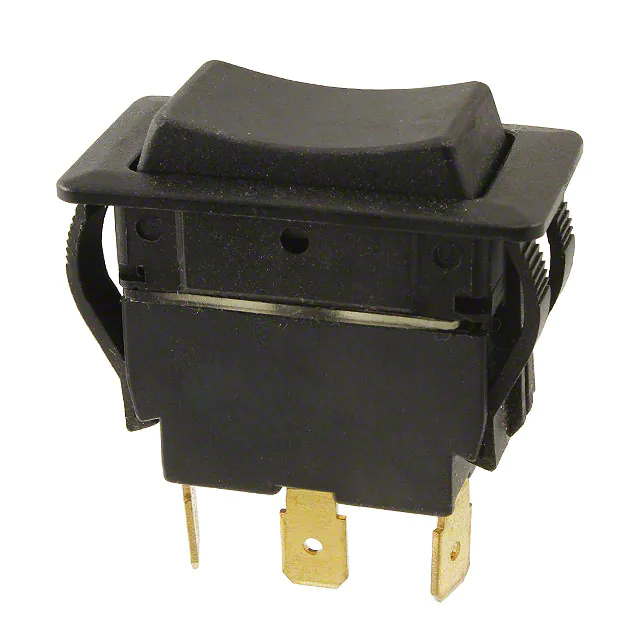

RVW4DD1100SWITCH ROCKER SPDT 20A 125V |
4,281 |
|
Datasheet | RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
300DP1J1VS2RESWITCH ROCKER DPDT 0.4VA 20V |
4,600 |
|
Datasheet | 300 | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
