Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
300DP1R8BLKM1QESWITCH ROCKER DPDT 5A 120V |
1,225 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP1R8WHTM1QESWITCH ROCKER DPDT 5A 120V |
2,843 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300SP4J1BLKVS2RESWITCH ROCKER SPDT 0.4VA 20V |
1,542 |
|
Datasheet | 300 | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300AWSP3R1M1RESWITCH ROCKER SPDT 0.4VA 20V |
1,541 |
|
Datasheet | 300A | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|
|
300AWSP3R2BLKM1RESWITCH ROCKER SPDT 0.4VA 20V |
2,066 |
|
Datasheet | 300A | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

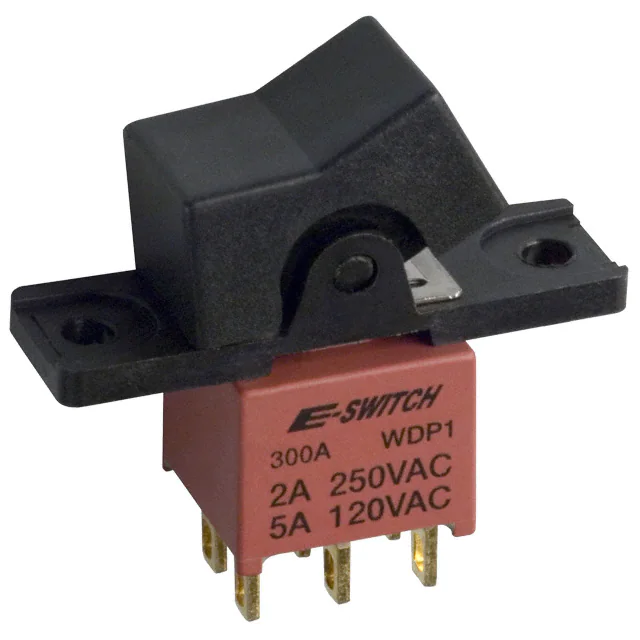

300AWDP3R1BLKM1QESWITCH ROCKER DPDT 5A 120V |
4,708 |
|
Datasheet | 300A | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|
|
300SP4R7BLKM1QEBLKSWITCH ROCKER SPDT 5A 120V |
1,173 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300SP5R7BLKM1QEBLKSWITCH ROCKER SPDT 5A 120V |
3,298 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP2R7REDM1QEBLKSWITCH ROCKER DPDT 5A 120V |
3,867 |
|
Datasheet | 300 | Tray | Active | Panel Mount, Snap-In | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
400MSP6R6BLKM7QESWITCH ROCKER SPST 3A 120V |
3,469 |
|
Datasheet | 400 | Bulk | Active | Through Hole, Right Angle, Vertical | SPST | On-Off | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 7.11mm | -30°C ~ 85°C | cULus |
