Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GRB260B601BBNNSWITCH ROCKER DPDT 20A 125V |
2,170 |
|
Datasheet | GRB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | cULus, ENEC |
|
GRB271E1BBNNNNSWITCH ROCKER DPDT 20A 125V |
4,997 |
|
Datasheet | GRB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
GRSH-2012-2600SWITCH ROCKER SPDT 16A 125V |
1,883 |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
GRSH-2011-2600SWITCH ROCKER SPST 16A 125V |
1,010 |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
GR-2023A-0003SWITCH ROCKER DPDT 13A 125V |
2,401 |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 13A (AC) | 125 V | - | Concave (Standard V) | Gray | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 27.20mm x 22.15mm | -20°C ~ 105°C | - |
|

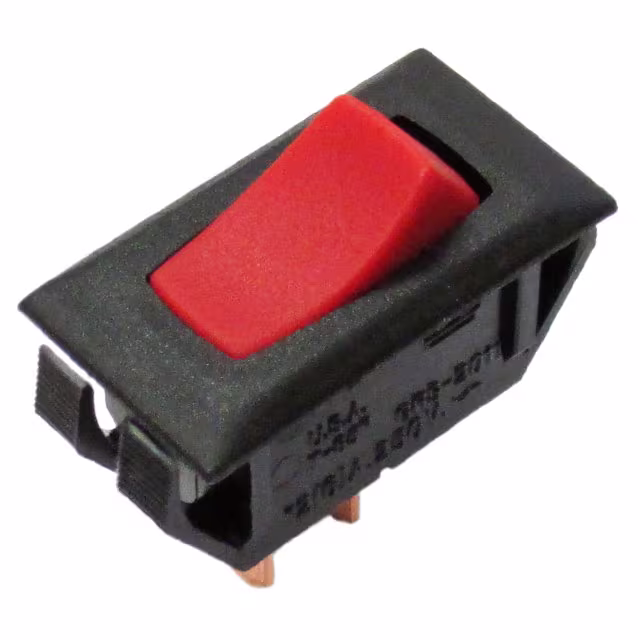

GRS-2011-2601SWITCH ROCKER SPST 16A 125V |
3,977 |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

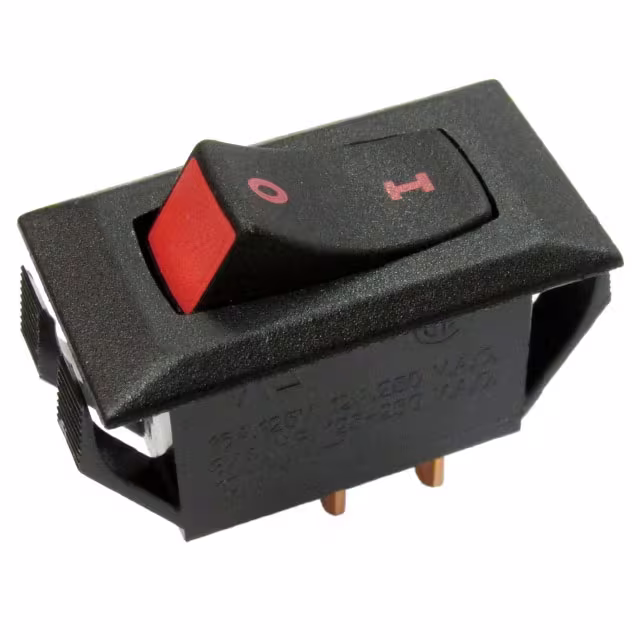

GRS-2011-3007SWITCH ROCKER SPST 16A 125V |
3,680 |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.23mm x 12.19mm | -20°C ~ 105°C | - |
|
GRS-2013A-2001SWITCH ROCKER SPDT 13A 125V |
1,471 |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

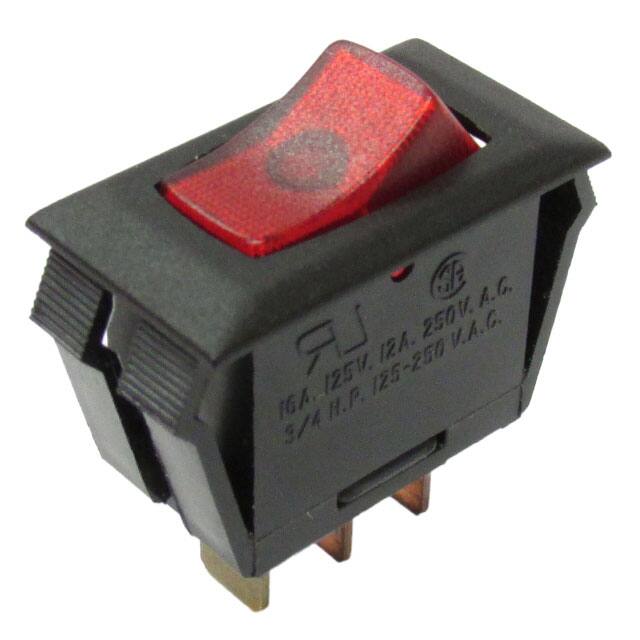

GRL-2011-0000SWITCH ROCKER SPST 16A 125V |
3,316 |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

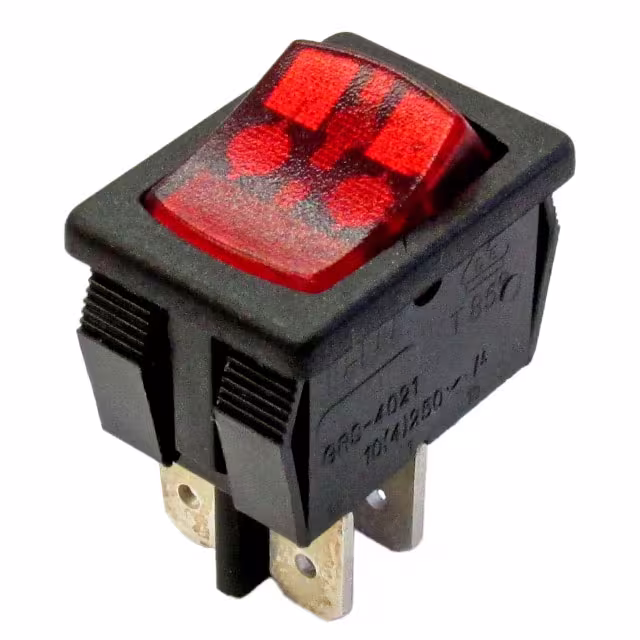

GRL-4021-0007SWITCH ROCKER DPST 16A 125V |
3,165 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
