Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

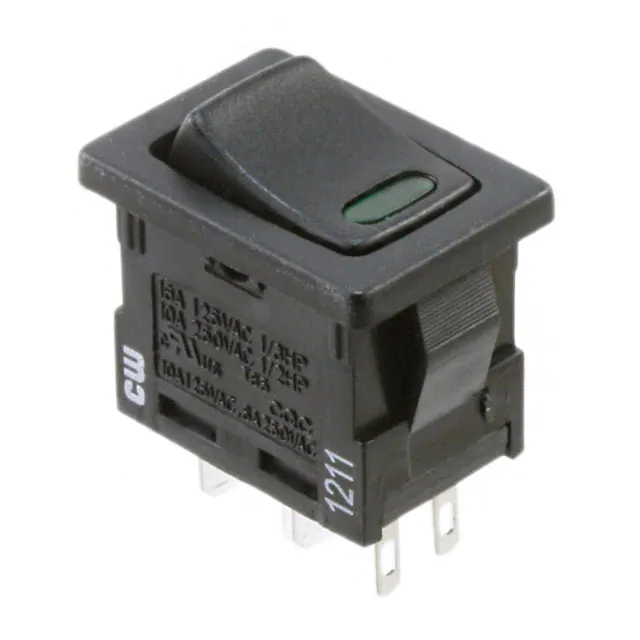

GRB066L02BBGGL1SWITCH ROCKER SPST 16A 125V |
1,700 |
|
Datasheet | GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 20A (DC) | 125 V | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.2 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | - |
|
GRS-4011-0012SWITCH ROCKER SPST 16A 125V |
3,279 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | - | - |
|

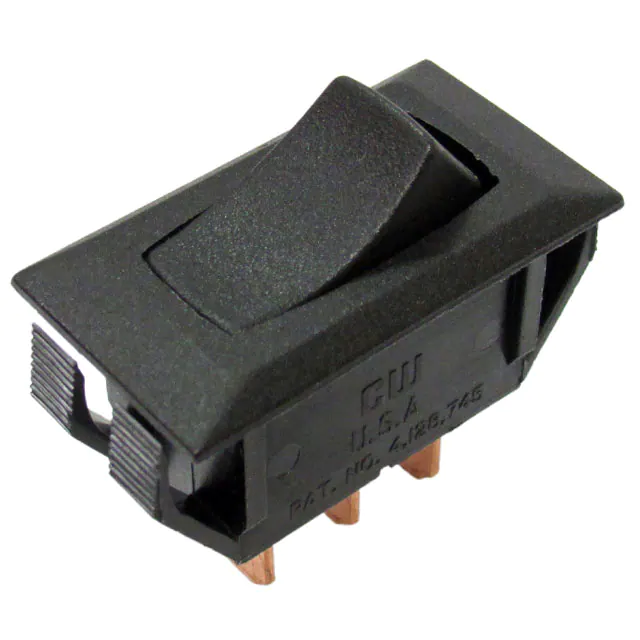

GRS-2012-2600SWITCH ROCKER SPDT 16A 125V |
2,123 |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
GRSV-4011-0133SWITCH ROCKER SPST 8A 125V |
3,686 |
|
Datasheet | 4000 | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Bisque, Brown-Gray | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | - | - |
|

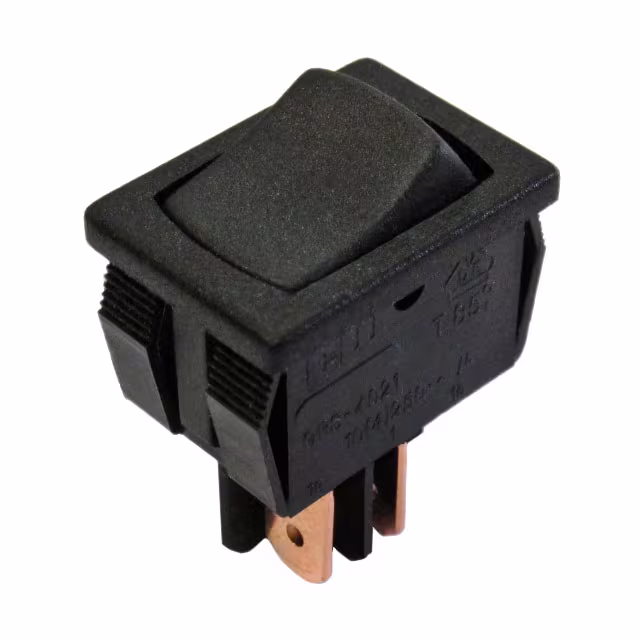

GRS-4011B-0014SWITCH ROCKER SPST-NO 13A 125V |
4,071 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4011-0001SWITCH ROCKER SPST 8A 125V |
4,492 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4011B-0001SWITCH ROCKER SPST-NO 8A 125V |
1,900 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4011B-0015SWITCH ROCKER SPST-NO 13A 125V |
3,027 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4011C-0001SWITCH ROCKER SPST-NC 8A 125V |
4,436 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPST-NC | On-Mom | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4011C-0002SWITCH ROCKER SPST-NC 8A 125V |
4,099 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPST-NC | On-Mom | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
