Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASR11R11P2CQSWITCH ROCKER SPDT 5A 120V |
281 |
|
Datasheet | ASR | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C | cULus |
|
A8L-21-15N1SWITCH ROCKER DPST 10A 125V |
297 |
|
Datasheet | A8L | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 55°C | cULus, EN, UL |
|
GW12LCVSWITCH ROCKER SPDT 0.4VA 28V |
164 |
|
Datasheet | GW | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

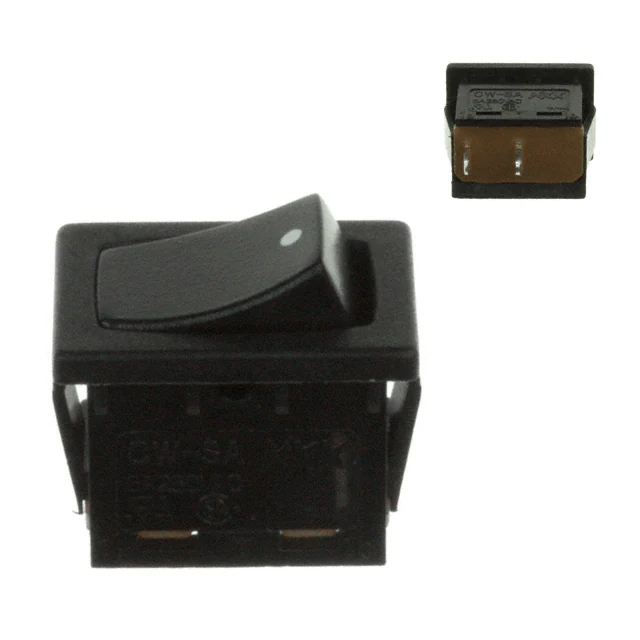

CWSA11AAN3SSWITCH ROCKER SPST 6A 250V |
207 |
|
Datasheet | CWSA | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | Dot | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|
A8L-21-13N2SWITCH ROCKER DPST 10A 125V |
285 |
|
Datasheet | A8L | Bulk | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 17.50mm | -20°C ~ 55°C | cULus, EN, UL |
|
CR102J4RS215QF7SWITCH ROCKER SPST 16A 125V |
810 |
|
Datasheet | CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|
400MSP1R1BLKM6QESWITCH ROCKER SPDT 3A 120V |
193 |
|
Datasheet | 400 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|
|
400BWMSP1R2BLKSM6QE-Z103SWITCH ROCKER SPDT 3A 120V |
399 |
|
Datasheet | 400B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C | - |
|

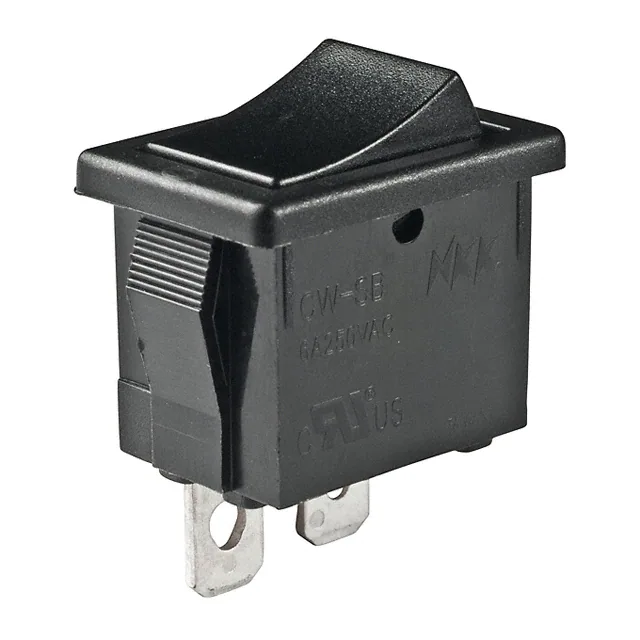

CWSB11AAFSWITCH ROCKER SPST 6A 250V |
911 |
|
Datasheet | CWSB | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|

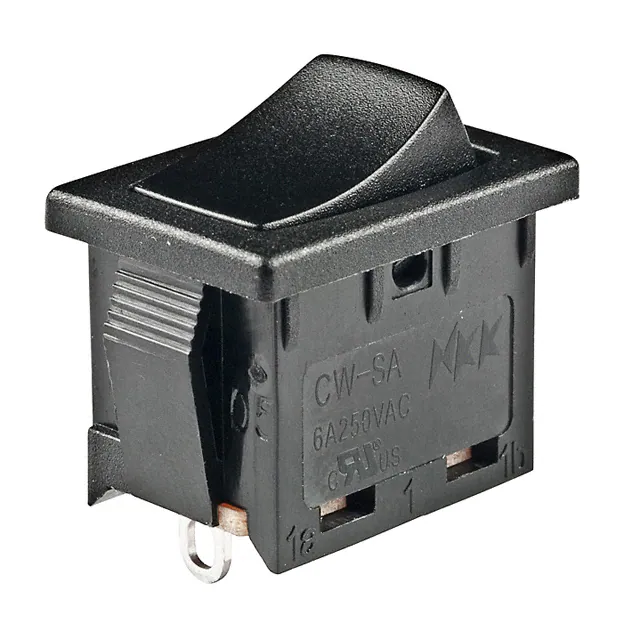

CWSA12AANSSWITCH ROCKER SPDT 6A 250V |
316 |
|
Datasheet | CWSA | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 6A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|
RB911-RB-B-0-NSWITCH ROCKER SPDT 16A 125V |
226 |
|
Datasheet | R | Box | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | BEAB, CSA, DEMKO, FIMKO, NEMKO, SEMKO, SEV, TUV, UL, VDE |
|
D101J12S215DQASWITCH ROCKER SPDT 4A 125V |
159 |
|
Datasheet | D | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 4A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
400MSP1R6BLKM71QESWITCH ROCKER SPDT 3A 120V |
312 |
|
Datasheet | 400 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 7.11mm | -30°C ~ 85°C | cULus |
|
400MSP1R1BLKM7QESWITCH ROCKER SPDT 3A 120V |
301 |
|
Datasheet | 400 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|
471005264152SWITCH ROCKER SPST 16A 250V |
212 |
|
Datasheet | WS-RSTV | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 10A (DC) | 250 V | 28 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | 0°C ~ 85°C | CQC, ENEC, UL |
|
400MSP1R6BLKM6RESWITCH ROCKER SPDT 0.4VA 20V |
460 |
|
Datasheet | 400 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | cULus |
|
SW-R3-2B-B-5-G-14SWITCH ROCKER SPDT 0.4VA 20V |
108 |
|
Datasheet | SW | Box | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C | - |
|
|
C1300AABRSWITCH ROCKER SPST 20A 250V |
456 |
|
Datasheet | 1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
400UDP1R1BLKM6RESWITCH ROCKER DPDT 0.4VA 20V |
1,728 |
|
Datasheet | 400U | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
GRL-4011-1600SWITCH ROCKER SPST 16A 125V |
245 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
