Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101J1AV2BE2SWITCH ROCKER SPDT 0.4VA 20V |
4,306 |
|
Datasheet | 7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
T101J6AVGE2SWITCH ROCKER SPDT 3A 120V |
4,219 |
|
Datasheet | T | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | UL |
|
7201J26ZBE22SWITCH ROCKER DPDT 0.4VA 20V |
3,175 |
|
Datasheet | 7000 | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
ET05J6ABE2SWITCH ROCKER SPDT 0.4VA 20V |
4,568 |
|
Datasheet | ET | Tray | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|

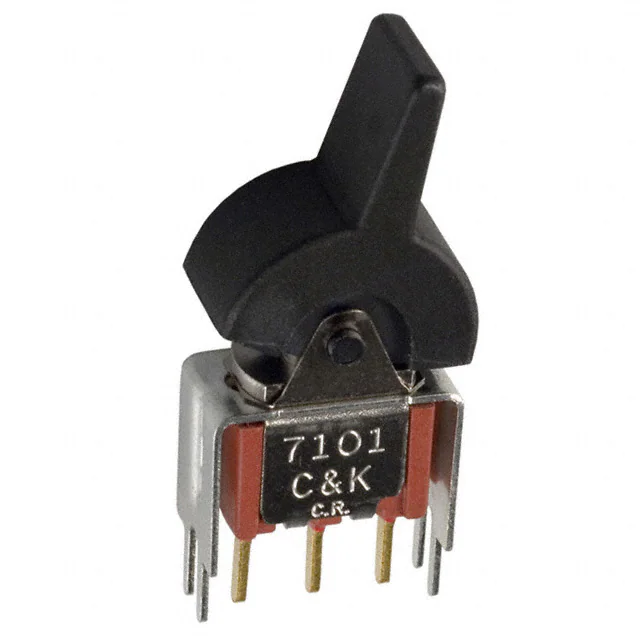

7101J60V3BE2SWITCH ROCKER SPDT 0.4VA 20V |
3,184 |
|
Datasheet | 7000 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

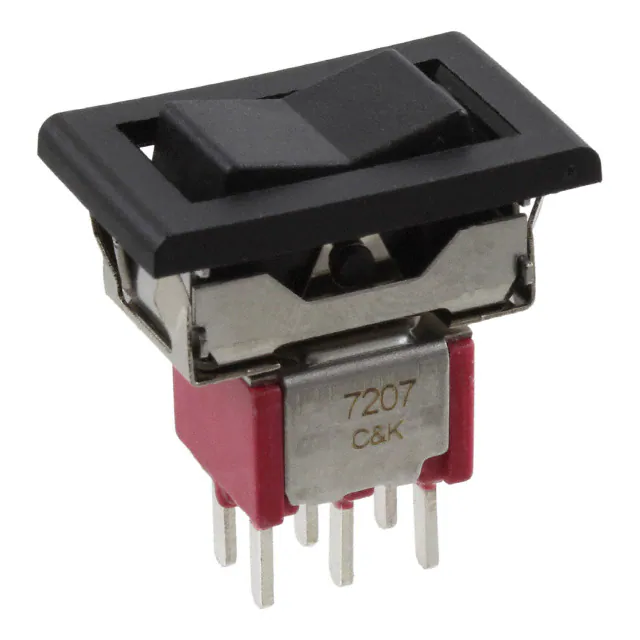

7207J16Z3QE22SWITCH ROCKER DPDT 5A 120V |
1,218 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
7203J16ZQE22SWITCH ROCKER DPDT 5A 120V |
3,539 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
7205J16ZQE22SWITCH ROCKER DPDT 5A 120V |
1,042 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
E201J1V6QE3SWITCH ROCKER DPDT 7.5A 125V |
1,594 |
|
Datasheet | E | Bulk | Active | Through Hole | DPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

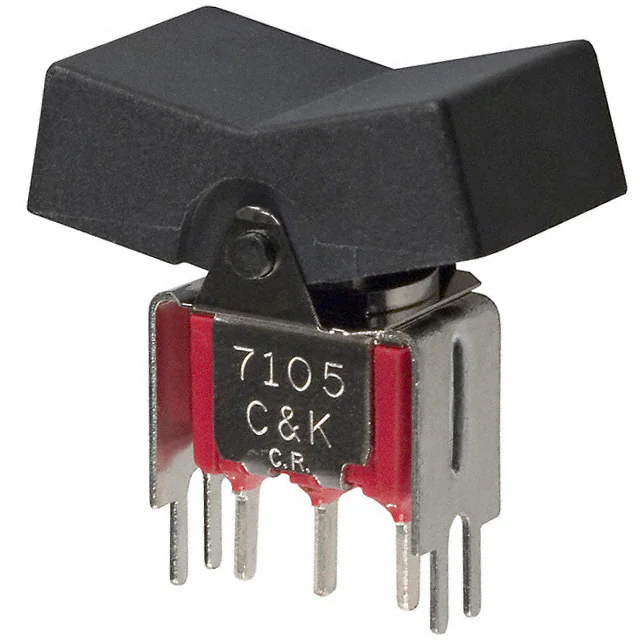

7105J3V3QE2SWITCH ROCKER SPDT 5A 120V |
3,843 |
|
Datasheet | 7000 | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
