Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RR11122ACSWITCH ROCKER SPST 15A 125V |
117 |
|
Datasheet | RR1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -40°C ~ 105°C | - |
|
GRS-2011-3000SWITCH ROCKER SPST 16A 125V |
586 |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.23mm x 12.19mm | -20°C ~ 105°C | - |
|
SLP8A20SWITCH ROCKER SPST 8A 127V |
242 |
|
Datasheet | SLP8A | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 8A (AC) | 127 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 65°C | CQC, cULus, ENEC |
|
RA812C1900SWITCH ROCKER DPST 16A 125V |
2,925 |
|
Datasheet | RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
SW-R2-3A-F-LR13-6SWITCH ROCKER DPST 10A 125V |
128 |
|
Datasheet | SW | Bag | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.20mm x 20.00mm | -25°C ~ 85°C | - |
|
RRA1534400SWITCH ROCKER SPDT 10A 125V |
2,817 |
|
Datasheet | RRA, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Round | Gray | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
RA811C1100SWITCH ROCKER SPST 16A 125V |
890 |
|
Datasheet | RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
R1966ABLKREDIFSWITCH ROCKER SPST 15A 125V |
5,659 |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Red | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
GRS-4013A-0021SWITCH ROCKER SPDT 13A 125V |
341 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
H8600VBAAASWITCH ROCKER SPST 10A 250V |
1,999 |
|
Datasheet | 8600 | - | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 250 V | - | Concave (Curved) | - | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | - | CSA, UL |
|
RA8H231100SWITCH ROCKER DPST 10A 125V |
1,505 |
|
Datasheet | RA8, LAMB | Bulk | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RSC141D1800SWITCH ROCKER SPST 20A 125V |
621 |
|
Datasheet | RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Green | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 13.90mm | -20°C ~ 105°C | CSA, UL |
|
LRA22H2DBBNNSWITCH ROCKER SPST 10A 125V |
187 |
|
Datasheet | LR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | CE, cULus, VDE |
|
|
SLP8A27SWITCH ROCKER SPST 8A 127V |
564 |
|
Datasheet | SLP8A | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 8A (AC) | 127 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 65°C | CQC, cULus, ENEC |
|
|
SLP8A26SWITCH ROCKER SPST 8A 127V |
127 |
|
Datasheet | SLP8A | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 8A (AC) | 127 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 65°C | CQC, cULus, ENEC |
|
GRS-2013A-2017SWITCH ROCKER SPDT 16A 125V |
309 |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
RE11131023-116SWITCH ROCKER SPST 10A 125V |
2,685 |
|
Datasheet | RE1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Oval - Illuminated | Red | ON OFF, Vertical | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 105°C | cUL, VDE, UL |
|
GRS-4021C-0000SWITCH ROCKER DPST-NC 13A 125V |
381 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | DPST-NC | On-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
R4CBLKBLKDFOSWITCH ROCKER SPDT 20A 125V |
137 |
|
Datasheet | R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | - = | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|

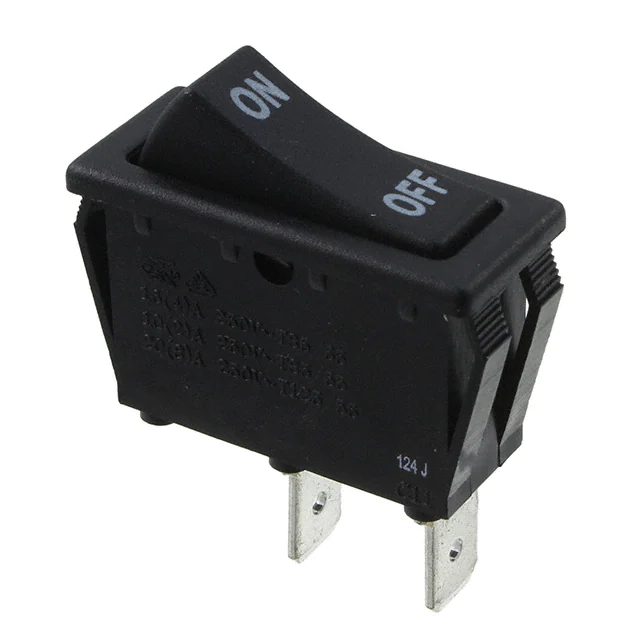

RB141D1123SWITCH ROCKER SPST 20A 125V |
3,226 |
|
Datasheet | RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
