Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KR49DDKTTG214N090210ROCKER SWITCH KG PROTECTED |
1,421 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KR49FAXKPG26N8NXX8PSWITCH ROCKER DPDT 10A 24V |
4,416 |
|
- |
KR | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Red | - | LED, Blue/Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
KL441RJDXXG125N01605ROCKER SWITCH KG PROTECTED |
4,817 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KR49DDKTTG214E090210ROCKER SWITCH KG PROTECTED |
3,210 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FNRCM4SXX2XSWITCH ROCKER DP3T 1A 24V |
1,458 |
|
Datasheet | FNR | Tray | Obsolete | Panel Mount, Threaded Body with Nut | DP3T | Mom-On-Mom | 1A (DC) | - | 24 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 20.20mm Dia | -40°C ~ 85°C | - |
|

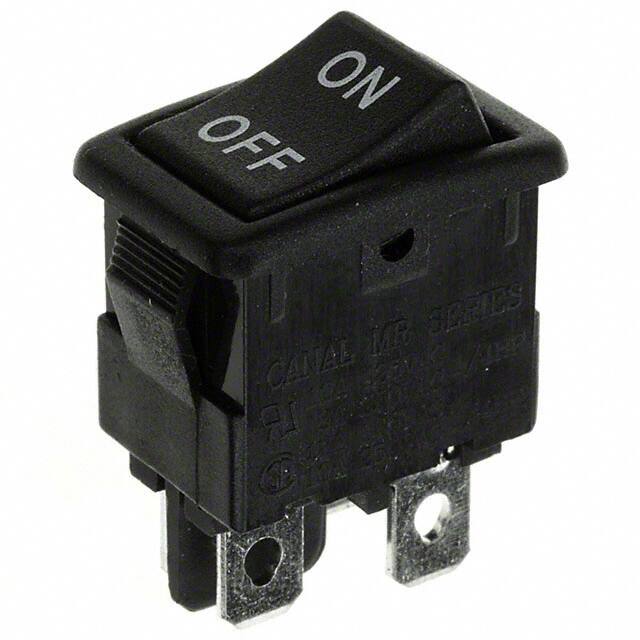

MR210C3NBBSWITCH ROCKER DPST 10A 125V |
4,756 |
|
- |
MR | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 80°C | - |
|

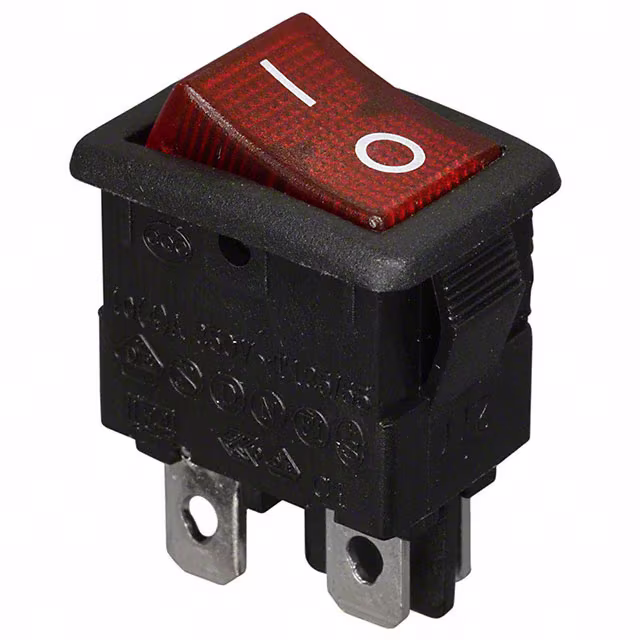

MR210C5LBRSWITCH ROCKER DPST 10A 125V |
4,534 |
|
- |
MR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 80°C | - |
|

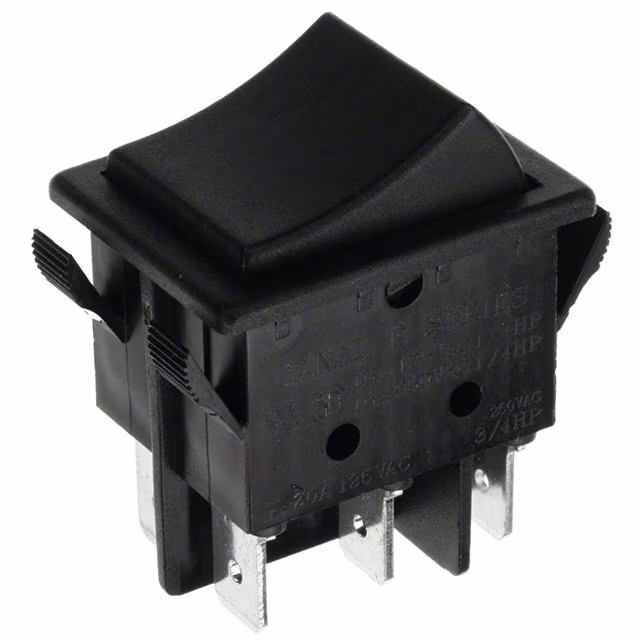

R2201C2NBBSWITCH ROCKER DPDT 20A 125V |
3,401 |
|
- |
R | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 125°C | CSA, DEMKO, FEMCO, NEMKO, SEMKO, SEV, UL, VDE |
|

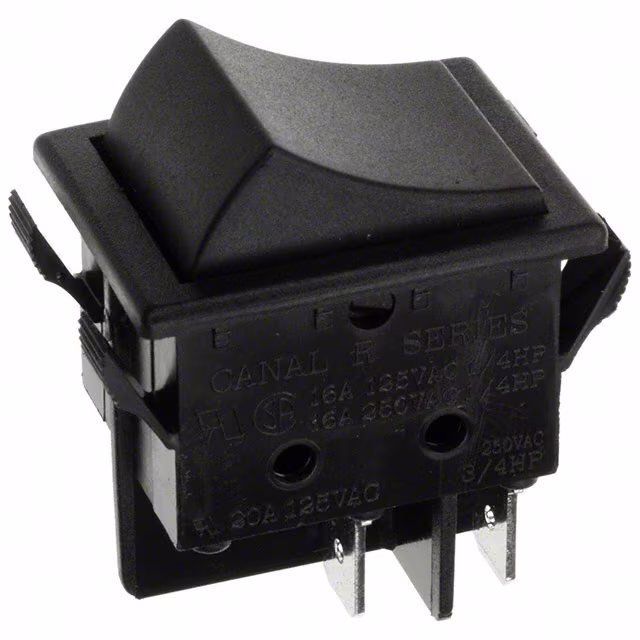

R2401C2NBBSWITCH ROCKER DPST-NO 20A 125V |
2,403 |
|
- |
R | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 125°C | CSA, DEMKO, FEMCO, NEMKO, SEMKO, SEV, UL, VDE |
|

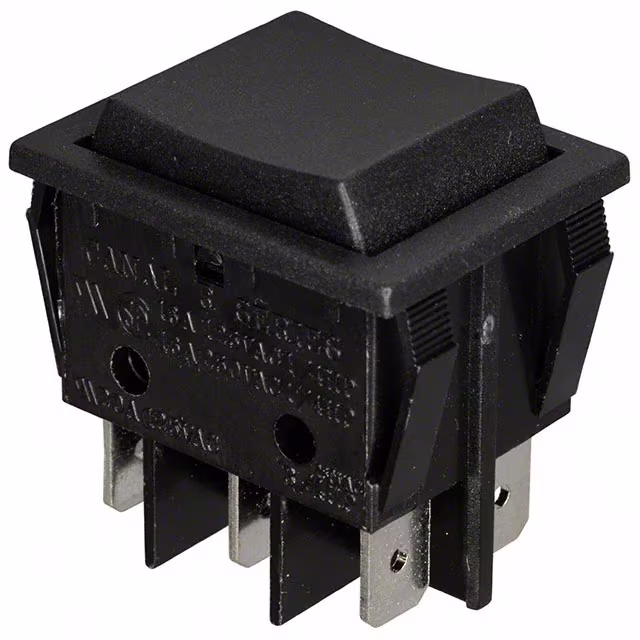

R2601C2NBBSWITCH ROCKER DPDT 20A 125V |
4,812 |
|
- |
R | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 125°C | CSA, DEMKO, FEMCO, NEMKO, SEMKO, SEV, UL, VDE |
