Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRD13F10QCLR204SWITCH ROCKER SPDT 3A 125V |
3,837 |
|
Datasheet | TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-Mom | 3A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2.8 VDC | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|

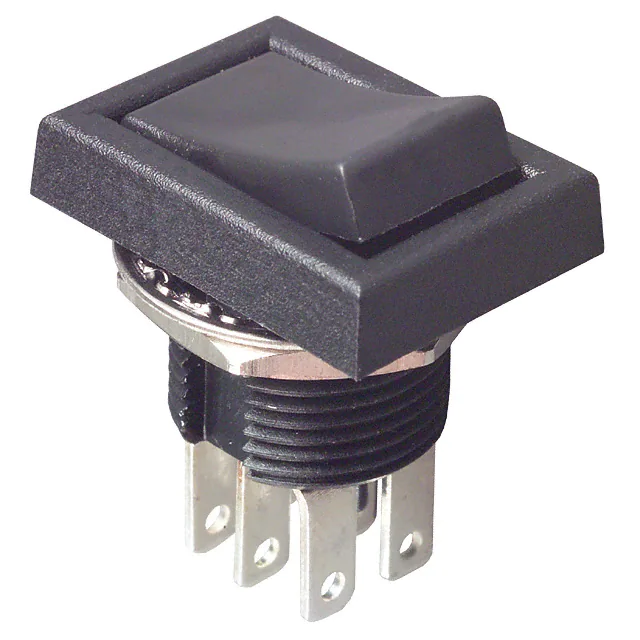

TRD23N10QCSWITCH ROCKER DPDT 3A 125V |
4,077 |
|
Datasheet | TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | On-On | 3A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
TRD13D10WLLR25SWITCH ROCKER SPDT 3A 125V |
1,062 |
|
Datasheet | TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-On | 3A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green/Red | 2.8 VDC | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
|
TRD21R10WLSWITCH ROCKER DPDT 0.4VA 20V |
1,492 |
|
Datasheet | TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
|
TRD13F10QCLR2SWITCH ROCKER SPDT 3A 125V |
2,937 |
|
Datasheet | TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-Mom | 3A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2.8 VDC | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
|
TRD23S10WLSWITCH ROCKER DPDT 3A 125V |
3,357 |
|
- |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | Mom-Off-Mom | 3A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
TRD11F10QCLR2SWITCH ROCKER SPDT 0.4VA 20V |
3,023 |
|
Datasheet | TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2.8 VDC | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
|
TRD23S10WL04SWITCH ROCKER DPDT 3A 125V |
3,457 |
|
Datasheet | TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | Mom-Off-Mom | 3A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
|
1520230-6SWITCH ROCKER DPDT 20A 250V |
3,039 |
|
Datasheet | - | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 20A (AC) | 250 V | - | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | Rectangular - 67.08mm x 32.54mm | - | - |
|
|
PRASD3-16F-BB0FWSWITCH ROCKER SPDT 16A 125V |
3,196 |
|
Datasheet | PRA | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | ENEC, UL, VDE |
