Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H8500VBBB-551WSWITCH ROCKER SPST 15A 250V |
441 |
|
Datasheet | 8500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
CF-LD-1DC-AW2WSWITCH ROCKER SPDT 0.4VA 28V |
145 |
|
Datasheet | CF-LD | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | White | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | - |
|
RA901-VB-B-1-VSWITCH ROCKER SPST 16A 125V |
118 |
|
Datasheet | R | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black, Red | OFF ON, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | BEAB, CSA, DEMKO, FIMKO, NEMKO, SEMKO, SEV, TUV, UL, VDE |
|
C5503PLLABSWITCH ROCKER DPDT 20A 250V |
221 |
|
Datasheet | 1560 | - | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | - | CSA, UL |
|
GRL-2011-1600SWITCH ROCKER SPST 16A 125V |
786 |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

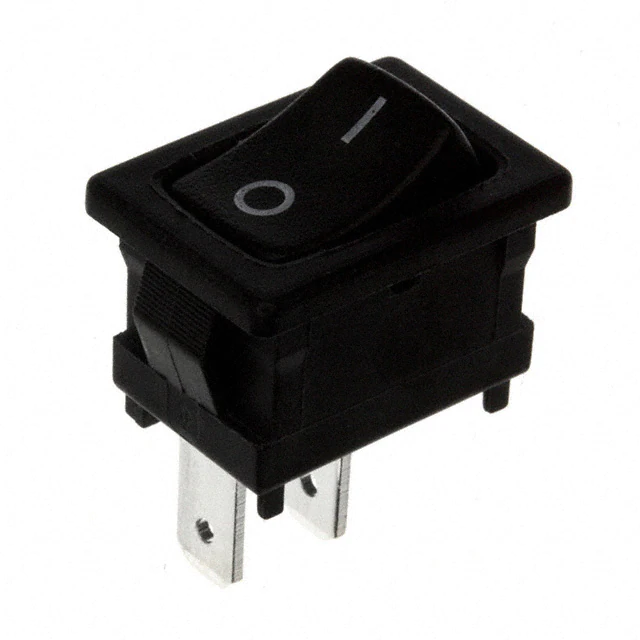

D502J12S215PQASWITCH ROCKER SPST 10A 125V |
683 |
|
Datasheet | D | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
GW12RCVSWITCH ROCKER SPDT 0.4VA 28V |
8,726 |
|
Datasheet | GW | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

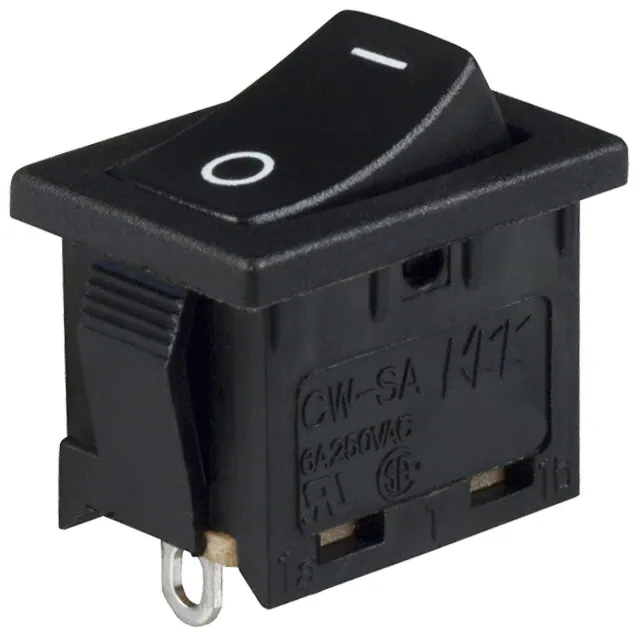

CWSA11AAN1SSWITCH ROCKER SPST 6A 250V |
777 |
|
Datasheet | CWSA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|

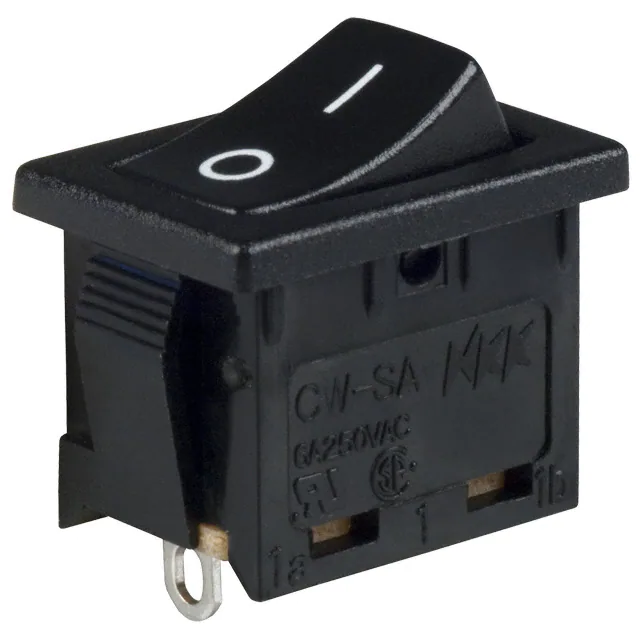

CWSA11AAN2SSWITCH ROCKER SPST 6A 250V |
587 |
|
Datasheet | CWSA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|
A8L-21-14N2SWITCH ROCKER DPST 10A 125V |
1,266 |
|
Datasheet | A8L | Bulk | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 17.50mm | -20°C ~ 55°C | cULus, EN, UL |
|
CR102J3RS215QF7SWITCH ROCKER SPST 16A 125V |
2,190 |
|
Datasheet | CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|
KRE2BNA1BBBSWITCH ROCKER SPDT 16A 125V |
1,086 |
|
Datasheet | KR | Box | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC), 10A (DC) | 125 V | 28 V | Flat | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.40mm x 13.00mm | -25°C ~ 85°C | - |
|
A8L-21-15N2SWITCH ROCKER DPST 10A 125V |
2,458 |
|
Datasheet | A8L | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 55°C | cULus, EN, UL |
|
C1353ATNANSWITCH ROCKER DPST 20A 250V |
612 |
|
Datasheet | 1350 | - | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | O I | Neon, Red | 230-250 VAC | Quick Connect - 0.250" (6.3mm) | IP40 | - | Rectangular - 28.30mm x 22.40mm | - | CSA, UL |
|

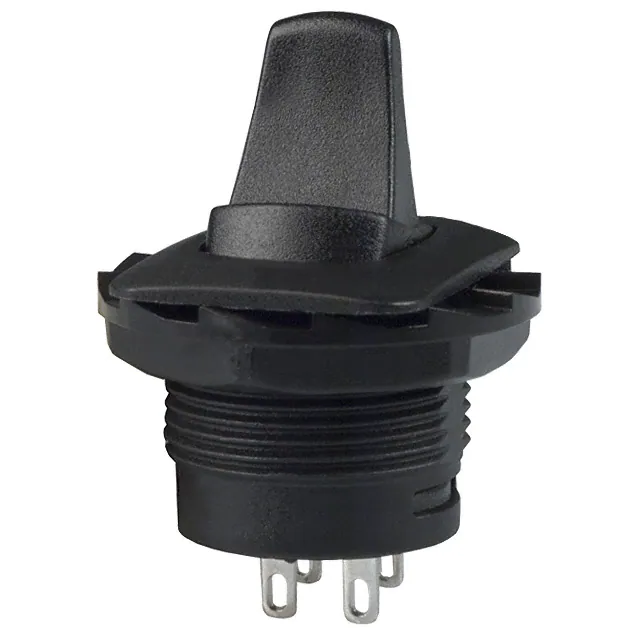

RR3405ASWITCH ROCKER DPST 10A 125V |
163 |
|
Datasheet | RR3405 | Bulk | Active | Panel Mount, Threaded Body with Nut | DPST | On-Off | 10A (AC) | 125 V | - | Paddle | Black | No Marking | - | - | Solder Lug | - | - | Circular - 18.00mm Dia | - | - |
|
KRE2DNA1BBBSWITCH ROCKER SPST-NO 16A 125V |
257 |
|
Datasheet | KR | Box | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 16A (AC), 10A (DC) | 125 V | 28 V | Flat | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.40mm x 13.00mm | -25°C ~ 85°C | - |
|
RC911-RB-B-0-NSWITCH ROCKER SPDT 16A 125V |
310 |
|
Datasheet | R | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | BEAB, CSA, DEMKO, FIMKO, NEMKO, SEMKO, SEV, TUV, UL, VDE |
|

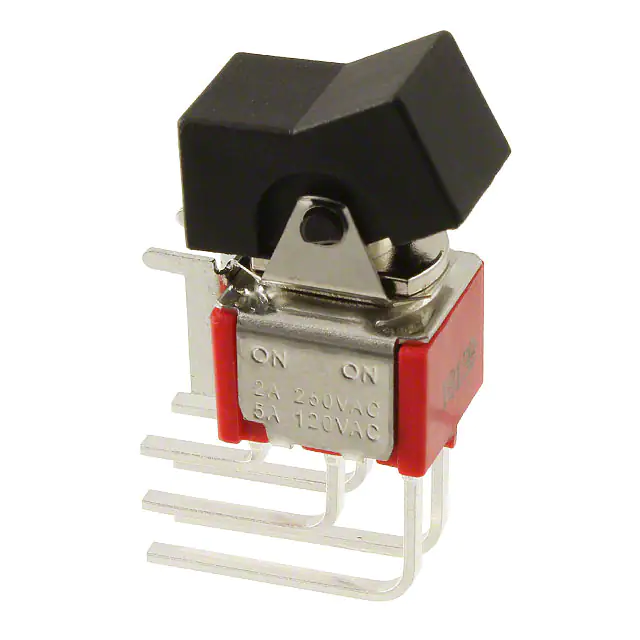

300DP1J1BLKM7QEIOSWITCH ROCKER DPDT 5A 120V |
426 |
|
Datasheet | 300 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
62116919-0-9-VSWITCH ROCKER SPST 8A 125V |
338 |
|
Datasheet | 621 | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black, Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | Two-Tone Rocker | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
RSCA201-VB-B-1-VSWITCH ROCKER SPST 20A 125V |
2,900 |
|
Datasheet | RSC | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | OFF ON, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
