Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

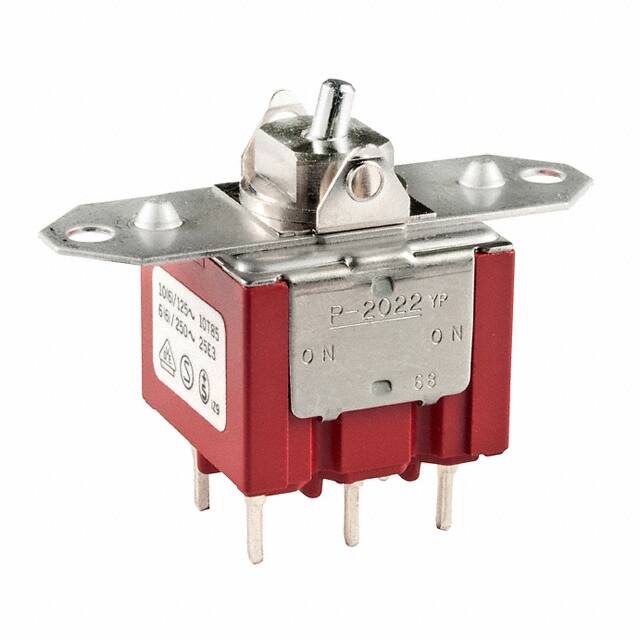

P2022YPSWITCH ROCKER DPDT 10A 125V |
1,690 |
|
Datasheet | P | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | Rectangular - 28.50mm x 16.00mm | -10°C ~ 85°C | CSA, UL, VDE |
|
M2018TYW01-JBSWITCH ROCKER SPDT 6A 125V |
2,180 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TZG23SWITCH ROCKER SPDT 0.4VA 28V |
3,856 |
|
Datasheet | M | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2018TYG03SWITCH ROCKER SPDT 0.4VA 28V |
2,018 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2018TYW01-JCSWITCH ROCKER SPDT 6A 125V |
2,130 |
|
Datasheet | M | Tray | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
M2018TYW01-JGSWITCH ROCKER SPDT 6A 125V |
3,112 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Blue | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2018TYW01-HCSWITCH ROCKER SPDT 6A 125V |
4,167 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2018TYW01-HHSWITCH ROCKER SPDT 6A 125V |
2,502 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
M2019TYW01-HHSWITCH ROCKER SPDT 6A 125V |
3,007 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2019TYW01-JASWITCH ROCKER SPDT 6A 125V |
4,344 |
|
Datasheet | M | Box | Obsolete | Panel Mount, Flange | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TNW01-DBSWITCH ROCKER DPDT 6A 125V |
3,239 |
|
Datasheet | M | Box | Obsolete | Panel Mount, Flange | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TNW01-EASWITCH ROCKER DPDT 6A 125V |
3,210 |
|
Datasheet | M | Box | Obsolete | Panel Mount, Flange | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TNW01-FFSWITCH ROCKER DPDT 6A 125V |
2,600 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Green | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | CSA, UL |
|
|
M2024TNW01-DASWITCH ROCKER SP3T 6A 125V |
2,532 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2024TNW01-DBSWITCH ROCKER SP3T 6A 125V |
2,640 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2024TNW01-GASWITCH ROCKER SP3T 6A 125V |
4,604 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | CSA, UL |
|
|
M2024TNW01-DHSWITCH ROCKER SP3T 6A 125V |
2,099 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Gray | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
JWM22BCA-ASWITCH ROCKER DPDT 10A 125V |
3,686 |
|
Datasheet | JW | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
M2015TJW01-FG-1ASWITCH ROCKER SPDT 6A 125V |
3,130 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Blue | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2015TJW01-FH-1ASWITCH ROCKER SPDT 6A 125V |
1,341 |
|
Datasheet | M | Box | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
