Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2018TNG03SWITCH ROCKER SPDT 0.4VA 28V |
1,863 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
A12KV1-CASWITCH ROCKER SPDT 0.4VA 28V |
1,945 |
|
- |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
JWM11RCASWITCH ROCKER SPST 10A 125V |
4,896 |
|
Datasheet | JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
MLW3025/USWITCH ROCKER DPDT 5A 125V |
1,749 |
|
Datasheet | MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Mom | 5A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
A13KH-CASWITCH ROCKER SPDT 0.4VA 28V |
1,648 |
|
Datasheet | A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

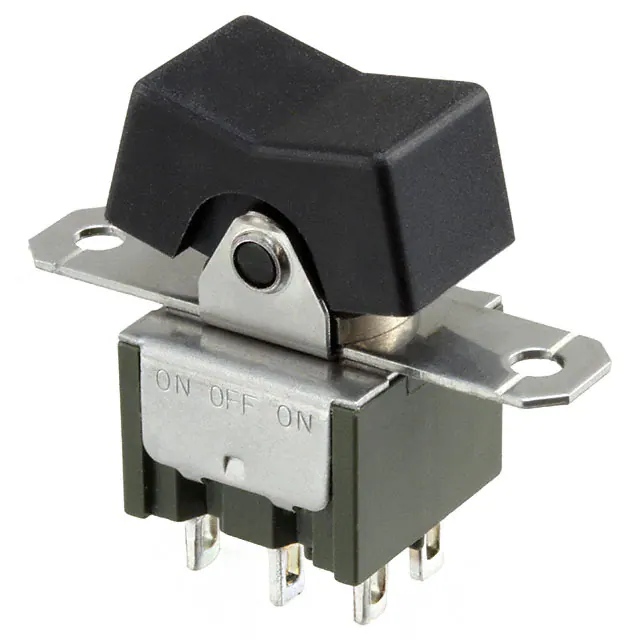

M2023TNW01-DASWITCH ROCKER DPDT 6A 125V |
4,550 |
|
Datasheet | M | Tray | Obsolete | Panel Mount, Flange | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
M2018TJW03SWITCH ROCKER SPDT 6A 125V |
2,271 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
M2012TNW03-EGSWITCH ROCKER SPDT 6A 125V |
2,579 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Blue | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
M2012TNW03-ECSWITCH ROCKER SPDT 6A 125V |
1,610 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
A13KV-CASWITCH ROCKER SPDT 0.4VA 28V |
4,806 |
|
- |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A12K1H-DBSWITCH ROCKER SPDT 0.4VA 28V |
1,383 |
|
Datasheet | A | Box | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
M2019TXG13SWITCH ROCKER SPDT 0.4VA 28V |
4,065 |
|
Datasheet | M | Bulk | Obsolete | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
H8553VBBG2-080WSWITCH ROCKER DPST 15A 250V |
3,495 |
|
Datasheet | 8500 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | O I | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
M2019TJW03SWITCH ROCKER SPDT 6A 125V |
4,327 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
M2015TJW01-GA-1ASWITCH ROCKER SPDT 6A 125V |
1,149 |
|
Datasheet | M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
M2012TJG01SWITCH ROCKER SPDT 0.4VA 28V |
3,661 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
M2018TZW13-JASWITCH ROCKER SPDT 6A 125V |
2,150 |
|
Datasheet | M | Tray | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2012TJW03-FA-1ASWITCH ROCKER SPDT 6A 125V |
1,428 |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
SRD1-1A-DC-1-BRNSWITCH ROCKER SPST 21A 14V |
1,613 |
|
Datasheet | SRD1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
M2013TYW01-JASWITCH ROCKER SPDT 6A 125V |
1,389 |
|
Datasheet | M | Tray | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
