Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KR46CAKEEGSWITCH ROCKER DPDT 10A 24V |
1,369 |
|
Datasheet | KR | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Green | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
HR26D1A11BW1-11-YKUS1SWITCH ROCKER DPDT 20A 12V |
4,640 |
|
Datasheet | HR | Box | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (DC) | - | 12 V | Flat - Illuminated | Black | Running Lights - Anchor Light, Vertical | LED, Blue/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
SQR226U1BKWSWITCH ROCKER SP3T 15A 120V |
4,900 |
|
Datasheet | Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | Black | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|
|
SQR226U1LAWSWITCH ROCKER SP3T 15A 120V |
3,392 |
|
Datasheet | Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | Almond | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|
|
SQR141U1WHWSWITCH ROCKER SP3T 15A 120V |
1,262 |
|
Datasheet | Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | White | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|
AML24EBA2BC01SWITCH ROCKER DPDT 100MA 125V |
4,836 |
|
Datasheet | AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
2TP201-7SWITCH ROCKER DPDT 10A 125V |
3,132 |
|
Datasheet | TP | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
GRS-4011-0000SWITCH ROCKER SPST 13A 125V |
4,803 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
|
VV6ZZ00-000V-Series Rocker Only Contura XI |
1,388 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RW2622HWCSWITCH ROCKER DPDT 20A 120V |
2,704 |
|
Datasheet | RW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 120 V | - | Concave (Curved) | Black | Triangular Arrows with O | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP40 | - | Rectangular - 30.20mm x 22.25mm | -30°C ~ 80°C | cULus |
|
|
2-1634200-6SWITCH ROCKER DPDT 10A 125V |
1,674 |
|
Datasheet | PRE | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.20mm x 19.40mm | -20°C ~ 85°C | cULus |
|
GW12RHPSWITCH ROCKER SPDT 0.4VA 28V |
2,146 |
|
Datasheet | GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Gray | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
|
AJ8211BFSWITCH ROCKER DPST 16A 250V |
4,465 |
|
Datasheet | AJ8 | Bulk | Not For New Designs | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | Solder Lug | - | - | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, ENEC, VDE |
|
GW12RHVSWITCH ROCKER SPDT 0.4VA 28V |
3,197 |
|
Datasheet | GW | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Gray | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

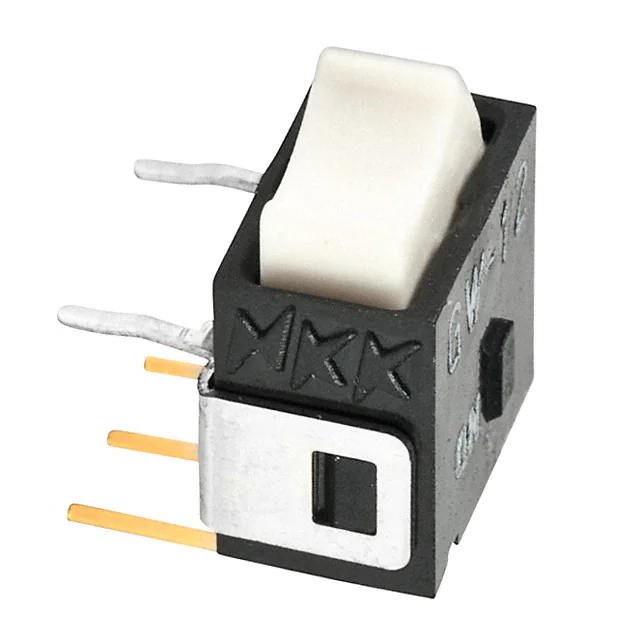

GW12RBHSWITCH ROCKER SPDT 0.4VA 28V |
1,410 |
|
Datasheet | GW | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

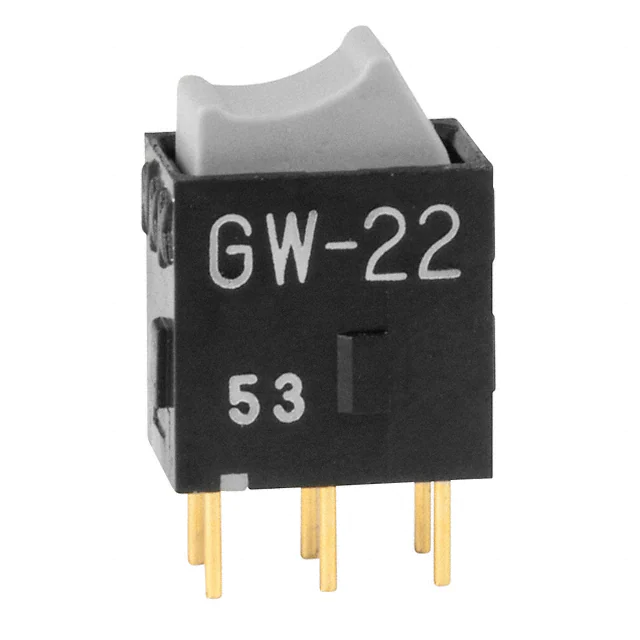

GW22RHPSWITCH ROCKER DPDT 0.4VA 28V |
1,780 |
|
Datasheet | GW | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Gray | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

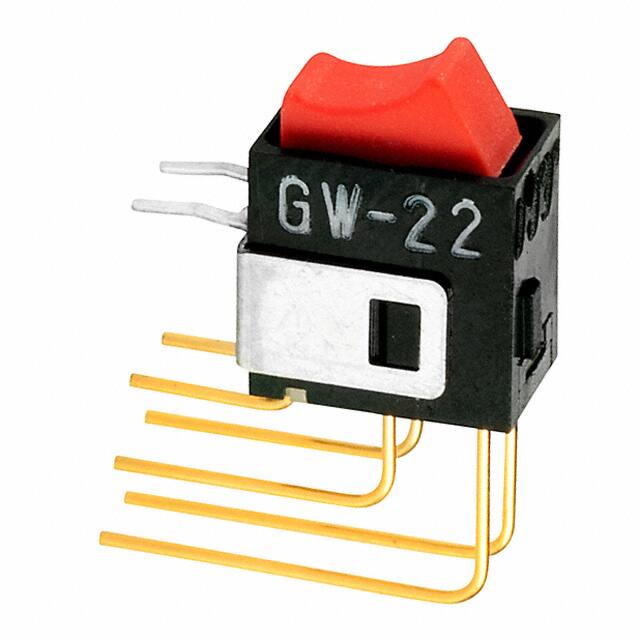

GW22RCVSWITCH ROCKER DPDT 0.4VA 28V |
4,185 |
|
Datasheet | GW | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
GW22RHHSWITCH ROCKER DPDT 0.4VA 28V |
1,486 |
|
Datasheet | GW | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Gray | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
|
CRSP5A9M9SWITCH ROCKER SPST-NC 20A 125V |
3,532 |
|
Datasheet | CRSP | Bulk | Active | Panel Mount, Snap-In | SPST-NC | On-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
|
CRSP1A9M9SWITCH ROCKER SPST 20A 125V |
3,604 |
|
Datasheet | CRSP | Bulk | Active | Panel Mount, Snap-In | SPST | Off-On | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Black | High Beam - OFF - Low Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
