RFI and EMI - Contacts, Fingerstock and Gaskets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Shape | Width | Length | Height | Material | Plating | Plating - Thickness | Attachment Method | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

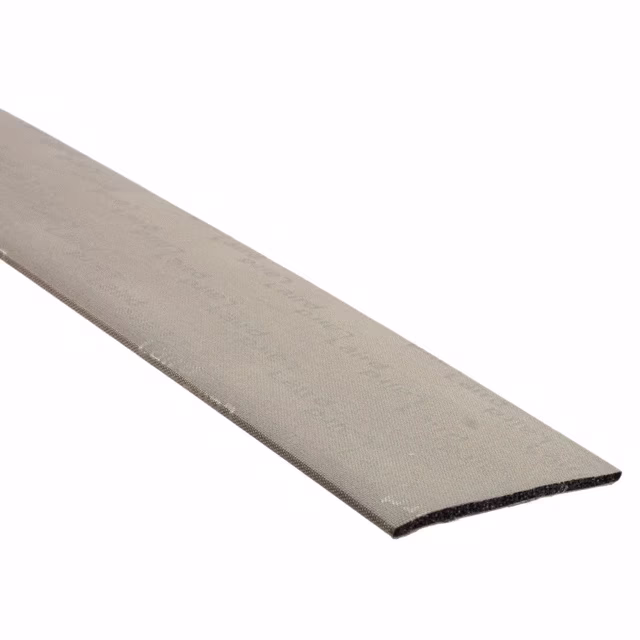

4231PA51H01800RFI FOF GASKET PU ADH |
4,707 |
|
Datasheet | 51H | Bulk | Active | Fabric Over Foam | Rectangle | 1.614" (41.00mm) | 18.000" (457.20mm) | 0.059" (1.50mm) | Polyurethane Foam, Nickel-Copper Taffeta (NI/CU) | - | - | Adhesive | - |
|
0097095702RFI FINGERSTOCK BECU NICKEL ADH |
1,415 |
|
Datasheet | Symmetrical (S3) Slotted | Box | Active | Fingerstock | - | 0.350" (8.89mm) | 15.000" (381.00mm) | 0.110" (2.79mm) | Beryllium Copper | Nickel, Tin | 299.99µin (7.62µm) | Adhesive | 121°C |
|
67BCS2003802008R00RFI SHLD FINGER BECU NICKEL |
2,630 |
|
- |
BCS | Tape & Reel (TR) | Active | Shield Finger | - | 0.079" (2.00mm) | 0.150" (3.80mm) | 0.079" (2.00mm) | Beryllium Copper | Nickel | - | - | - |
|
|
67BCS2004002008R00RFI SHLD FINGER BECU NICKEL |
2,270 |
|
- |
BCS | Tape & Reel (TR) | Active | Shield Finger | - | 0.079" (2.00mm) | 0.157" (4.00mm) | 0.079" (2.00mm) | Beryllium Copper | Nickel | - | - | - |
|
|
5568KAG1W00106GK,NICU,CF,KC,V0 .060X.157X1.060 |
3,818 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
4186PA51H00100RFI FOF GASKET PU ADH |
3,792 |
|
Datasheet | 51H | Bulk | Active | Fabric Over Foam | Rectangle | 0.201" (5.10mm) | 1.000" (25.40mm) | 0.079" (2.00mm) | Polyurethane Foam, Nickel-Copper Taffeta (NI/CU) | - | - | Adhesive | - |
|
4052AC51H00071RFI FOF GASKET PU ADH |
4,159 |
|
Datasheet | 51H | Bulk | Active | Fabric Over Foam | D-Shape | 0.079" (2.00mm) | 0.710" (18.03mm) | 0.079" (2.00mm) | Polyurethane Foam, Nickel-Copper Taffeta (NI/CU) | - | - | Adhesive | - |
|
|
4520PA51G00100RFI FOF GASKET PU ADH |
3,903 |
|
- |
51G | Bulk | Active | Fabric Over Foam | Square | 0.080" (2.03mm) | 1.000" (25.40mm) | 0.080" (2.03mm) | Polyurethane Foam, Nickel-Copper Polyester (NI/CU) | - | - | Adhesive | -40°C ~ 70°C |
|
|
67SLA060080070PI00SLA W6XH8XL7MM |
3,734 |
|
- |
SMD Contact | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
BMI-C-001-SNRFI SHLD FINGER BECU TIN SOLDER |
3,034 |
|
Datasheet | BMI-C | Tape & Reel (TR) | Active | Shield Finger | - | 0.079" (2.00mm) | 0.122" (3.11mm) | 0.096" (2.44mm) | Beryllium Copper | Tin | - | Solder | - |
