RFI and EMI - Contacts, Fingerstock and Gaskets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Shape | Width | Length | Height | Material | Plating | Plating - Thickness | Attachment Method | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3029060060050RFI GASKET SOLDER |
3,317 |
|
Datasheet | WE-SMGS | Tape & Reel (TR) | Active | Gasket | Rectangle | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.197" (5.00mm) | - | - | - | Solder | -20°C ~ 90°C |
|
331031271520RFI SHLD FINGER BECU GOLD SOLDER |
10,609 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.059" (1.50mm) | 0.106" (2.70mm) | 0.079" (2.00mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
331081302025RFI SHLD FINGER BECU GOLD SOLDER |
4,198 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.098" (2.50mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
331211503040RFI SHLD FINGER BECU GOLD SOLDER |
1,800 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger, Pre-Loaded | - | 0.118" (3.00mm) | 0.177" (4.50mm) | 0.157" (4.00mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
331151702562RFI SHLD FINGER BECU GOLD SOLDER |
19,486 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.098" (2.50mm) | 0.276" (7.00mm) | 0.244" (6.20mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
331041402053RFI SHLD FINGER BECU GOLD SOLDER |
2,556 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.079" (2.00mm) | 0.157" (4.00mm) | 0.209" (5.30mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|

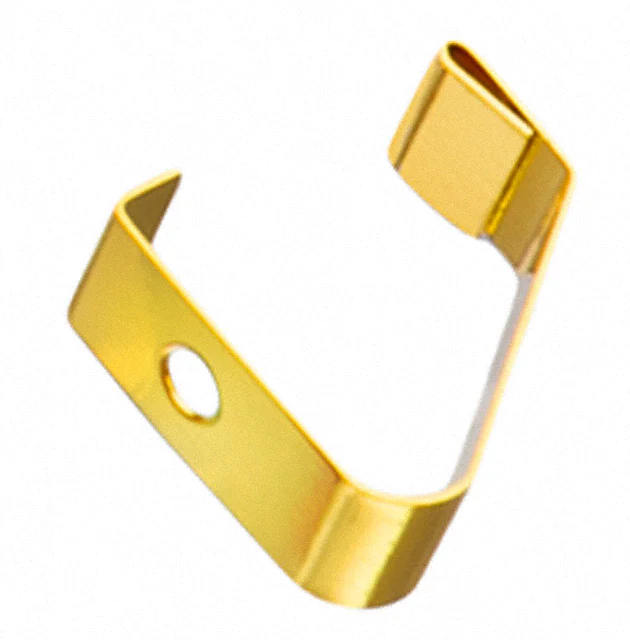

331011452048RFI SHLD FINGER BECU GOLD SOLDER |
1,721 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.079" (2.00mm) | 0.177" (4.50mm) | 0.189" (4.80mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
331141352540RFI SHLD FINGER BECU GOLD SOLDER |
12,216 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.098" (2.50mm) | 0.138" (3.50mm) | 0.157" (4.00mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
331061603012RFI SHLD FINGER BECU GOLD SOLDER |
608 |
|
Datasheet | - | Tape & Reel (TR) | Active | Shield Finger | Angled | 0.236" (6.00mm) | 0.472" (12.00mm) | 0.118" (3.00mm) | Beryllium Copper | Gold | - | Solder | -40°C ~ 100°C |
|
331161702513RFI SHLD FINGER BECU GOLD SOLDER |
2,622 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.098" (2.50mm) | 0.276" (7.00mm) | 0.512" (13.00mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
