RFI and EMI - Contacts, Fingerstock and Gaskets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Shape | Width | Length | Height | Material | Plating | Plating - Thickness | Attachment Method | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

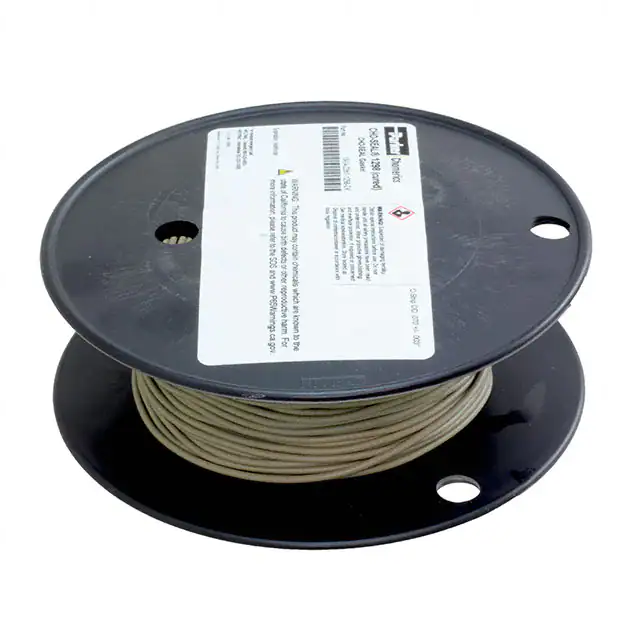

10-04-1687-6502RFI GASKET ELASTOMER NICKEL |
1,874 |
|
Datasheet | - | Spool | Active | Gasket | Round | 0.070" (1.78mm) | 12.000" (304.80mm) | - | Conductive Elastomer | Nickel | - | No Adhesive | -29°C ~ 66°C |
|
10-04-W204-S6305RFI GASKET ELASTOMER NICKEL |
4,486 |
|
Datasheet | CHO-SEAL S6305 | Spool | Active | Gasket | Round | 0.125" (3.17mm) | 12.000" (304.80mm) | - | Conductive Elastomer | Nickel | - | No Adhesive | -29°C ~ 66°C |
|
77-12-3108-02400RFI FOF GASKET NI/CU ADH |
1,381 |
|
Datasheet | SOFT-SHIELD® 3500 | Box | Active | Fabric Over Foam | Rectangle | 0.189" (4.80mm) | 24.000" (609.60mm) | 0.126" (3.20mm) | Nickel-Copper over Urethane Foam | - | - | Adhesive | -40°C ~ 70°C |
|
10-04-W267-S6305RFI GASKET ELASTOMER NICKEL FOOT |
2,783 |
|
Datasheet | CHO-SEAL S6305 | Digi-Spool®, Continuous Spool | Active | Gasket | Round | 0.090" (2.29mm) | Enter Number of Feet in Order Quantity | - | Conductive Elastomer | Nickel | - | No Adhesive | -29°C ~ 66°C |
|
77-12-3217-02400RFI FOF GASKET NI/CU ADH |
2,318 |
|
Datasheet | SOFT-SHIELD® 3500 | Box | Active | Fabric Over Foam | Rectangle | 0.197" (5.00mm) | 24.000" (609.60mm) | 0.039" (0.99mm) | Nickel-Copper over Urethane Foam | - | - | Adhesive | -40°C ~ 70°C |
|

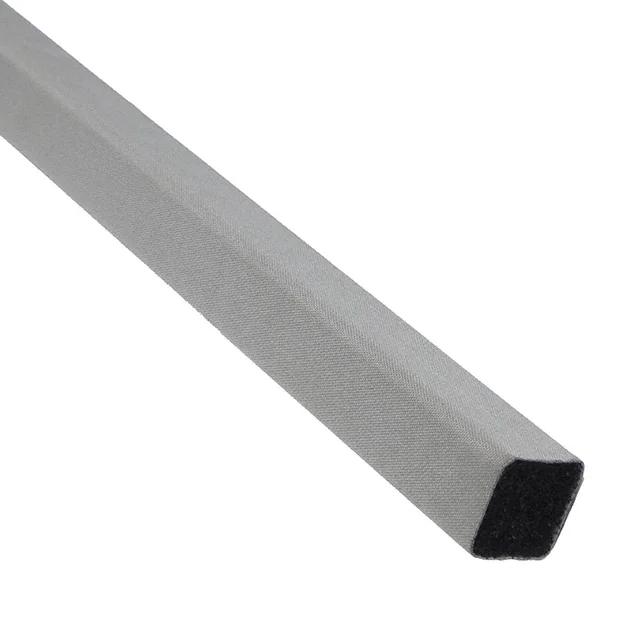

77-12-3150-02400RFI FOF GASKET NI/CU ADH |
1,165 |
|
Datasheet | SOFT-SHIELD® 3500 | Box | Active | Fabric Over Foam | Square | 0.375" (9.53mm) | 24.000" (609.60mm) | 0.375" (9.53mm) | Nickel-Copper over Urethane Foam | - | - | Adhesive | -40°C ~ 70°C |
|
37-131-1011-02400RFI FOF GASKET NI/CU NICKEL ADH |
2,204 |
|
Datasheet | SOFT-SHIELD® 3700 | Bulk | Active | Fabric Over Foam | Rectangle | 0.197" (5.00mm) | 24.000" (609.60mm) | 0.075" (1.91mm) | Nickel-Copper Polyester (NI/CU) | Nickel | - | Adhesive | -40°C ~ 125°C |
|

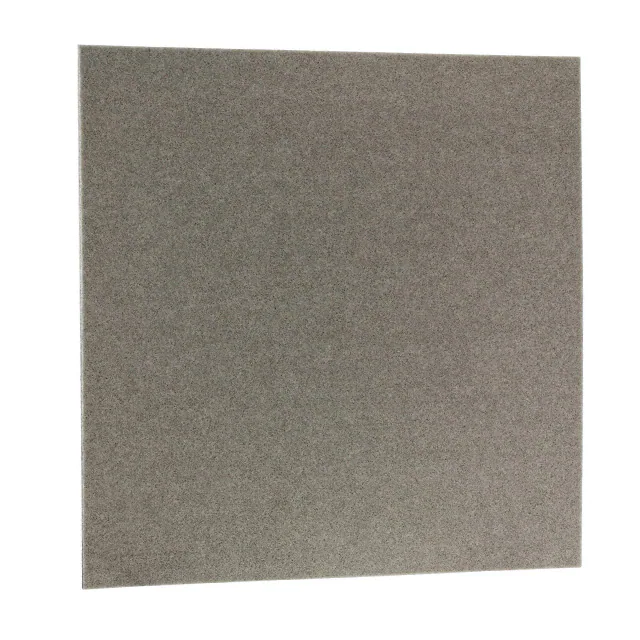

4850-12-1212-0200RFI COND FOAM CU SILVER ADH |
3,073 |
|
Datasheet | SOFT-SHIELD® 4850 | Bulk | Active | Conductive Foam | Sheet | 12.000" (304.80mm) | 12.000" (304.80mm) | 0.079" (2.00mm) | Copper | Silver | - | Adhesive | -40°C ~ 70°C |
|
82-13336RFI SHLD MAT ELASTOMER PSA |
1,393 |
|
Datasheet | POLA® SOLID | Strip | Active | Shielding Material | Sheet | 0.625" (15.88mm) | 11.00' (3.35m) | 0.062" (1.57mm) | Conductive Elastomer | - | - | PSA | -54°C ~ 200°C |
|
10-04-8363-S6305RFI GASKET ELASTOMER NICKEL |
2,562 |
|
Datasheet | CHO-SEAL S6305 | Spool | Active | Gasket | Round | 0.103" (2.62mm) | 12.000" (304.80mm) | - | Conductive Elastomer | Nickel | - | No Adhesive | -29°C ~ 66°C |
