RF Power Dividers/Splitters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Insertion Loss | Frequency | Specifications | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PWD-5530-02-SMA-79RF PWR DVDR 500MHZ-18GHZ MODULE |
3,563 |
|
Datasheet | Module | - | Bulk | Active | 0.3dB | 500 MHz ~ 18 GHz | Isolation (Min) 18dB | 5.500" L x 1.000" W (139.70mm x 25.40mm) |
|

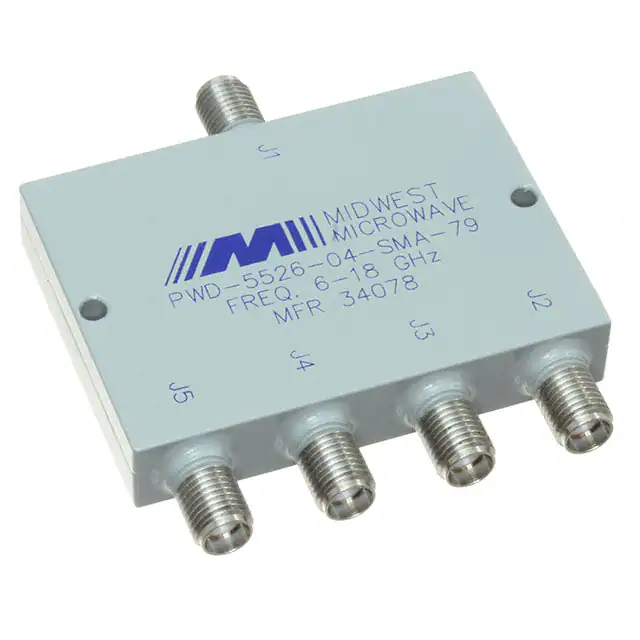

PWD-5526-04-SMA-79RF PWR DIVIDER 6GHZ-18GHZ MODULE |
4,823 |
|
Datasheet | Module | - | Bulk | Active | 1dB | 6 GHz ~ 18 GHz | Isolation (Min) 18dB | 1.460" L x 2.000" W (37.10mm x 50.80mm) |
|
PWD-5530-04-SMA-79RF PWR DVDR 500MHZ-18GHZ MODULE |
3,693 |
|
Datasheet | Module | - | Bulk | Active | 0.5dB | 500 MHz ~ 18 GHz | - | 5.200" L x 2.000" W (132.10mm x 50.80mm) |
|
PWD-5526-02-SMA-79RF PWR DIVIDER 6GHZ-18GHZ MODULE |
3,068 |
|
Datasheet | Module | - | Bulk | Active | 0.5dB | 6 GHz ~ 18 GHz | Isolation (Min) 18dB | 1.000" L x 1.000" W (25.40mm x 25.40mm) |
|
PWD-5536-02-29M-792.92MM PWER DIVIDER 2WAY 6-40GHZ |
4,061 |
|
Datasheet | Module | - | Box | Active | 1.8dB | 6 GHz ~ 40 GHz | Isolation (Min) 14.5dB | 1.060" L x 0.800" W x 0.380" H (26.92mm x 20.32mm x 9.65mm) |
|
PWD-5530-T2-SMA-79RF PWR DVDR 500MHZ-18GHZ MODULE |
2,423 |
|
Datasheet | Module | - | Bulk | Obsolete | 0.3dB | 500 MHz ~ 18 GHz | Isolation (Min) 10dB | 5.500" L x 0.050" W (139.70mm x 12.70mm) |
|
|
PWD-5512-02-SMA-79RF PWR DIVIDER 2GHZ-4GHZ MODULE |
3,905 |
|
Datasheet | Module | - | Bulk | Active | 0.4dB | 2 GHz ~ 4 GHz | Isolation (Min) 20dB | 3.000" L x 2.000" W (76.20mm x 50.10mm) |
|
|
PWD-5522-02-SMA-79RF PWR DIVIDER 2GHZ-8GHZ MODULE |
1,838 |
|
Datasheet | Module | - | Bulk | Active | 0.5dB | 2 GHz ~ 8 GHz | Isolation (Min) 20dB | 2.000" L x 1.000" W (50.80mm x 25.40mm) |
|
|
PWD-5515-02-SMA-79RF PWR DVDR 8GHZ-12.4GHZ MODULE |
4,164 |
|
Datasheet | Module | - | Bulk | Active | 0.5dB | 8 GHz ~ 12.4 GHz | Isolation (Min) 20dB | 1.000" L x 0.250" W (25.40mm x 6.35mm) |
|
|
PWD-5532-02-SMA-79RF PWR DIVIDER 2GHZ-18GHZ MODULE |
3,850 |
|
Datasheet | Module | - | Bulk | Active | 1dB | 2 GHz ~ 18 GHz | - | 2.250" L x 1.000" W (57.15mm x 25.40mm) |
