RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-433-CW-RAHRF ANT 433MHZ WHIP RA RP-SMA MAL |
1,235 |
|
Datasheet | RAH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 425MHz ~ 440MHz | Whip, Right Angle | 1 | 1.9 | - | -5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-5GWWS4-SMA-WRF ANT 617MHZ-5GHZ 5G TILT SMA |
4,242 |
|
Datasheet | 5GW | Bag | Active | Cellular | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Blade, Tilt | 9 | 4.3, 3.9, 4.7, 3.2, 3.2, 2.5, 3.6, 3.5. 3.3, 3 | -4.1dB, -4.6dB, -3.8dB, -5.6dB, -5.6dB, -7.4dB, -5dB, -5.1dB, -5.4dB, -6dB | 1.7dBi, 2.8dBi, 2.7dBi, 4.4dBi, 4.1dBi, 3.4dBi, 4.9dBi, 4.8dBi, 4.9dBi, 5.2dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 6.900" (175.26mm) | 4G, 5G, Cat-M1, CBRS, C-Band, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS |
|
ANT-433-OC-LG-RPS433MHZ TILT/SWIV DIPOLE WHIP RPS |
2,818 |
|
Datasheet | OC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Whip, Tilt | 1 | 2.1 | 9dB | 0.7dBi | 10 W | - | RP-SMA Female | - | - | - | Connector Mount | 7.620" (193.50mm) | ISM, LPWA |
|
ANT-433-CW-RCS-SMA433MHZ RCS SERIES REDUCED HEIGHT |
2,575 |
|
- |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 432.5MHz | 425MHz ~ 440MHz | Whip, Right Angle | 1 | 2 | - | -2.9dBi | - | - | SMA | - | - | - | Connector Mount | 2.110" (53.59mm) | General Purpose |
|
ANT-B8-PW-QWRF ANT LTE B8 WHIP STR CAB PAN |
3,087 |
|
Datasheet | PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 920MHz | 870MHz ~ 960MHz | Whip, Straight | 1 | 2 | - | 1.6dBi | 10 W | Cable - 216mm, O-Ring Compatible | Solder | - | - | - | Panel Mount | 3.555" (90.30mm) | Cellular, GSM, LTE, NB-IoT, UMTS |
|
ANT-B13-PW-QWRF ANT LTE B13 WHIP STR CAB PAN |
2,047 |
|
Datasheet | PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 765MHz | 740MHz ~ 790MHz | Whip, Straight | 1 | 1.9 | - | 1.7dBi | 10 W | Cable - 216mm, O-Ring Compatible | Solder | - | - | - | Panel Mount | 3.874" (98.40mm) | Cellular, LTE, NB-IoT, UMTS |
|
ANT-B14-PW-QWRF ANT LTE B14 WHIP STR CAB PAN |
3,976 |
|
Datasheet | PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 778MHz | 750MHz ~ 800MHz | Whip, Straight | 1 | 2 | - | 1.9dBi | 10 W | Cable - 216mm, O-Ring Compatible | Solder | - | - | - | Panel Mount | 3.709" (94.20mm) | FirstNet, LTE, Public Safety |
|
ANT-490-PW-QWRF ANT 490MHZ WHIP STR CAB PAN |
4,740 |
|
Datasheet | PW | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 490MHz | 470MHz ~ 510MHz | Whip, Straight | 1 | 1.5 | - | 1.3dBi | 10 W | Cable - 216mm, O-Ring Compatible | Solder | - | - | - | Panel Mount | 6.209" (157.70mm) | GSM, ISM, LoRaWAN, LTE, SIGFOX, UMTS |
|

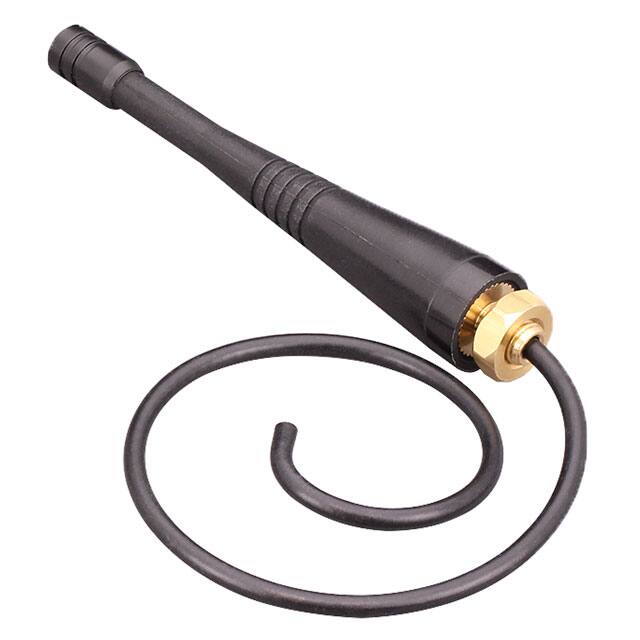

ANT-B5-PW-QWRF ANT LTE B5 WHIP STR CAB PAN |
2,771 |
|
Datasheet | PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 854MHz | 800MHz ~ 900MHz | Whip, Straight | 1 | 2 | - | 1.2dBi | 10 W | Cable - 216mm, O-Ring Compatible | Solder | - | - | - | Panel Mount | 3.287" (83.50mm) | Cellular, GSM, LTE, NB-IoT, UMTS |
|
ANT-B28-PW-QWRF ANT LTE B28 WHIP STR CAB PAN |
2,635 |
|
Datasheet | PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 750MHz | 700MHz ~ 810MHz | Whip, Straight | 1 | 2.7 | - | 1.7dBi | 10 W | Cable - 216mm, O-Ring Compatible | Solder | - | - | - | Panel Mount | 3.874" (98.40mm) | Cellular, GSM, LTE, NB-IoT, UMTS |
