RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-868-CW-RCS-SMARF ANT 868MHZ WHIP RA SMA MALE |
2,519 |
|
Datasheet | RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 850MHz ~ 880MHz | Whip, Right Angle | 1 | 2 | - | 3.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-916-CW-RAH-SMARF ANT 916MHZ WHIP RA SMA LPWA |
1,477 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 916MHz | 850MHz ~ 970MHz | Whip, Right Angle | 1 | 1.9 | - | 2.2dBi | - | - | SMA | - | - | - | Connector Mount | 1.829" (46.46mm) | - |
|
ANT-2.4-CW-RCSRF ANT 2.4GHZ WHIP RA RP-SMA MAL |
1,654 |
|
Datasheet | RCS | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.5GHz | Whip, Right Angle | 1 | 1.9 | - | -0.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-916-CW-RAHRF ANT 916MHZ WHIP RA RP-SMA MAL |
687 |
|
Datasheet | RAH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 850MHz ~ 970MHz | Whip, Right Angle | 1 | 1.9 | - | 2.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

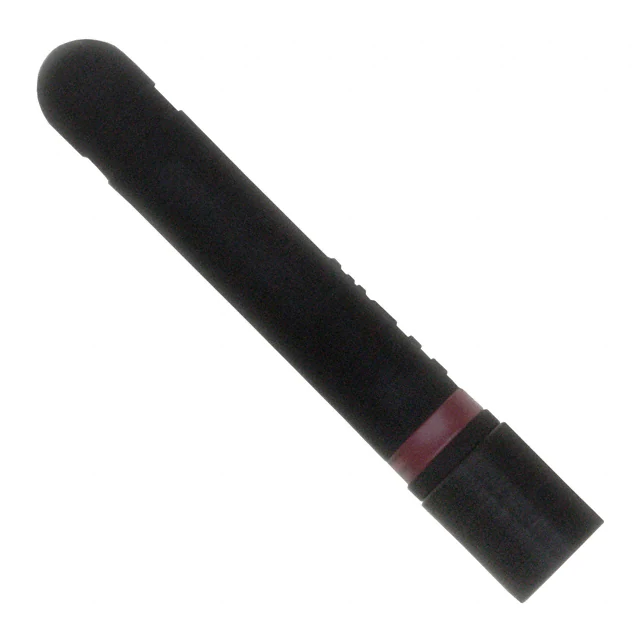

ANT-433-CW-RH-SMARF ANT 433MHZ WHIP STR SMA MALE |
424 |
|
Datasheet | RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 425MHz ~ 440MHz | Whip, Straight | 1 | 1.9 | - | -5.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-916-CW-RHRF ANT 916MHZ WHIP STR RP-SMA ML |
1,268 |
|
Datasheet | RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 935MHz | Whip, Straight | 1 | 1.9 | - | -1.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-LTE-MON-SMARF ANT 700MHZ/850MHZ WHIP TILT |
1,282 |
|
Datasheet | MON | Bag | Active | Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz,1.7GHz, 1.8GHz,1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz, 2.7GHz, 3.4GHz, 3.5GHz, 3.6GHz, 3.7GHz, 3.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 3.6GHz ~ 3.8GHz | Whip, Tilt/Swivel | 6 | 2.5, 3.5, 4.5, 3.5, 2.5, 2.75 | - | 4.75dBi, 2.75dBi, 1.75dBi, 1dBi, 4.85dBi, 5.5dBi | 15 W | - | SMA Male | - | - | - | Connector Mount | - | CAT-M1, Cellular, LTE, NB-IOT, 2G, 3G, 4G |
|
ANT-916-CW-HWRF ANT 916MHZ WHIP STR RP-SMA ML |
1,478 |
|
Datasheet | HW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Straight | 1 | 1.9 | - | 1.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-868-CW-HWRF ANT 868MHZ WHIP STR RP-SMA ML |
656 |
|
Datasheet | HW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Straight | 1 | 1.9 | - | 0dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.335" (135.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-2.4-CW-RCLRF ANT 2.4GHZ WHIP RA RP-SMA MAL |
1,903 |
|
Datasheet | RCL | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 1.7 | - | 1.1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
