RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B5771RF ANT 2.4GHZ BLADE SMA MALE SNP |
2,801 |
|
Datasheet | Picea | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Blade | 1 | 2 | - | 4.1dBi | - | - | SMA Male | - | - | - | Snap-In | 1.902" (48.30mm) | Bluetooth, Wi-Fi, WiMedia™, Zigbee™ |
|
1020B5743-01RF ANT 2.4GHZ MOLDED SMA MALE |
3,899 |
|
Datasheet | Flavus | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Molded | 1 | 1.5 | - | 4dBi | - | - | SMA Male | - | - | - | Snap-In | 0.236" (6.00mm) | Bluetooth, Wi-Fi, WiMedia™, Zigbee™ |
|
B5812-01RF ANT 800MHZ/900MHZ MOLDED SMA |
2,094 |
|
Datasheet | Flavus | Tray | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 900MHz, 1.8GHz, 1.9GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Molded | 4 | 1.2, 1.2, 1 | - | - | - | - | SMA Male | - | - | - | Snap-In | 0.152" (3.85mm) | GSM |
|
|
B5812-04RF ANT 800MHZ/900MHZ MOLDED SMA |
1,772 |
|
Datasheet | Flavus | Tray | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 900MHz, 1.8GHz, 1.9GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Molded | 4 | 1.2, 1.2, 1 | - | - | - | - | SMA Male | - | - | - | Snap-In | 0.152" (3.85mm) | GSM |
|

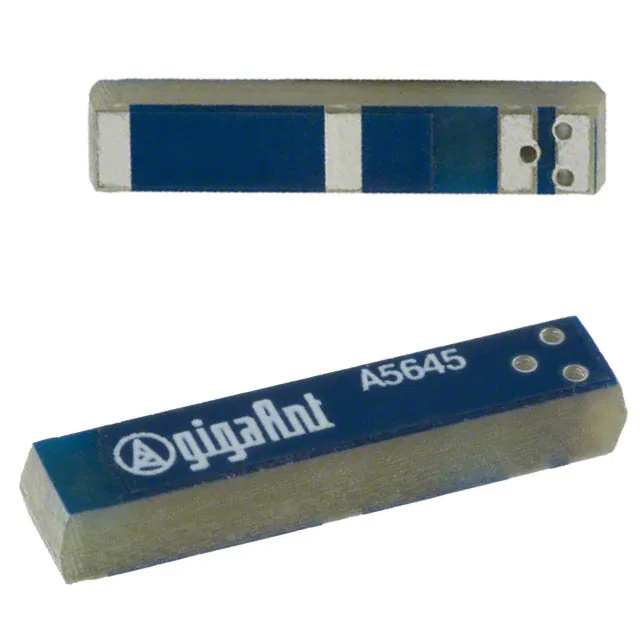

A5645RF ANT 2.4GHZ PCB TRACE SLDR SMD |
1,579 |
|
Datasheet | Mica | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.5 | - | 1.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Bluetooth, WiMedia™, WLAN, Zigbee™ |
|

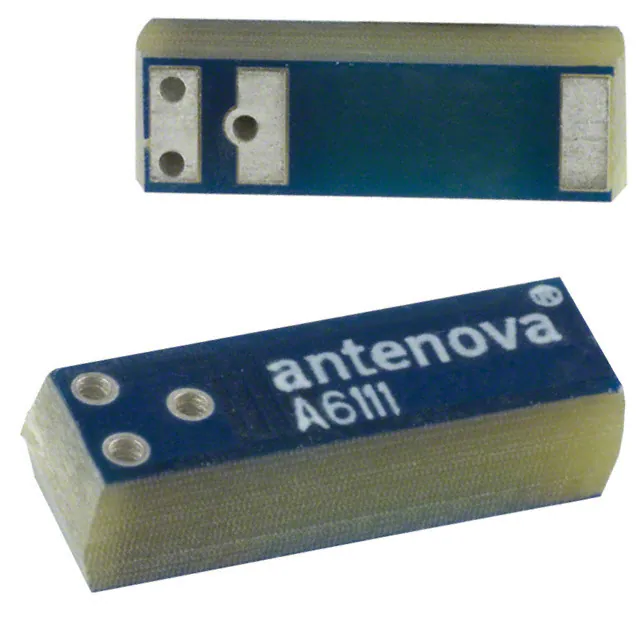

A6111RF ANT 2.4GHZ PCB TRACE SLDR SMD |
1,580 |
|
Datasheet | Comata | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Bluetooth, WiMedia™, WLAN, Zigbee™ |
|

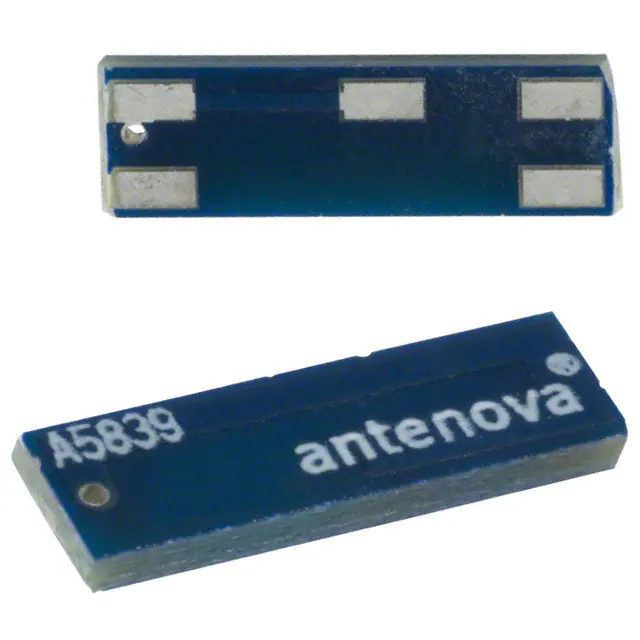

A5839RF ANT 2.4GHZ PCB TRACE SLDR SMD |
2,162 |
|
Datasheet | Rufa | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.8 | -11dB | 2.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
A5887RF ANT 2.4GHZ PCB TRACE SLDR SMD |
1,073 |
|
Datasheet | Rufa | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.8 | -11dB | 2.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, WLAN, Zigbee™ |
|
A6250RF ANT 2.4GHZ PCB TRACE SLDR SMD |
1,878 |
|
Datasheet | Impexa | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.9 | -10dB | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, WLAN, Zigbee™ |
|
A10137RF ANT 1.575GHZ PCB TRACE SLD |
3,576 |
|
Datasheet | RADIONOVA® | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | PCB Trace | 1 | 1.5 | -10dB | -0.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | GPS |
