RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPT2400DMNWRF ANT 2.45GHZ DOME N FEM CONN |
3,797 |
|
Datasheet | Shadow | Bulk | Active | Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 4.78dBi | 10 W | - | N Type Female | IP67 | - | - | Connector Mount | 2.624" (66.66mm) | 3G, 4G, DSRC, LTE, ISM, Wi-Fi |
|
TG.35.8113WRF ANT 700MHZ/850MHZ WHIP TILT |
3,640 |
|
Datasheet | APEX II | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 700MHz, 850MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz, 5.8GHz | 698MHz ~ 960MHz, 1.565GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz, 4.8GHz ~ 6GHz | Whip, Tilt | 10 | - | - | 4.42dBi, 1.59dBi, 3.15dBi, 2.7dBi, 4.93dBi, 4.43dBi, 2.55dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 8.740" (222.00mm) | CDMA, DCS, EDGE, GLONASS, GPRS, GPS, GSM, HSPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
|
NMOQ800BBASE / WHIP, UNITY, 806 - 896 MH |
3,771 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 4.500" (114.30mm) | - |
|
TG.30.8112WRF ANT 829MHZ/1.575GHZ WHIP STR |
3,874 |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.9GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 1.575GHz | Whip, Straight | 4 | - | - | 3dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 5.850" (148.60mm) | GPS, LTE |
|
SB800MPL12STEALTH BLADE, 806 - 896 MHZ, 12 |
4,412 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Blade | 1 | - | - | 2.14dBi | 3 W | Cable - 304.8mm | MPL | - | - | - | Adhesive, Glass | 5.200" (132.08mm) | - |
|
3938DRF ANT 2.45GHZ FLAT BAR MCX ADH |
4,122 |
|
Datasheet | 3938D | Box | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Flat Bar | 1 | 2 | - | 2dBi | - | Cable - 150mm | MCX | - | - | - | Adhesive | 0.025" (0.64mm) | Bluetooth, Wi-Fi |
|
|
YCGO014AASTACKED PATCH L1L5 GNSS 38X38 |
1,171 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.582GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | - | 1.35dBi, 2.24dBi | - | - | I-PEX-1 | - | - | - | Adhesive | 0.768" (19.50mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
W771N-AGDPURF ANT DOME N MALE PAN MT |
3,453 |
|
Datasheet | - | Bulk | Active | - | Wide Band | - | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 2 | 2 | - | 2dBi, 3dBi | - | - | N Type Male | - | - | - | Panel Mount | 3.067" (77.90mm) | - |
MAXMFT(S).jpg)
|
BMAXC24503RF ANT 2.55GHZ WHIP STR NMO MNT |
4,962 |
|
Datasheet | MAX BASE | Bulk | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.55GHz | 2.2GHz ~ 2.9GHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 100 W | - | - | - | - | - | NMO Mount | 5.250" (133.35mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LTE, Wi-Fi |
|
MA203.A.AB.035RF ANT 850MHZ/900MHZ MOD SMA ADH |
3,696 |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | 800MHz ~ 2.2GHz | Module | 5 | 2, 2.5 | - | 30dB | - | Cable - 3m, LNA | SMA Male (2) | IP65 | - | - | Adhesive | 0.425" (10.80mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, PCS, UMTS |
|
1357DRF ANT 1.575GHZ CER H.FL SMD |
3,591 |
|
Datasheet | 1357D | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Ceramic Patch | 1 | - | - | 0.5dBic | 50 W | Cable - 150mm, LNA, Filter | H.FL | - | - | - | Surface Mount | 0.228" (5.80mm) | GNSS, GPS |
|
NMOWB40CWIDE BAND LOW BAND, UNITY, 5 MHZ |
3,958 |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 70MHz | 40MHz ~ 50MHz | Whip, Straight | 1 | - | - | 2dBi | 150 W | - | - | - | - | - | Magnetic | 55.000" (139.70cm) | - |
|
|
LPT450NMOBLACK NMO TRANSIT ANTENNA, UNITY |
1,445 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Dome | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Base Mount | 4.500" (114.30mm) | - |
|
WMLPV800RF ANT 883MHZ DOME PANEL MNT |
4,847 |
|
Datasheet | Trooper | Bag | Active | - | UHF (300MHz ~ 1GHz) | 883MHz | 806MHz ~ 960MHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | - | IP67 | - | - | Panel Mount | 15.000" (381.00mm) | - |
|
710213RF ANT 875MHZ MOD SMA M SCREW |
3,236 |
|
Datasheet | SmartDisc | Box | Active | Cellular | Wide Band | 875MHz, 2.2GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 2 | 3 | - | 2.15dBi, 3.15dBi | 10 W | Cable - 500mm | SMA Male | IP67 | - | - | Screw Mount | 1.024" (26.00mm) | 2G, 3G, 4G, NB-IoT |
|
PCTMI2458-RPSMARF ANT 2.45GHZ DOME RP-SMA M |
2,927 |
|
Datasheet | PCTMI | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Dome | 2 | 2 | - | 2.2dBi, 4dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 1.693" (43.00mm) | 802.11a/b/n/ac, Bluetooth, Wi-Fi |
|

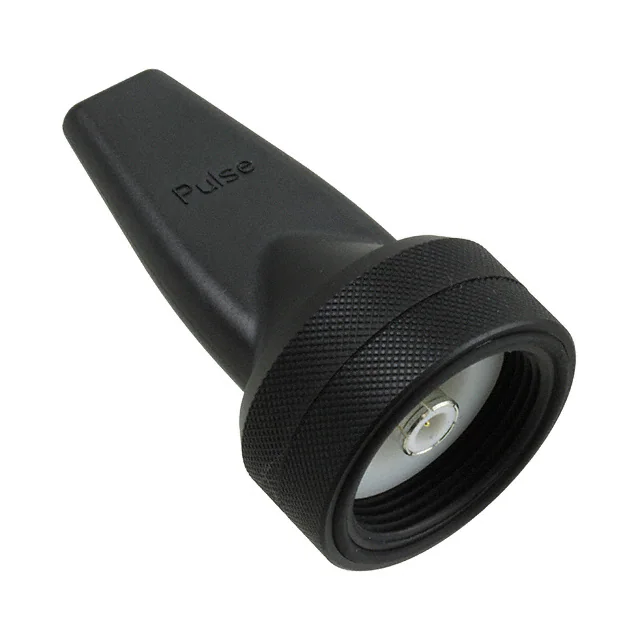

SLPT4900NMOHFRF ANT 5.4GHZ WHIP STR NMO BASE |
1,826 |
|
Datasheet | Shadow | Bulk | Active | Cellular, WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Dome | 1 | 2 | - | 5.5dBi | 10 W | - | NMO | IP67 | - | - | Base Mount | 2.500" (63.50mm) | LTE, WLAN |
|

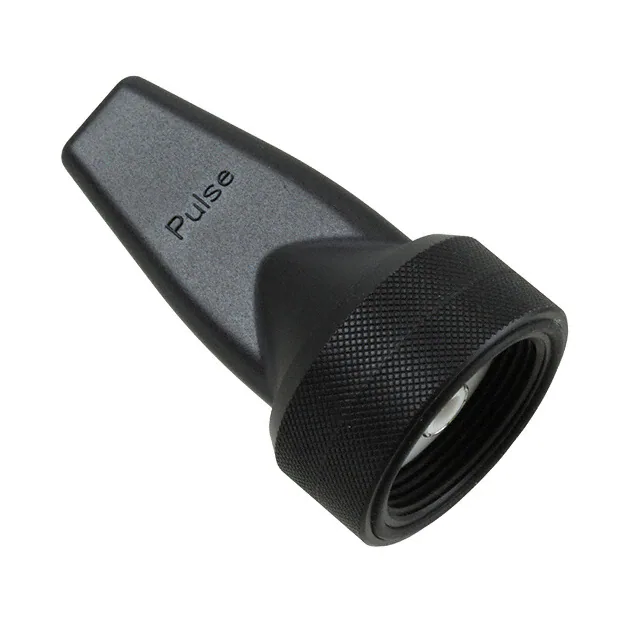

SLPT2400NMOHFRF ANT 2.4GHZ WHIP STR NMO BASE |
1,978 |
|
Datasheet | Shadow | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 4.3dBi | 10 W | - | NMO | IP67 | - | - | Base Mount | 2.500" (63.50mm) | LTE, WLAN |
|
|
LPT450NMOWWHITE NMO TRANSIT ANTENNA, UNITY |
1,526 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Dome | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Base Mount | 4.500" (114.30mm) | - |
|
X1005243-LGA2SA10A1ANTENNA GPS-GLONASS/LTE |
100 |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 5 | 2, 3, 3.7 | - | 2.7dBi, 1dBi, 1dBi, 1.2dBi, 2.1dBi | - | Cable - 1m, LNA | SMA Male (2) | IPX5 | - | - | Adhesive | 0.413" (10.50mm) | GLONASS, GPS, LTE |
