RF Amplifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | P1dB | Gain | Noise Figure | RF Type | Voltage - Supply | Current - Supply | Test Frequency | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNA-20-00100600-16-10PIC RF AMP VSAT 100MHZ-6GHZ MOD |
4,902 |
|
Datasheet | LNA | Module, SMA Connectors | Box | Active | 100MHz ~ 6GHz | 10dBm | 20dB | 1.6dB | VSAT | 15V | 150mA | 100MHz ~ 6GHz | - | - | Connector Mount | Module |
|
LNA-30-00100600-14-10PIC RF AMP VSAT 100MHZ-6GHZ MOD |
4,261 |
|
Datasheet | LNA | Module, SMA Connectors | Box | Active | 100MHz ~ 6GHz | 10dBm | 30dB | 1.4dB | VSAT | 15V | 200mA | 100MHz ~ 6GHz | - | - | Connector Mount | Module |
|
|
LNA-30-00100800-15-10PIC RF AMP VSAT 100MHZ-8GHZ MOD |
1,601 |
|
Datasheet | LNA | Module, SMA Connectors | Box | Active | 100MHz ~ 8GHz | 10dBm | 30dB | 1.5dB | VSAT | 15V | 200mA | 100MHz ~ 8GHz | - | - | Connector Mount | Module |
|

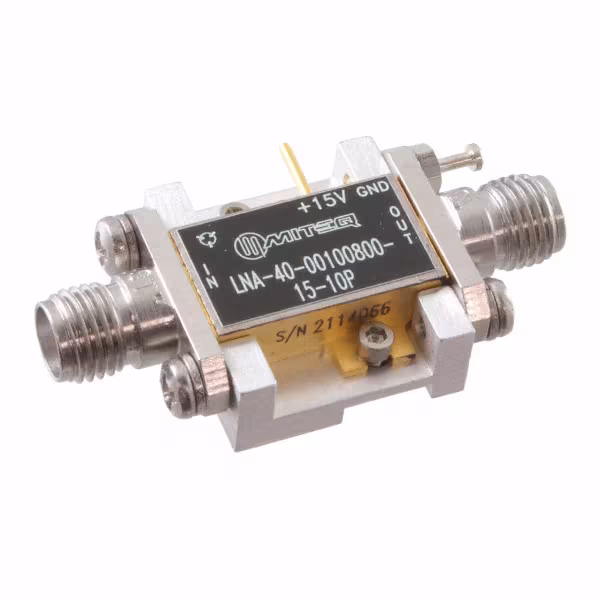

LNA-40-00100800-15-10PIC RF AMP VSAT 100MHZ-8GHZ MOD |
2,220 |
|
Datasheet | LNA | Module, SMA Connectors | Box | Active | 100MHz ~ 8GHz | 10dBm | 40dB | 1.5dB | VSAT | 15V | 250mA | 100MHz ~ 8GHz | - | - | Connector Mount | Module |
|
|
LNA-20-00101200-19-10PIC RF AMP VSAT 100MHZ-12GHZ MOD |
1,301 |
|
Datasheet | LNA | Module, SMA Connectors | Box | Active | 100MHz ~ 12GHz | 10dBm | 20dB | 1.9dB | VSAT | 15V | 150mA | 100MHz ~ 12GHz | - | - | Connector Mount | Module |
|

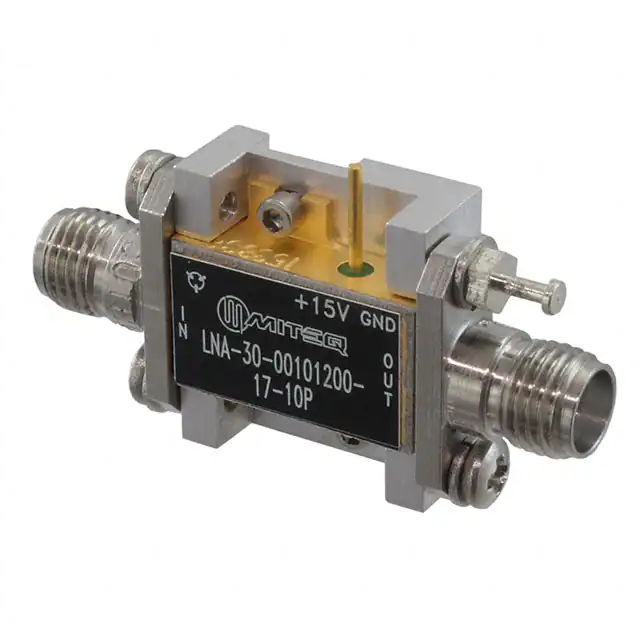

LNA-30-00101200-17-10PIC RF AMP VSAT 100MHZ-12GHZ MOD |
2,845 |
|
Datasheet | LNA | Module, SMA Connectors | Box | Active | 100MHz ~ 12GHz | 10dBm | 30dB | 1.7dB | VSAT | 15V | 200mA | 100MHz ~ 12GHz | - | - | Connector Mount | Module |
|

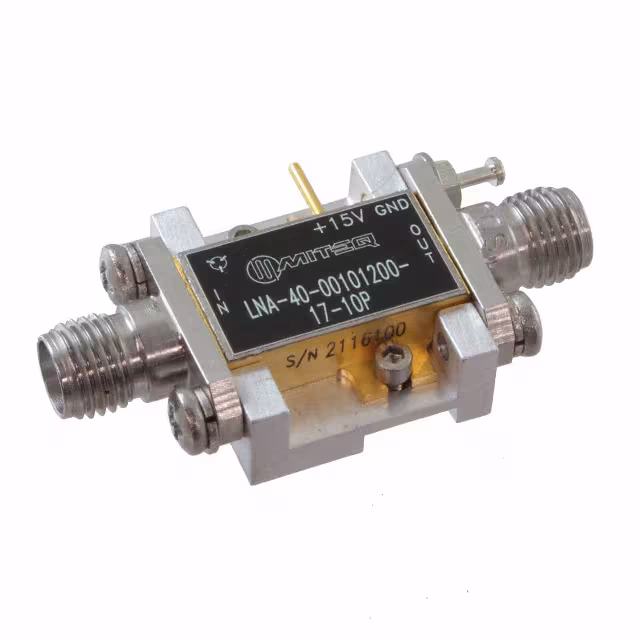

LNA-40-00101200-17-10PIC RF AMP VSAT 100MHZ-12GHZ MOD |
1,321 |
|
Datasheet | LNA | Module, SMA Connectors | Box | Active | 100MHz ~ 12GHz | 10dBm | 40dB | 1.7dB | VSAT | 15V | 250mA | 100MHz ~ 12GHz | - | - | Connector Mount | Module |
|
|
LNA-20-00101800-26-10PIC RF AMP VSAT 100MHZ-18GHZ MOD |
1,069 |
|
Datasheet | LNA | Module, SMA Connectors | Box | Active | 100MHz ~ 18GHz | 10dBm | 20dB | 2.6dB | VSAT | 15V | 200mA | 100MHz ~ 18GHz | - | - | Connector Mount | Module |
|
LNA-30-00101800-25-10PIC RF AMP VSAT 100MHZ-18GHZ MOD |
4,384 |
|
Datasheet | LNA | Module, SMA Connectors | Box | Active | 100MHz ~ 18GHz | 10dBm | 30dB | 2.5dB | VSAT | 15V | 250mA | 100MHz ~ 18GHz | - | - | Connector Mount | Module |
|

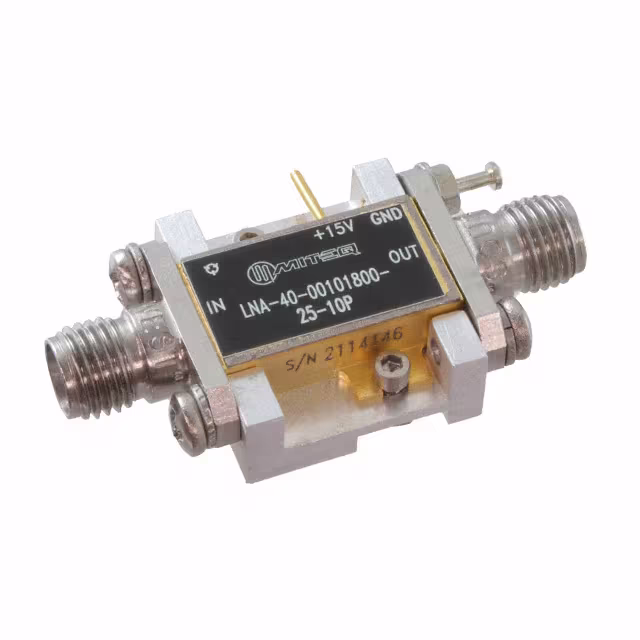

LNA-40-00101800-25-10PIC RF AMP VSAT 100MHZ-18GHZ MOD |
1,714 |
|
Datasheet | LNA | Module, SMA Connectors | Box | Active | 100MHz ~ 18GHz | 10dBm | 40dB | 2.5dB | VSAT | 15V | 300mA | 100MHz ~ 18GHz | - | - | Connector Mount | Module |
