Resistor Networks, Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit Type | Resistance (Ohms) | Tolerance | Number of Resistors | Resistor Matching Ratio | Resistor-Ratio-Drift | Number of Pins | Power Per Element | Temperature Coefficient | Operating Temperature | Grade | Qualification | Applications | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
745C102472JPRES ARRAY 8 RES 4.7K OHM 2512 |
0 |
|
Datasheet | 745 | 2512 (6432 Metric), Concave, Long Side Terminals | Tape & Reel (TR) | Active | Bussed | 4.7k | ±5% | 8 | - | - | 10 | 63mW | ±250ppm/°C | -55°C ~ 125°C | - | - | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.252" L x 0.122" W (6.40mm x 3.10mm) | 0.028" (0.70mm) |
|

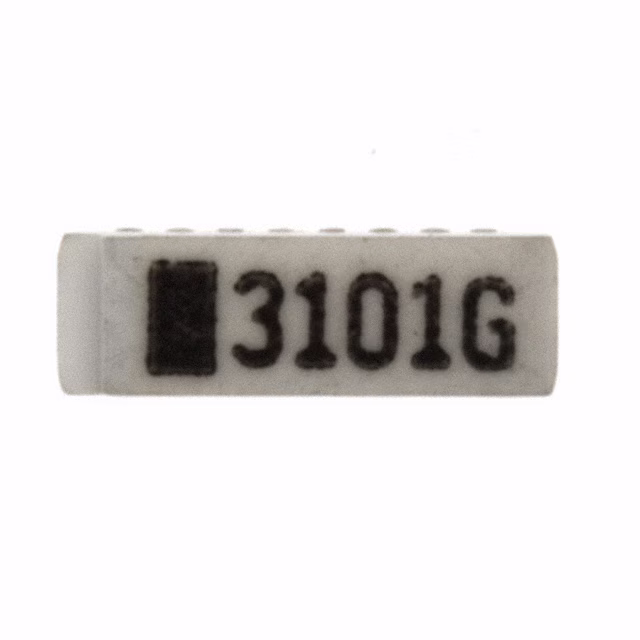

753083101GTRRES ARRAY 4 RES 100 OHM 8SRT |
0 |
|
Datasheet | 753 | 8-SRT | Tape & Reel (TR) | Obsolete | Isolated | 100 | ±2% | 4 | - | - | 8 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.245" L x 0.080" W (6.22mm x 2.03mm) | 0.100" (2.53mm) |
|

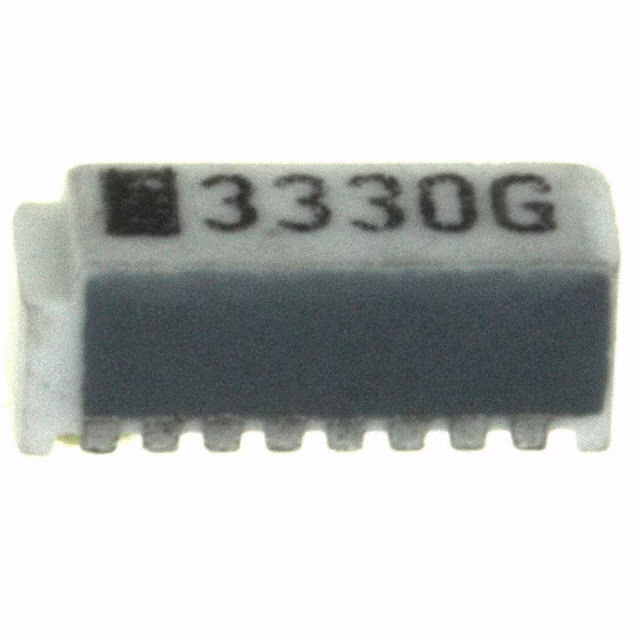

753083330GTRRES ARRAY 4 RES 33 OHM 8SRT |
0 |
|
Datasheet | 753 | 8-SRT | Tape & Reel (TR) | Obsolete | Isolated | 33 | ±2% | 4 | - | - | 8 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.245" L x 0.080" W (6.22mm x 2.03mm) | 0.100" (2.53mm) |
|

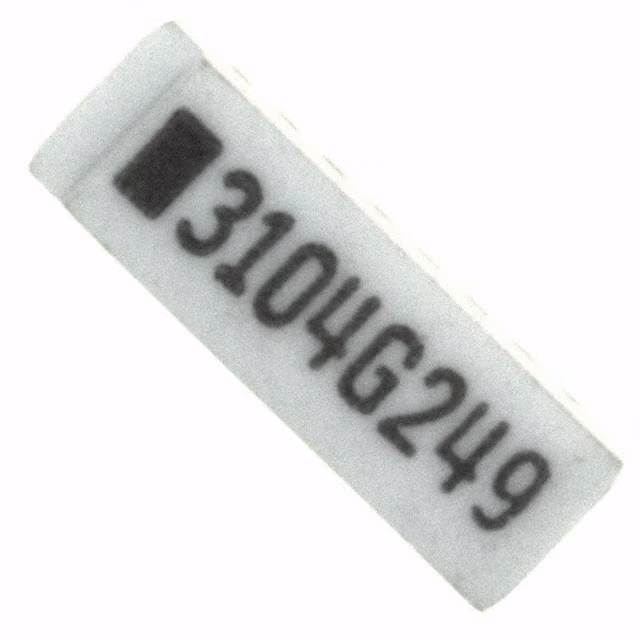

753083104GTRRES ARRAY 4 RES 100K OHM 8SRT |
0 |
|
Datasheet | 753 | 8-SRT | Tape & Reel (TR) | Obsolete | Isolated | 100k | ±2% | 4 | - | - | 8 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.245" L x 0.080" W (6.22mm x 2.03mm) | 0.100" (2.53mm) |
|
RT1404B7TR7RES NTWRK 18 RES 25 OHM 36LBGA |
0 |
|
- |
ClearONE™ | 36-LBGA | Tape & Reel (TR) | Obsolete | Dual Terminator | 25 | ±1% | 18 | - | - | 36 | 50mW | ±200ppm/°C | -55°C ~ 125°C | - | - | DDR SDRAM | Surface Mount | 36-BGA (9x4) | 0.354" L x 0.157" W (9.00mm x 4.00mm) | 0.053" (1.34mm) |
|
|
752161102GRES ARRAY 14 RES 1K OHM 16DRT |
0 |
|
Datasheet | 752 | 16-DRT | Bulk | Obsolete | Bussed | 1k | ±2% | 14 | - | - | 16 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.465" L x 0.080" W (11.81mm x 2.03mm) | 0.100" (2.53mm) |
|

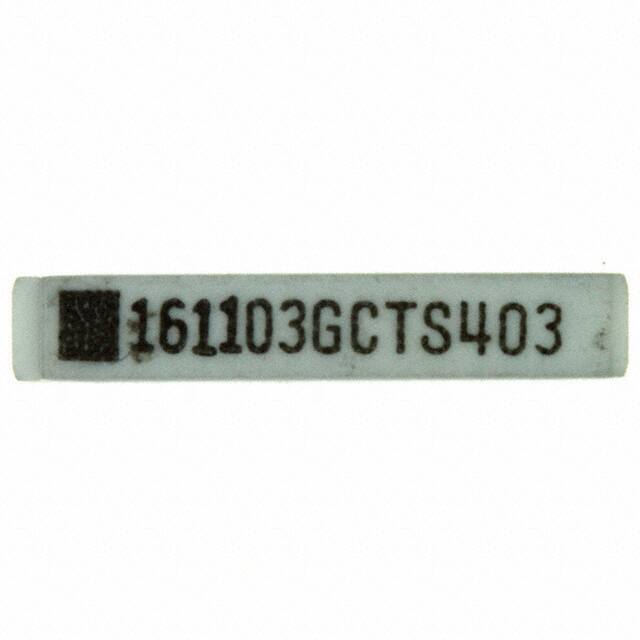

752161103GRES ARRAY 14 RES 10K OHM 16DRT |
0 |
|
Datasheet | 752 | 16-DRT | Bulk | Obsolete | Bussed | 10k | ±2% | 14 | - | - | 16 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.465" L x 0.080" W (11.81mm x 2.03mm) | 0.100" (2.53mm) |
|
752161473GRES ARRAY 14 RES 47K OHM 16DRT |
0 |
|
Datasheet | 752 | 16-DRT | Bulk | Obsolete | Bussed | 47k | ±2% | 14 | - | - | 16 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.465" L x 0.080" W (11.81mm x 2.03mm) | 0.100" (2.53mm) |
|
752161104GRES ARRAY 14 RES 100K OHM 16DRT |
0 |
|
Datasheet | 752 | 16-DRT | Bulk | Obsolete | Bussed | 100k | ±2% | 14 | - | - | 16 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.465" L x 0.080" W (11.81mm x 2.03mm) | 0.100" (2.53mm) |
|

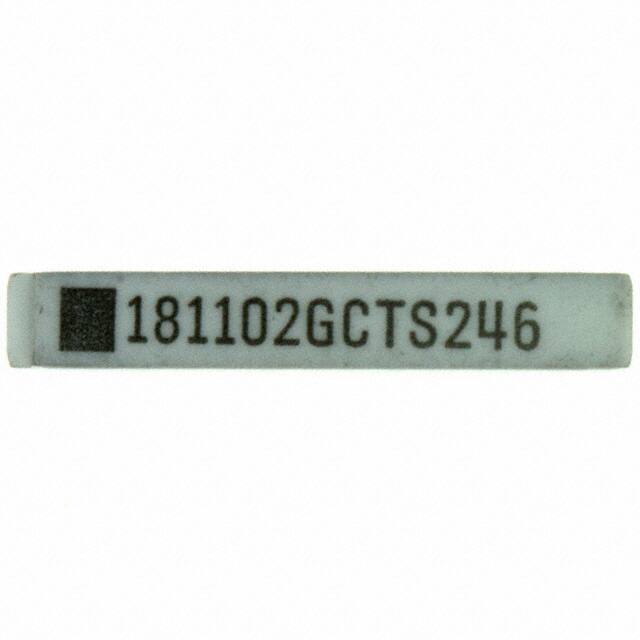

752181102GRES ARRAY 16 RES 1K OHM 18DRT |
0 |
|
Datasheet | 752 | 18-DRT | Bulk | Obsolete | Bussed | 1k | ±2% | 16 | - | - | 18 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.515" L x 0.080" W (13.08mm x 2.03mm) | 0.100" (2.53mm) |
