Resistor Networks, Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit Type | Resistance (Ohms) | Tolerance | Number of Resistors | Resistor Matching Ratio | Resistor-Ratio-Drift | Number of Pins | Power Per Element | Temperature Coefficient | Operating Temperature | Grade | Qualification | Applications | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

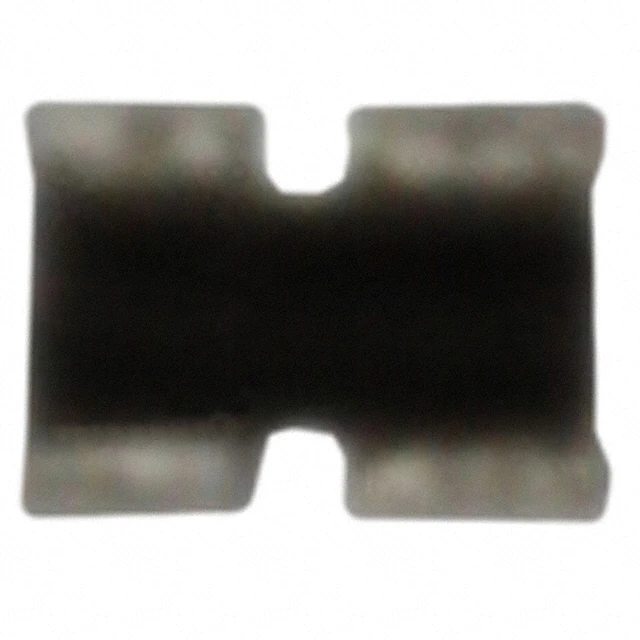

740X043101JPRES ARRAY 2 RES 100 OHM 0302 |
0 |
|
Datasheet | 740 | 0302 (0805 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 100 | ±5% | 2 | - | - | 4 | 31mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.018" (0.45mm) |
|
740X043561JPRES ARRAY 2 RES 560 OHM 0302 |
0 |
|
Datasheet | 740 | 0302 (0805 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 560 | ±5% | 2 | - | - | 4 | 31mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.018" (0.45mm) |
|

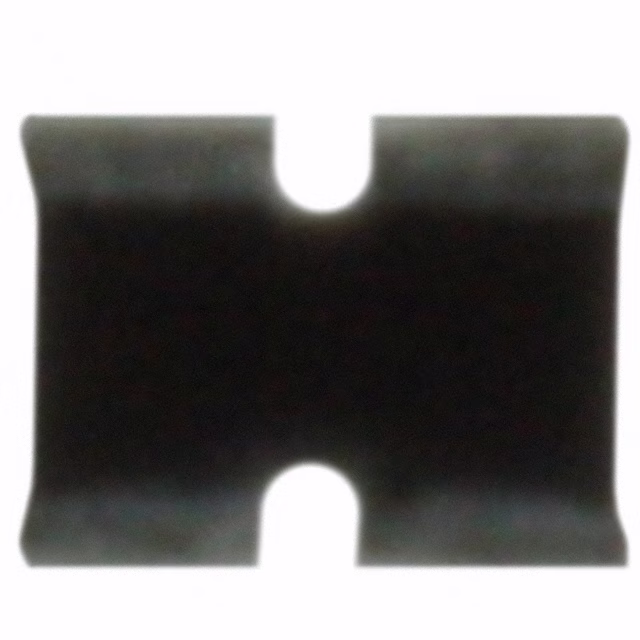

740X043102JPRES ARRAY 2 RES 1K OHM 0302 |
0 |
|
Datasheet | 740 | 0302 (0805 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 1k | ±5% | 2 | - | - | 4 | 31mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.018" (0.45mm) |
|

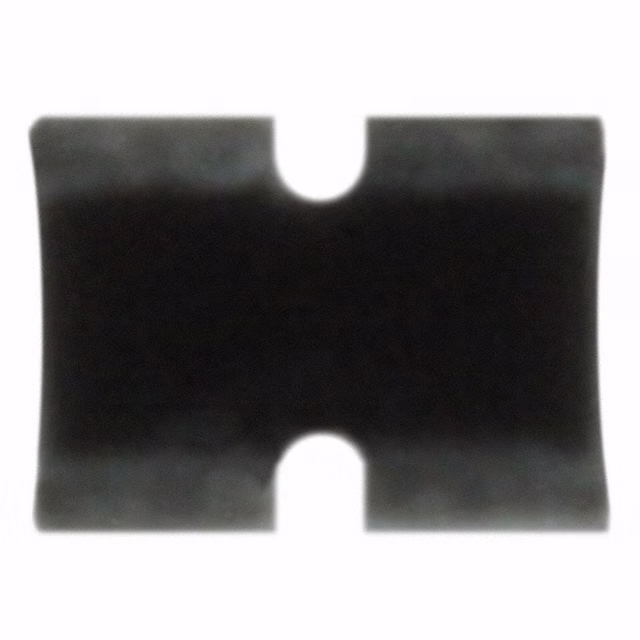

740X043472JPRES ARRAY 2 RES 4.7K OHM 0302 |
0 |
|
Datasheet | 740 | 0302 (0805 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 4.7k | ±5% | 2 | - | - | 4 | 31mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.018" (0.45mm) |
|

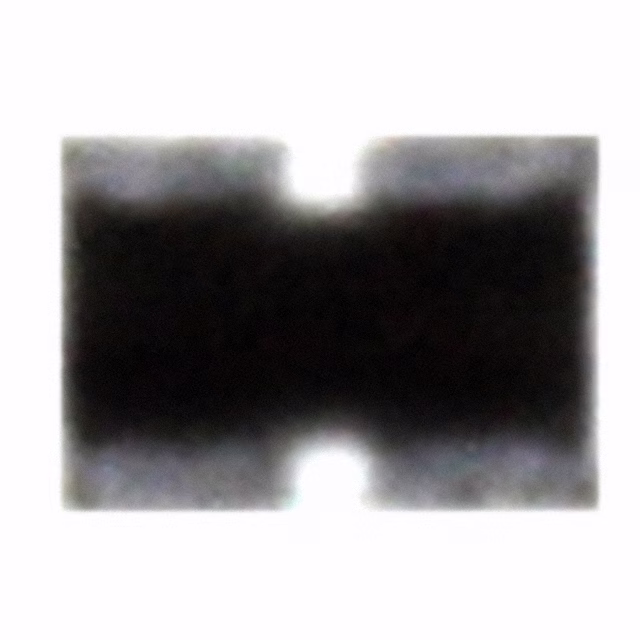

740X043103JPRES ARRAY 2 RES 10K OHM 0302 |
0 |
|
Datasheet | 740 | 0302 (0805 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 10k | ±5% | 2 | - | - | 4 | 31mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.018" (0.45mm) |
|
740X043000XPRES ARRAY 2 RES ZERO OHM 0302 |
0 |
|
Datasheet | 740 | 0302 (0805 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 0.0 | Jumper | 2 | - | - | 4 | 31mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.018" (0.45mm) |
|
|
740X043104JPRES ARRAY 2 RES 100K OHM 0302 |
0 |
|
Datasheet | 740 | 0302 (0805 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 100k | ±5% | 2 | - | - | 4 | 31mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.018" (0.45mm) |
|
|
740X043124JPRES ARRAY 2 RES 120K OHM 0302 |
0 |
|
Datasheet | 740 | 0302 (0805 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 120k | ±5% | 2 | - | - | 4 | 31mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.018" (0.45mm) |
|
|
740X043151JPRES ARRAY 2 RES 150 OHM 0302 |
0 |
|
Datasheet | 740 | 0302 (0805 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 150 | ±5% | 2 | - | - | 4 | 31mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.018" (0.45mm) |
|
|
740X043154JPRES ARRAY 2 RES 150K OHM 0302 |
0 |
|
Datasheet | 740 | 0302 (0805 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 150k | ±5% | 2 | - | - | 4 | 31mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.018" (0.45mm) |
