Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FES8GT-E3/45DIODE GEN PURP 400V 8A TO220AC |
2,250 |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 400 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 400 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
|
NS8KT-E3/45DIODE GEN PURP 800V 8A TO220AC |
9,355 |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 800 V | 8A | 1.1 V @ 8 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 800 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
|
BYW29-100-E3/45DIODE GEN PURP 100V 8A TO220AC |
6,024 |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 100 V | 8A | 1.3 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 10 µA @ 100 V | 45pF @ 4V, 1MHz | - | - | Through Hole | TO-220AC | -65°C ~ 150°C |
|
VI30100S-E3/4WDIODE SCHOTTKY 100V 30A TO262AA |
4,214 |
|
Datasheet | TMBS® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | Schottky | 100 V | 30A | 910 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | - | - | - | Through Hole | TO-262AA | -40°C ~ 150°C |
|
VS-8ETH06FP-N3DIODE GP 600V 8A TO220-2FP |
7,858 |
|
Datasheet | FRED Pt® | TO-220-2 Full Pack | Tube | Active | Standard | 600 V | 8A | 2.4 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 50 µA @ 600 V | - | - | - | Through Hole | TO-220-2 Full Pack | -65°C ~ 175°C |
;;3.jpg)
|
VS-C4PU3006L-N3DIODE GEN PURP 600V 15A TO247AD |
4,591 |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Active | Standard | 600 V | 15A | 1.55 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 15 µA @ 600 V | - | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
VS-1N1202ADIODE GEN PURP 200V 12A DO203AA |
6,566 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 200 V | 12A | 1.35 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 2 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|

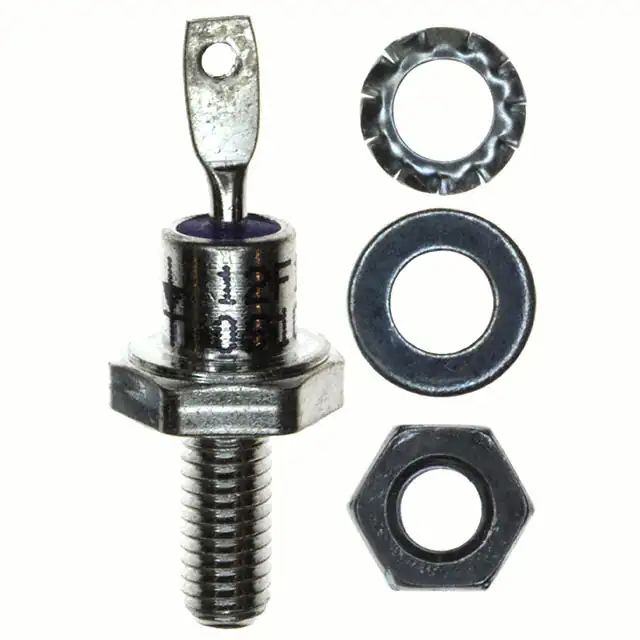

VS-12F10DIODE GEN PURP 100V 12A DO203AA |
6,146 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 100 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-70HF10DIODE GEN PURP 100V 70A DO203AB |
4 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 70A | 1.35 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|

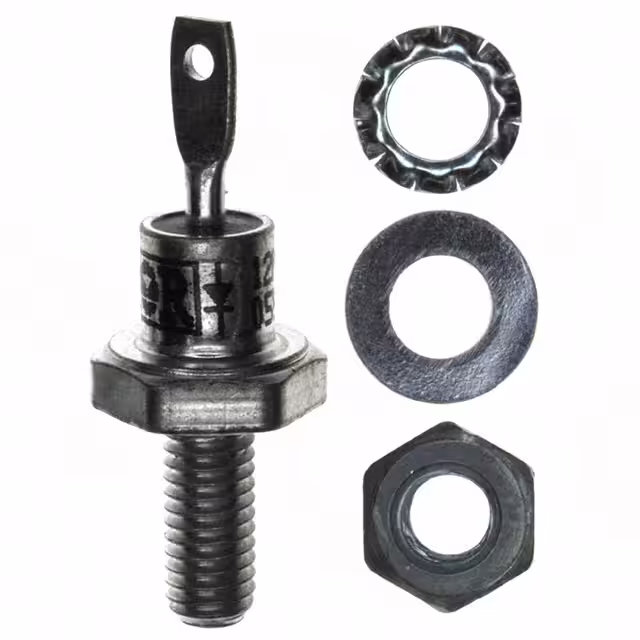

VS-12F100DIODE GEN PURP 1KV 12A DO203AA |
4,368 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 1000 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1000 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
