Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V15PM6-M3/HDIODE SCHOTTKY 60V 15A TO277A |
875 |
|
Datasheet | eSMP®, TMBS® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 60 V | 15A | 640 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.2 mA @ 60 V | 2300pF @ 4V, 1MHz | - | - | Surface Mount | TO-277A (SMPC) | -40°C ~ 175°C |
|
VS-6EWH06FN-M3DIODE GEN PURP 600V 6A DPAK |
530 |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Standard | 600 V | 6A | 2.1 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 27 ns | 50 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -65°C ~ 175°C |
|
VS-ETX0806FP-M3DIODE GP 600V 8A TO220-2FP |
90 |
|
Datasheet | FRED Pt® | TO-220-2 Full Pack | Bulk | Active | Standard | 600 V | 8A | 3.4 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 17 ns | 30 µA @ 600 V | - | - | - | Through Hole | TO-220-2 Full Pack | -65°C ~ 175°C |
|
FES8JT-E3/45DIODE GEN PURP 600V 8A TO220AC |
77 |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 600 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
RGP30D-E3/73DIODE GEN PURP 200V 3A DO201AD |
1,071 |
|
Datasheet | SUPERECTIFIER® | DO-201AD, Axial | Cut Tape (CT) | Active | Standard | 200 V | 3A | 1.3 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 5 µA @ 200 V | - | - | - | Through Hole | DO-201AD | -65°C ~ 175°C |
|
|
VS-MBR1035-M3DIODE SCHOTTKY 35V 10A TO220AC |
29 |
|
Datasheet | - | TO-220-2 | Tube | Active | Schottky | 35 V | 10A | 840 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 35 V | 600pF @ 5V, 1MHz | - | - | Through Hole | TO-220AC | -65°C ~ 150°C |
|
VS-E5TH3006S2L-M3DIODE GEN PURP 600V 30A TO263AB |
96 |
|
Datasheet | FRED Pt® G5 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 41 ns | 20 µA @ 600 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 175°C |
|
VS-16F20DIODE GEN PURP 200V 16A DO203AA |
91 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 200 V | 16A | 1.23 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

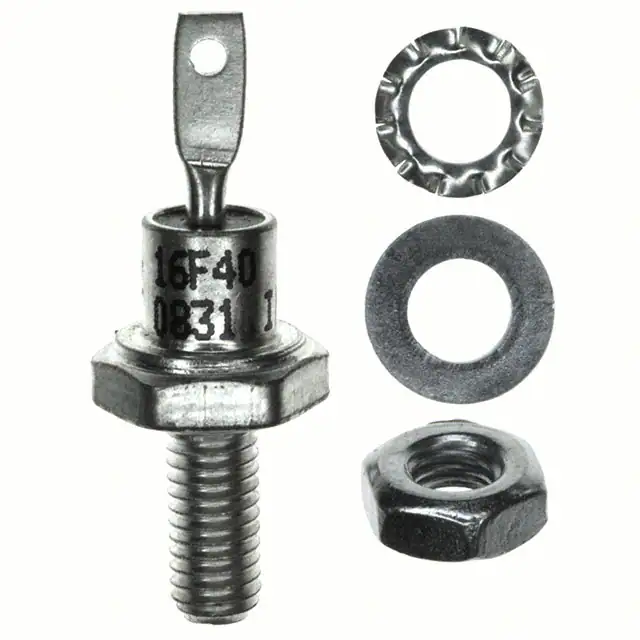

VS-16F40DIODE GEN PURP 400V 16A DO203AA |
88 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 16A | 1.23 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-16FR10DIODE GEN PURP 100V 16A DO203AA |
31 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 16A | 1.23 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
