Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
286-826DIODE MODULE GEN PURP 4000V 3A |
11 |
|
Datasheet | - | Module | Box | Active | 6 Independent | Standard | 4000 V | 3A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -25°C ~ 40°C | - | - | Socketable | - |
|
286-809DIODE MODULE GEN PURP 1000V 1A |
1 |
|
Datasheet | - | Module | Box | Active | 1 Pair Common Anode | Standard | 1000 V | 1A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -25°C ~ 40°C | - | - | Socketable | - |
|
|
286-803DIODE MODULE GEN PURP 1000V 1A |
7,150 |
|
Datasheet | - | Module | Box | Active | 1 Pair Common Anode | Standard | 1000 V | 1A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -25°C ~ 40°C | - | - | Socketable | - |
|
|
286-805DIODE MODULE GEN PURP 1000V 1A |
9,431 |
|
Datasheet | - | Module | Box | Active | 1 Pair Common Anode | Standard | 1000 V | 1A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -25°C ~ 40°C | - | - | Socketable | - |
|
|
286-807DIODE MODULE GEN PURP 1000V 1A |
4,868 |
|
Datasheet | - | Module | Box | Active | 1 Pair Common Anode | Standard | 1000 V | 1A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -25°C ~ 40°C | - | - | Socketable | - |
|

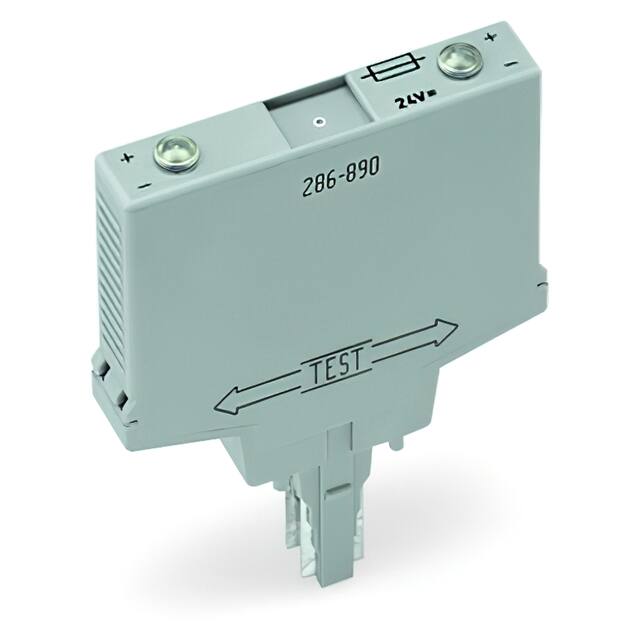

286-890DIODE MODULE GEN PURP 4000V 6.3A |
8,760 |
|
Datasheet | - | Module | Box | Active | 1 Pair Series Connection | Standard | 4000 V | 6.3A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -25°C ~ 40°C | - | - | Socketable | - |
|
|
286-891DIODE MODULE GEN PURP 4000V 6.3A |
5,785 |
|
Datasheet | - | Module | Box | Active | 1 Pair Series Connection | Standard | 4000 V | 6.3A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -25°C ~ 40°C | - | - | Socketable | - |
|

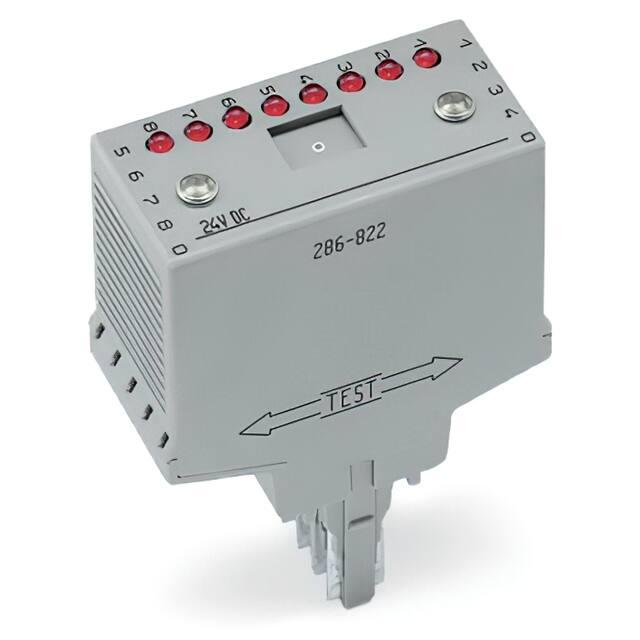

286-822DIODE MODULE GP 4000V 5.1MA |
6,690 |
|
Datasheet | - | Module | Box | Active | 1 Pair Common Cathode | Standard | 4000 V | 5.1mA | - | Small Signal =< 200mA (Io), Any Speed | - | - | -25°C ~ 40°C | - | - | Socketable | - |
